DS-2CD1143G0-I(4mm)(C)

DS-2CD1143G0-I  4 MP Fixed Dome Network Camera                       High quality imaging with 4 MP resolution   Efficient H.265+ compression technology   Clear imaging even with strong back lighting due to 120 dB  WDR     Water and dust resistant (IP67) and vandal resistant (IK10)   EXIR 2.0: advanced infrared technology with long IR range               Specification  Camera  Image Sensor 1/3" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)  Shutter Speed 1/3 s to 1/100, 000 s  Slow Shutter Yes  Day &Night IR cut filter  Wide Dynamic Range 120 dB  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°  DNR 3D DNR  Lens  Lens 2.8 mm, 4 mm  Aperture F2.0  Focus Fixed  FOV  2.8 mm, horizontal FOV 98°, vertical FOV 53°, diagonal FOV 115°  4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91°  Lens Mount M12  Illuminator  IR Range Up to 30 m  Wavelength 850 nm  Video  Max. Resolution 2560 x 1440  Video Compression  Main stream: H.265/H.264  Sub-stream: H.265/H.264/MJPEG  H.264 Type Baseline Profile/Main Profile...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CD1143G2-I(4mm)

Ersatzproduktcode: 311320711

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

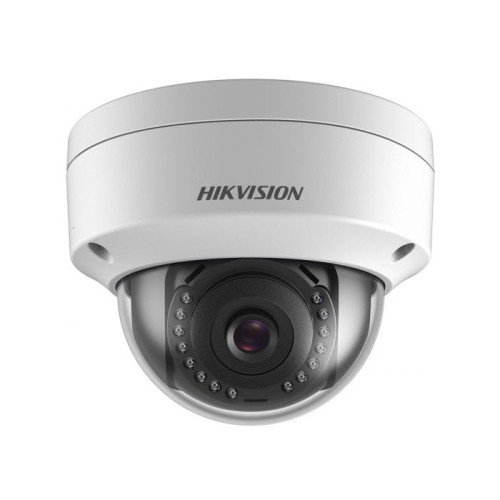

DS-2CD1143G0-I
4 MP Fixed Dome Network Camera










 High quality imaging with 4 MP resolution
 Efficient H.265+ compression technology
 Clear imaging even with strong back lighting due to 120 dB
WDR

 Water and dust resistant (IP67) and vandal resistant (IK10)
 EXIR 2.0: advanced infrared technology with long IR range






 Specification
Camera
Image Sensor 1/3" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Day &Night IR cut filter
Wide Dynamic Range 120 dB
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°
DNR 3D DNR
Lens
Lens 2.8 mm, 4 mm
Aperture F2.0
Focus Fixed
FOV
2.8 mm, horizontal FOV 98°, vertical FOV 53°, diagonal FOV 115°
4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91°
Lens Mount M12
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Video
Max. Resolution 2560 x 1440
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-Set
Region of Interest 1 fixed region for main stream
Image Enhancement HLC, BLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client
software or web browser
Day/Night Switch Auto/Schedule/Day/Night
Main Stream Max. Frame Rate
50Hz: 20 fps (2560 x 1440)
25 fps (2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 20 fps (2560 x 1440)
30 fps (2304 x 1296, 1920 x 1080, 1280 x 720)
Sub-stream Max. Frame Rate
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP,
IGMP, QoS, IPv6, UDP, Bonjour
API Open Network Video Interface (Profile S), ISAPI, SDK



Simultaneous Live View Up to 6 channels
User/Host Up to 32 users, 3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, exception (network disconnected, IP address
conflict, illegal login, HDD error)
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Approval
Impact Protection IK10TVS 2000V lightning protection, surge protection and voltage transient protection
Compression Standard
H.264+ Main stream supports
H.265+ Main stream supports
General
Firmware Version V5.5.111
Web Client Language English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE: 802.3af, Class 3
Material Aluminum alloy body
Dimensions
Camera: Ø111 mm x 82.4 mm (Ø4.4" x 3.2")
With package: 134 mm x 134 mm x 108 mm (5.3" x 5.3" x 4.3")
Weight
Camera: approx. 360 g (0.8 lb.)
With package: approx. 560 g (1.2 lb.)
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W
PoE (802.3af, 36 V to 57 V), 0.20 A to 0.15 A, max. 6.5 W
Interface Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)








 Available Model
DS-2CD1143G0-I (2.8/4mm)



 Dimension



 Accessory
 Optional
DS-1280ZJ-DM18
Junction Box
DS-1276ZJ-SUS
Corner Mount
DS-1258ZJ
Wall Mount
DS-1272ZJ-110
Wall Mount
DS-1250ZJ
Rain Shade



DS-1275ZJ-SUS
Vertical Pole Mount
DS-1272ZJ-110B
Wall Mount
DS-1271ZJ-110
Pendant Mount
DS-1259ZJ
Inclined Ceiling Mount













050511120201211
