DS-2CD1153G0-I(2.8mm)(B)

DS-2CD1153G0-I  5 MP Fixed Dome Network Camera                   High quality imaging with 5 MP resolution   Efficient H.265+ compression technology   Clear imaging even with strong back lighting due to 120 dB  WDR     Water and dust resistant (IP67) and vandal resistant (IK10)   EXIR 2.0: advanced infrared technology with long IR range                   Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Max. Resolution 2560 x 1920  Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°  Lens  Lens Type Fixed focal lens, 2.8 and 4 mm optional  Focal Length & FOV  2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0°  4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°  Lens Mount M12  Iris Type Fixed  Aperture F2.0  Illuminator  Supplement Light Type IR  Supplement Light Range Up to 30 m  IR Wavelength 850 nm  Video  Main Stream  50 Hz: 20 fps (2560 x 1920)   25 fps (2560 x 1440, 1920 x ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CD1153G0-I(2.8mm)(C)

Ersatzproduktcode: 311317382

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CD1153G0-I

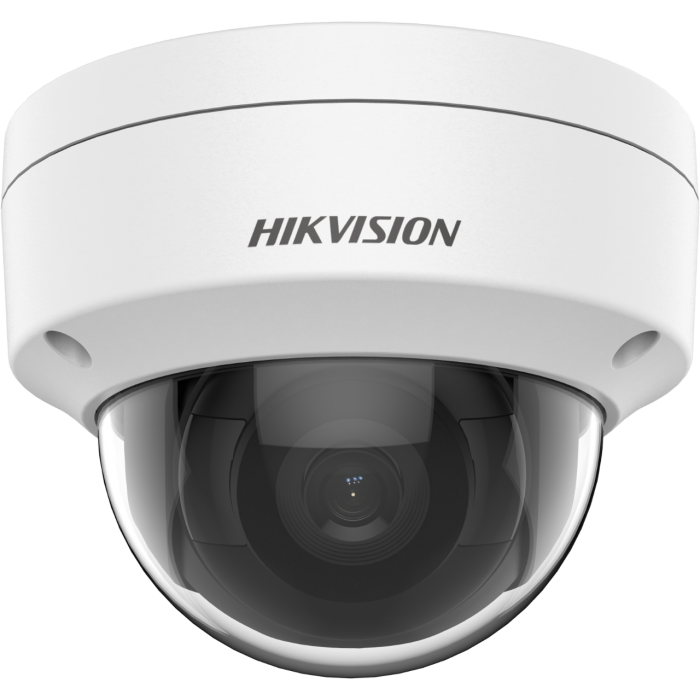

5 MP Fixed Dome Network Camera








 High quality imaging with 5 MP resolution
 Efficient H.265+ compression technology
 Clear imaging even with strong back lighting due to 120 dB
WDR

 Water and dust resistant (IP67) and vandal resistant (IK10)
 EXIR 2.0: advanced infrared technology with long IR range








 Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 2560 x 1920
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0°
4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°
Lens Mount M12
Iris Type Fixed
Aperture F2.0
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
IR Wavelength 850 nm
Video
Main Stream
50 Hz: 20 fps (2560 x 1920)
25 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
60 Hz: 20 fps (2560 x 1920)
30 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)
60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Region of Interest (ROI) 1 fixed region for main stream
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user
3 user levels: administrator, operator, and user
Client iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+




Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client
software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event Motion detection, video tampering, exception
Linkage Upload to FTP, notify surveillance center, send email
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension Ø110.8 mm x 84.7 mm (4.4" x 3.3")
Package Dimension 134 mm x 134 mm x 108 mm (5.3" x 5.3" x 4.3")
Weight Approx. 520 g (1.1 lb.)
With Package Weight Approx. 720 g (1.6 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Approval
EMC
FCC SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN
50130-4: 2011+A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC VoC: ICES-003: Issue 7;
KC: KN 32: 2015, KN 35: 2015
Safety
UL: UL 62368-1;
CB: IEC 62368-1:2014+A11;
CE-LVD: EN 62368-1:2014/A11:2017;
BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002


 Available Model
DS-2CD1153G0-I (2.8/4 mm)(C)



Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.

Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.

 Dimension







 Accessory
 Optional
DS-1275ZJ-SUS
Vertical Pole
Mount
DS-1272ZJ-110B
Wall Mount
DS-1276ZJ-SUS
Corner Mount
DS-1272ZJ-110
Wall Mount
DS-1271ZJ-110
Pendant Mount




DS-1280ZJ-DM18
Junction Box
DS-1253ZJ-M
Rain Shade
DS-1250ZJ
Rain Shade
DS-1259ZJ
Inclined Ceiling
Mount
DS-1258ZJ
Wall Mount
