DS-2CD1323G0E-I(4mm)(C)

DS-2CD1323G0E-I (C)  2 MP Fixed Turret Network Camera                    ◼ High quality imaging with 2 MP resolution  ◼ Efficient H.265+ compression technology  ◼ Clear imaging against strong back light due to DWDR technology  ◼ Water and dust resistant (IP67)  ◼ EXIR 2.0: advanced infrared technology with long IR range                ◼ Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR  Shutter Speed 1/3 s to 1/100, 000 s  Slow Shutter Yes  Wide Dynamic Range Digital WDR  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Focal Length & FOV  2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°  4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°  Lens Mount M12  Focus Fixed  Aperture F2.0  Illuminator  IR Wavelength 850 nm  IR Range Up to 30 m  Video  Max. Resolution 1920 x 1080  Main Stream  50 Hz: 25 fps (1920 x 1080, 1280 x 720)  60 Hz: 30 fps (1920 x 1080, 1280 x 720)  Sub-Stream  50 Hz: 25 fps (640 x 480, 6...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CD1323G2-I(4mm)

Ersatzproduktcode: 311320732

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CD1323G0E-I (C)

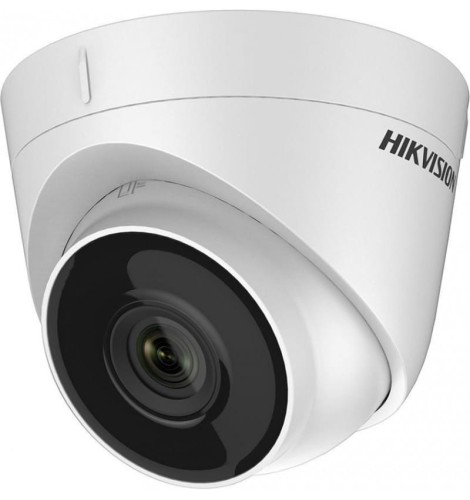

2 MP Fixed Turret Network Camera









◼ High quality imaging with 2 MP resolution
◼ Efficient H.265+ compression technology
◼ Clear imaging against strong back light due to DWDR technology
◼ Water and dust resistant (IP67)
◼ EXIR 2.0: advanced infrared technology with long IR range







◼ Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Wide Dynamic Range Digital WDR
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
Lens Mount M12
Focus Fixed
Aperture F2.0
Illuminator
IR Wavelength 850 nm
IR Range Up to 30 m
Video
Max. Resolution 1920 x 1080
Main Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 720)
60 Hz: 30 fps (1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Region of Interest (ROI) 1 fixed region for main stream
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client
software or web browser.



Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event Motion detection, video tampering alarm, exception
General
Linkage Method Upload to FTP, notify surveillance center, send email
Camera Material Metal & Plastic
Camera Dimension Ø110 mm x 85.3 mm (Ø4.3" x 3.4")
Package Dimension 150 mm x 150 mm x 141 mm (5.9" x 5.9" x 5.6")
Camera Weight Approx. 320 g (0.7 lb.)
With Package Weight Approx. 556 g (1.2 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Web Client Language English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Firmware Version V5.5.120
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Supply
12 VDC ± 25%
PoE: 802.3af, Class 3
Power Interface Ø5.5 mm coaxial power plug
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014,
EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS
13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)






◼ Available Model
DS-2CD1323G0E-I(2.8/4 mm)




◼ Dimension



◼ Accessory
◼ Optional
DS-1272ZJ-110-TRS
Wall Mount
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-S
Junction Box
DS-1275ZJ-SUS
Vertical Pole Mount
