DS-2CD1327G0-L(2.8mm)(C)

DS-2CD1327G0-L  2 MP ColorVu Lite Fixed Turret Network Camera                               High quality imaging with 2 MP resolution   Excellent low-light performance   Efficient H.265+ compression technology   Water and dust resistant (IP67)   24/7 colorful imaging    ColorVu Lite  ColorVu Lite series are the economic products with ColorVu technology. Hikvision ColorVu technology provides 24/7 vivid  colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more  light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light. In  zero-light scenarios, built-in, warm supplemental lighting works to guarantee colorful images.                 Specification  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°  Slow Shutter Yes  P/N P/N  Wide Dynamic Range Digital WDR  Lens  Lens Type & FOV  2.8 mm, horizontal FOV 107°, vertical F...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

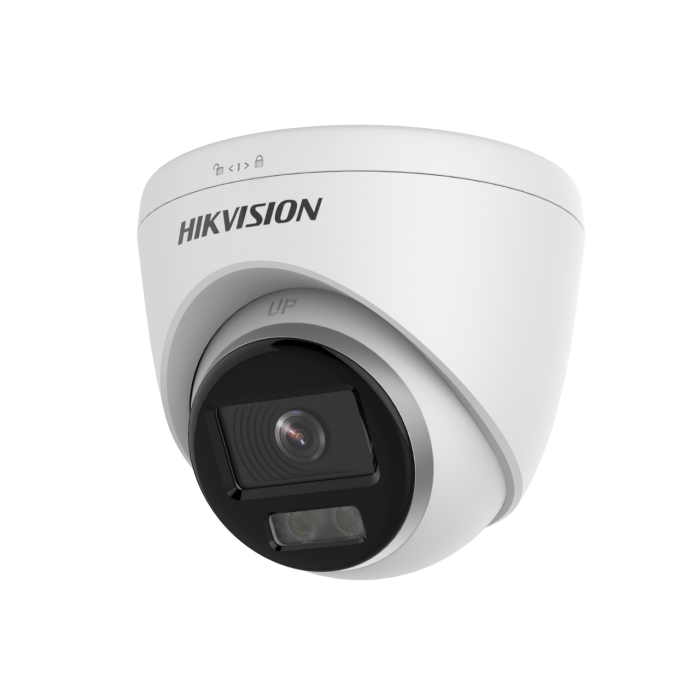

DS-2CD1327G0-L
2 MP ColorVu Lite Fixed Turret Network Camera














 High quality imaging with 2 MP resolution
 Excellent low-light performance
 Efficient H.265+ compression technology
 Water and dust resistant (IP67)
 24/7 colorful imaging

ColorVu Lite
ColorVu Lite series are the economic products with ColorVu technology. Hikvision ColorVu technology provides 24/7 vivid
colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more
light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light. In
zero-light scenarios, built-in, warm supplemental lighting works to guarantee colorful images.







 Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Slow Shutter Yes
P/N P/N
Wide Dynamic Range Digital WDR
Lens
Lens Type & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°
Aperture F1.0
Lens Mount M12
Aperture Type Fixed
Depth of Focus
2.8 mm: 1.7 m to ∞
4 mm: 2.1 m to ∞
Illuminator
Smart Supplement Light Yes
Supplement Light White
White Light Range Up to 30 m
Video
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type BaseLine Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Network
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and
digest authentication for ONVIF
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8, IE9, IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+



Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Intelligent (Traditional Algorithm)
Basic Event Motion detection, exception (illegal login)
General
Linkage Method
Upload to FTP/NAS, notify surveillance center, send email, trigger recording, trigger
capture
*Note: External device is required.
Web Client Language English
General Function
Anti- flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail,
pixel counter
Software Reset Reset via web browser and client software
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection
Power Consumption and
Current
12 VDC, 0.30 A, max. 3.6 W
PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W
Power Interface Ø5.5 mm coaxial power plug
Material Main body: metal; enclosure and base: plastic
Camera Dimension Ø110 x 100.8 mm (4.3" x 4.0")
Package Dimension 150 x 150 x 141 mm (5.9" x 5.9" x 5.6")
Camera Weight Approx. 350 g (0.7 lb.)
With Package Weight Approx. 500 g (1.1 lb.)
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection Ingression protection: IP67 (IEC 60529-2013)




 Available Model
DS-2CD1327G0-L(2.8 mm, 4 mm)



 Dimension



 Accessory





DS-1281ZJ-S DS-1280ZJ-S DS-1276ZJ-SUS DS-1275ZJ-SUS DS-1272ZJ-110-TRS
Inclined Ceiling
Mount
Junction Box Corner Mount Vertical Pole Mount Wall Mount













050511220200410
