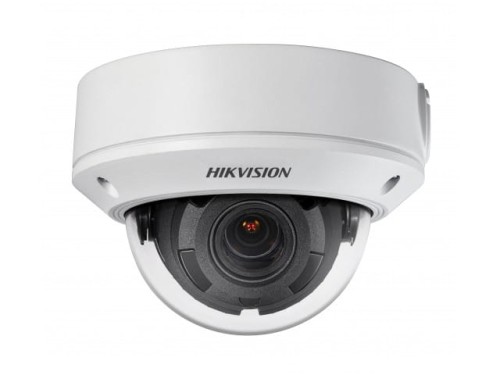

DS-2CD1721FWD-IZ(2.8-12mm)

Key Features   1/2.8" progressive scan CMOS   Up to 2.0 megapixel   2.8 mm to 12 mm manual/motorized (with -Z) vari-focal lens   Up to 30 m IR range   Dual stream   120 dB WDR (Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP67, IK10   Mobile monitoring via Hik-Connect or iVMS-4500    DS-2CD1721FWD-I (Z)  2.0 MP CMOS Vari-Focal Network Dome Camera        Camera  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter  Lens 2.8 mm to 12 mm @F1.4, horizontal field of view: 100° to 35°  Lens Mount Φ14  Day &Night IR cut filter with auto switch  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°  DNR (Digital Noise Reduction) 3D DNR  WDR (Wide Dynamic Range) 120 dB  Compression Standard    Video Compression  Main stream: H.264+/H.264  Sub stream: H.264/MJPEG  H.264 Type Baseline profile/Main profile  Video Bit Rate 32 Kbps to 8 Mbps  Image  Max. Resolution 1920 x 1080  Main Stream  Max. Frame Rate  50Hz: 25fps @(1920 x 1080, 1280 x 960, 1280 x 720)  60...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 1/2.8" progressive scan CMOS
 Up to 2.0 megapixel
 2.8 mm to 12 mm manual/motorized (with -Z) vari-focal lens
 Up to 30 m IR range
 Dual stream
 120 dB WDR (Wide Dynamic Range)
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet)
 IP67, IK10
 Mobile monitoring via Hik-Connect or iVMS-4500

DS-2CD1721FWD-I (Z)
2.0 MP CMOS Vari-Focal Network Dome Camera



Camera
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Lens 2.8 mm to 12 mm @F1.4, horizontal field of view: 100° to 35°
Lens Mount Φ14
Day &Night IR cut filter with auto switch
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
DNR (Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) 120 dB
Compression Standard

Video Compression
Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Baseline profile/Main profile
Video Bit Rate 32 Kbps to 8 Mbps
Max. Resolution 1920 x 1080
Main Stream
Max. Frame Rate
50Hz: 25fps @(1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps @(1920 x 1080, 1280 x 960, 1280 x 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps @(704 x 576, 640 x 360, 352 x 288, 320 x 240)
60Hz: 30fps @(704 x 480, 640 x 360, 352 x 240, 320 x 240)
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage Support micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
Detections Motion detection
Alarms Video tampering, network disconnected, IP address conflicted, HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
802.1X, QoS, IPv6, Bonjour
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Output (Without-Z) 1Vp-p composite output (75Ω/BNC)
Reset Support
General
Operating Conditions -30 °C to 60°C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply DC12V ± 25%, PoE (802.3af)
Power Consumption Max. 5.5 W/11 W (With -Z)
Protection Level IP67, IK10
IR Range Up to 30 m
Dimensions Φ 141 mm x 99.9 mm (5.6" x 3.9")
Weight 800 g (1.76 lb.)
Specification



Available Models
DS-2CD1721F-I (Z)

Φ 141 mm (5.55")
99
.9
mm
(3
.9
"
)
Φ 99 mm (3.9")
100.5 mm (3.96")
14 mm (0.55")
43
.3
mm
(1
.7
"
)
50.2 mm (1.98")
50.3 mm (1.98")
24.9 mm
(0.98")
58
mm
(2
.3
"
)
29
mm
(1
.4
"
)


Accessory


DS-1227ZJ
In-ceiling Mounting Bracket

DS-1273ZJ-135
Wall Mounting Bracket

DS-1273ZJ-135B
Wall Mounting Bracket

DS-1280ZJ-DM21
Junction Box

DS-1271ZJ-135
Pendant Mounting Bracket

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1281ZJ-DM23
Inclined Base Mounting Bracket







Dimension
