DS-2CD1H41WD-IZ(2.8-12mm)

Key Features   1/3" progressive scan CMOS   Up to 4.0 megapixel high resolution   2.8 mm to 12 mm motorized vari-focal lens   Up to 30 m IR range   Dual stream   120 dB WDR (Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP 67   Mobile monitoring via Hik-Connect or iVMS-4500    DS-2CD1H41WD-IZ  4.0 MP CMOS Vari-Focal Network Turret Camera        Camera  Image Sensor 1/3" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter  Lens 2.8 mm to 12 mm @F1.4, horizontal field of view: 98° to 30°  Lens Mount Φ14  Day &Night IR cut filter with auto switch  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 65°, rotation: 0° to 360°  DNR (Digital Noise Reduction) 3D DNR  WDR (Wide Dynamic Range) 120 dB  Compression Standard    Video Compression  Main stream: H.264+/H.264  Sub stream: H.264/MJPEG  H.264 Type Main profile/High profile  Video Bit Rate 32 Kbps to 16 Mbps  Image  Max. Resolution 2688 x 1520  Main Stream  Max. Frame Rate  50Hz: 20fps @(2688 x 1520), 20fps @(2304 x 1296), 25fps @(1920 x 1080, 1280...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 1/3" progressive scan CMOS
 Up to 4.0 megapixel high resolution
 2.8 mm to 12 mm motorized vari-focal lens
 Up to 30 m IR range
 Dual stream
 120 dB WDR (Wide Dynamic Range)
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet)
 IP 67
 Mobile monitoring via Hik-Connect or iVMS-4500

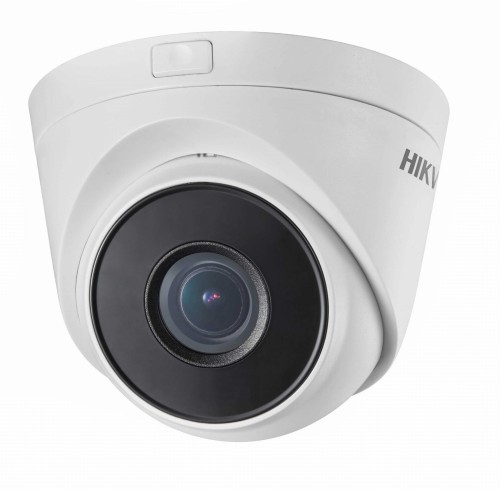

DS-2CD1H41WD-IZ
4.0 MP CMOS Vari-Focal Network Turret Camera



Camera
Image Sensor 1/3" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Lens 2.8 mm to 12 mm @F1.4, horizontal field of view: 98° to 30°
Lens Mount Φ14
Day &Night IR cut filter with auto switch
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 65°, rotation: 0° to 360°
DNR (Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) 120 dB
Compression Standard

Video Compression
Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Main profile/High profile
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 2688 x 1520
Main Stream
Max. Frame Rate
50Hz: 20fps @(2688 x 1520), 20fps @(2304 x 1296), 25fps @(1920 x 1080, 1280 x 720)
60Hz: 20fps @(2688 x 1520), 20fps @(2304 x 1296), 30fps @(1920 x 1080, 1280 x 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps @(640 x 360, 352 x 288)
60Hz: 30fps @(640 x 360, 352 x 240)
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage NAS (NFS, SMB/CIFS)
Detections Motion detection
Alarms Video tampering, network disconnected, IP address conflicted
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function
One-key rest, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to 60°C (-22 °F to 140°F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af)
Power Consumption Max. 8.5 W/11 W (PoE)
Ingress Protection IP67
IR Range 20 m to 30 m
Dimensions Φ 130.5 mm x 102.4 mm (5.14" x 4.03")
Weight 485 g (1.07 lb.)
Specification



Available Models
DS-2CD1H41WD-IZ
Dimension
102.4 mm (4.03")
Φ 112.4 mm (4.43")
3 - Φ 112.4 mm
(0.18")
Φ 130.5 mm (5.14")
1
2
0
°




Accessory

DS-1273ZJ-130-TRL
Wall Mounting Bracket

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1271ZJ-130-TRL
Pendant Mounting Bracket

DS-1276ZJ
Corner Mounting Bracket

DS-1280ZJ-M
Junction Box

DS-1281ZJ-M
Inclined Base Mounting Bracket







050440170207
