DS-2CD2012-I(4mm)
product unavailable
zur Wunschliste hinzufügenBeschreibung
www.hikvision.com Key features Dimensions Accessories t 1.3 megapixel high resolution t HD real-time video t 3D DNR & DWDR & BLC t IR LEDs: up to 30m t IP66 t PoE t Compact design DS-2CD2012-I Camera Image sensor1/3p progressive scan CMOS Min. illumination0.01 lux @F1.2, AGC ON, 0 lux with IR Shutter time1/25s (1/30s) ~ 1/100,000s Lens 4mm @F2.0, angle of view: 73.1° (6mm, 12mm optional) Lens mountM12 Day & nightIR cut lter with auto switch Digital noise reduction3D DNR Wide dynamic rangeDigital WDR Compression Standard Video compression H.264 / MJPEG H.264 codec proleMain prole Bit rate32 Kbps ~ 16 Mbps Dual streamYes Image Max. Image Resolution1280 x 960 Frame rate 50Hz: 25fps (1280 x 960), 25fps (1280 x 720) 60Hz: 30fps (1280 x 960), 30fps (1280 x 720) Image settings Saturation, brightness, contrast, sharpeness adjustable through client software or web browser BLCYes, zone congurable Network Network storageNAS Alarm triggerMotion detection, dynamic analysis, tampering alarm Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
www.hikvision.com
Key features
Dimensions
Accessories
t 1.3 megapixel high resolution
t HD real-time video
t 3D DNR & DWDR & BLC
t IR LEDs: up to 30m
t IP66
t PoE
t Compact design
DS-2CD2012-I
Camera
Image sensor1/3p progressive scan CMOS
Min. illumination0.01 lux @F1.2, AGC ON, 0 lux with IR
Shutter time1/25s (1/30s) ~ 1/100,000s
Lens
4mm @F2.0, angle of view: 73.1°
(6mm, 12mm optional)
Lens mountM12
Day & nightIR cut lter with auto switch
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Compression Standard
Video compression H.264 / MJPEG
H.264 codec proleMain prole
Bit rate32 Kbps ~ 16 Mbps
Dual streamYes
Max. Image Resolution1280 x 960
Frame rate
50Hz: 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps (1280 x 960), 30fps (1280 x 720)
Image settings Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
BLCYes, zone congurable
Network
Network storageNAS
Alarm triggerMotion detection, dynamic analysis, tampering alarm
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
InteroperabilityONVIF, PSIA, CGI
SecurityUser Authentication, watermark, reset button
Interface
Communication interface1 RJ45 10 M / 100 M Ethernet interface
General
Operating conditions-30 °C ~ 60 °C (-22°zF ~ 140 °zF) humidity 95% or less (non-condensing)
Power supply12 VDC ± 10% , PoE (802.3af)
Power consumptionMax. 5W (Max. 7W with ICR on)
Weather proof ratingIP66
IR rangeUp to 30m
Dimension60.4 x 76.9 x 139.2mm
Weight500g (1.1 lbs)
Available model
DS-2CD2012-I
* Product picture and technical specs subject to change without previous notice.
For further information, please contact our local sales team.

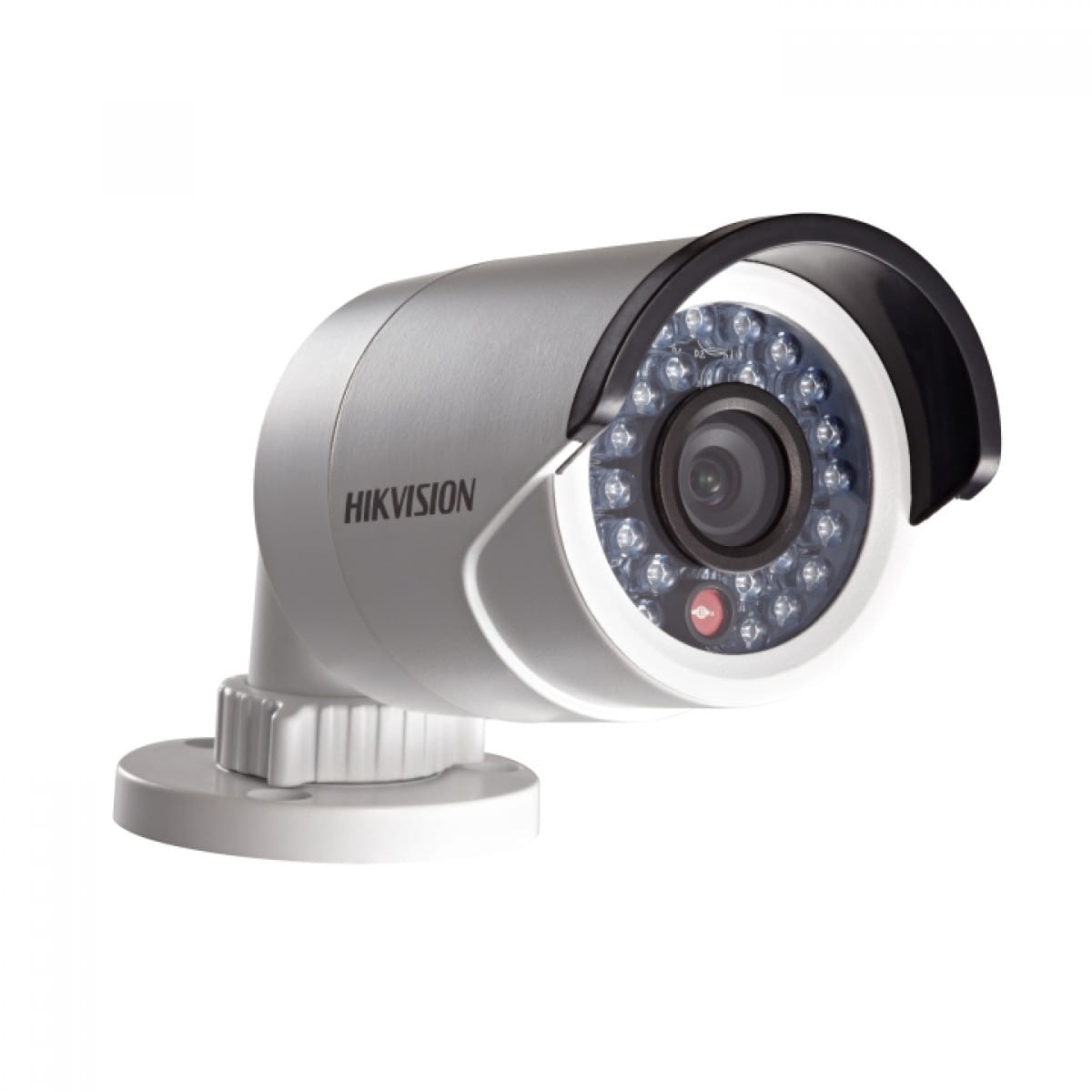

DS-2CD2012-I 1.3MP IR Mini Bullet Camera
IR
IP66
Low Light
HD Video
CMOS
CMOS
1/3”
3D
