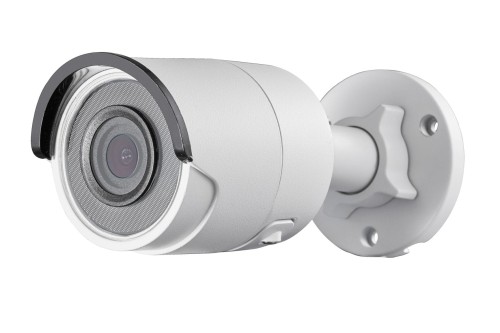

DS-2CD2022F-IW(6mm)
product unavailable
zur Wunschliste hinzufügenBeschreibung
DS-2CD2022WD-I 2MP WDR Mini Bullet Network Camera Up to 2 megapixel high resolution Full HD1080p video Dual video streams 4mm/6mm fixed lens 120dB Wide Dynamic Range 3D Digital Noise Reduction Backlight Compensation Support on-board storage, up to 64GB DC12V & PoE Up to 30m IR range 3-axis adjustment IP66 weather-proof protection Metallic housing & bracket Mobile Monitoring via EZVIZ P2P or iVMS-4500 Specification Camera Image Sensor 1/3" Progressive Scan CMOS Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR 0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s Lens 4mm, 6mm @ F2.0, Angle of view: 85°(4mm) , 52°(6mm) Lens Mount M12 Day &Night IR cut filter with auto switch DNR 3D DNR Wide Dynamic Range 120dB Compression Standard Video Compression H.264 / MJPEG H.264 Type Main Profile Video Bit Rate 32 Kbps ~ 16 Mbps Dual streams Support Image Max. Resolution 1920 x 1080 Frame Rate 50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720) 60Hz: 30fps (1920 x 1080), 30fps (1280 x...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
DS-2CD2022WD-I
2MP WDR Mini Bullet Network Camera
Up to 2 megapixel high resolution
Full HD1080p video
Dual video streams
4mm/6mm fixed lens
120dB Wide Dynamic Range
3D Digital Noise Reduction
Backlight Compensation
Support on-board storage, up to 64GB
DC12V & PoE
Up to 30m IR range
3-axis adjustment
IP66 weather-proof protection
Metallic housing & bracket
Mobile Monitoring via EZVIZ P2P or iVMS-4500
Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s
Lens 4mm, 6mm @ F2.0, Angle of view: 85°(4mm) , 52°(6mm)
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB
Compression Standard
Video Compression H.264 / MJPEG
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual streams Support
Max. Resolution 1920 x 1080
Frame Rate
50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General
One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
General
Operating Conditions -30 °C ~ 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5W
Max. 9W with pan and tilt IR Range Approx. 30 meters
Ingress Protection IP66
Dimensions 60.4x76.9x139.2 mm (2.4” x 3.0” x 5.5”)
Weight 500g (1.1lbs)
Order Models
DS-2CD2022WD-I
DS-2CD2022WD-I
2MP WDR Mini Bullet
Network Camera
Dimensions
