DS-2CD2023G2-I(4mm)

Verfügbarkeit: 0
Preis: 204,42 € 204.42
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 311313832

Beschreibung

DS-2CD2023G2-I(U)  2 MP EXIR Fixed Bullet Network Camera                     High quality imaging with 2 MP resolution   Clear imaging against strong backlight due to 120 dB WDR  technology     Efficient H.265+ compression technology   -U: Built-in microphone for real-time audio security   Water and dust resistant (IP67)               Specification  Camera  Image Sensor 1/2.8″ Progressive Scan CMOS  Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  P/N P/N  Wide Dynamic Range 120 dB  Day & Night ICR Cut  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Lens  Lens Type & FOV  2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 127°  4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 104°  6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°  Aperture F1.6  Lens Mount M12  DORI  DORI  2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m  4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m  6 mm: D: 120 m, O: 47 m, R: 24 m, I: 12m  Illuminator  IR Range Up to 40 m  Wavelength 85...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

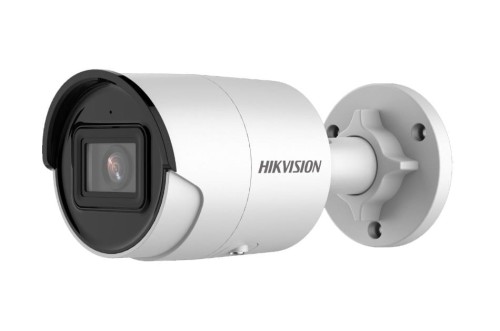

DS-2CD2023G2-I(U)
2 MP EXIR Fixed Bullet Network Camera









 High quality imaging with 2 MP resolution
 Clear imaging against strong backlight due to 120 dB WDR
technology

 Efficient H.265+ compression technology
 -U: Built-in microphone for real-time audio security
 Water and dust resistant (IP67)






 Specification
Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 127°
4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 104°
6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°
Aperture F1.6
Lens Mount M12
DORI
DORI
2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
6 mm: D: 120 m, O: 47 m, R: 24 m, I: 12m
Illuminator
IR Range Up to 40 m
Wavelength 850 nm
Video
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25 fps (1920 x 1080, 1280 x 720)
60Hz: 30 fps (1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25 fps (640 x 480, 640 x 360)
60Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)
60Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering -U: Yes



Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
-U:
64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)
/32-192Kbps(MP2L2)/8-320Kbps(MP3)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto
network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser
Interface
Built-in Microphone -U: Yes
On-board Storage Built-in micro SD, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Smart Feature-Set
Basic Event Motion detection (human and vehicle), video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection
Face Detection Yes
General
Linkage Method
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger
capture, Email
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)



Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, reverse polarity protection
PoE: (802.3af, 36 V to 57 V), Class 3
Power Consumption and Current
12 VDC, 0.5 A, max. 6 W
PoE (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W
Power Interface Ø5.5 mm coaxial power plug
Material
Aluminum alloy body
IR cover: plastic
Camera Dimension Ø70 x 161.7 mm (Ø2.8″ x 6.4″)
Package Dimension 216 x 121 x 118 mm (8.6" x 4.8" x 4.7")
Camera Weight Approx. 490 g (1.1 lb.)
With Package Weight Approx. 724 g (1.6 lb.)
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)


 Dimension









 Available Model
DS-2CD2023G2-I (2.8/4/6 mm)
DS-2CD2023G2-IU(2.8/4/6 mm)



 Accessory
 Optional
DS-1280ZJ-XS
Junction Box

















050510220200925
