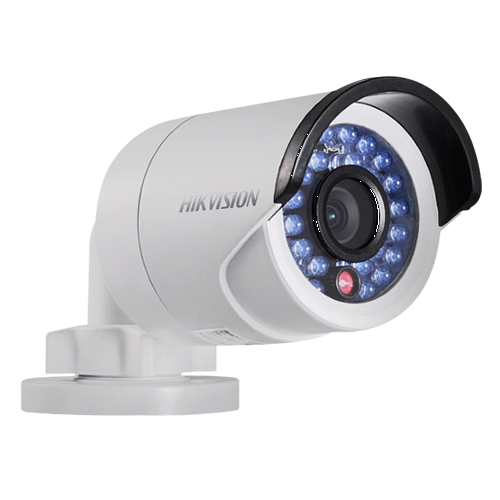

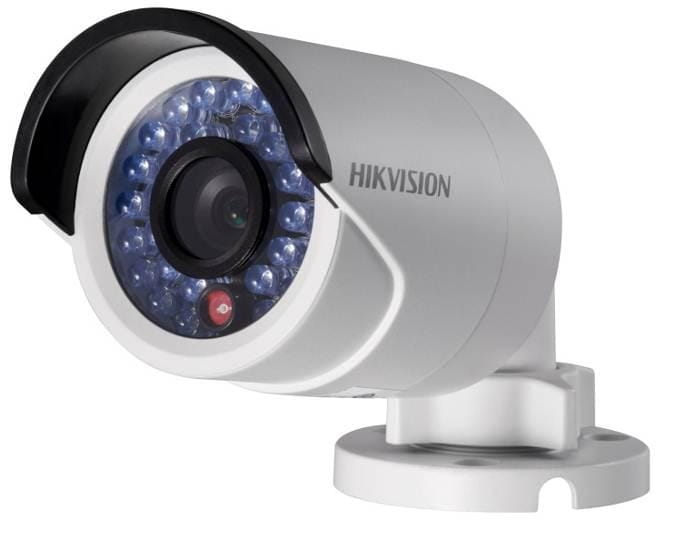

DS-2CD2042WD-I(12mm)

©2006 – 2014 by HIKVISION. All rights reserved.  1  DS-2CD2042WD-I      Key Features   Up to 4 megapixel (2688x1520)@20fps resolution   Standard video compression with high compression ratio, ROI (region of interest) encoding   Progressive scan CMOS, capture motion video without incised margin   Support dual stream, and the sub-stream for mobile surveillance   High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range   IR cut filter with auto switch   PoE (Power over Ethernet)   Support 120dB wide dynamic range   Ingress Protection level: IP66   Electronic shutter for different surveillance environments   Other functions: alarm, reset button, mirror, etc   3-axis adjustment   Support VCA, which is compatible with NVR for the second time of video searching and analysing  Specification   Model  Parameter  DS-2CD2042WD-I  4 Megapixel CMOS ICR Infrared Network Bullet Camera  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR  Shutter Speed 1/3 s to 1/10,000 s  Lens  4mm@ F2.0 (6mm optional)  Angle of view: 82°(4mm) , 55°(6mm)     ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CD2042WD-I


Key Features
 Up to 4 megapixel (2688x1520)@20fps resolution
 Standard video compression with high compression ratio, ROI (region of interest) encoding
 Progressive scan CMOS, capture motion video without incised margin
 Support dual stream, and the sub-stream for mobile surveillance
 High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range
 IR cut filter with auto switch
 PoE (Power over Ethernet)
 Support 120dB wide dynamic range
 Ingress Protection level: IP66
 Electronic shutter for different surveillance environments
 Other functions: alarm, reset button, mirror, etc
 3-axis adjustment
 Support VCA, which is compatible with NVR for the second time of video searching and analysing
Specification
Model
Parameter
DS-2CD2042WD-I
4 Megapixel CMOS ICR Infrared Network Bullet Camera
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens
4mm@ F2.0 (6mm optional)
Angle of view: 82°(4mm) , 55°(6mm)



©2006 – 2014 by HIKVISION. All rights reserved.
2
Lens Mount M12
Day &Night IR cut filter with auto switch
Digital Noise
Reduction
3D DNR
Wide Dynamic Range 120dB
Compression Standard
Video Compression H.264/ MJPEG
Video Bit Rate 256 Kbps – 16 Mbps
Dual Stream Yes
Max. Resolution 2688x1520
Frame Rate
50Hz: 20fps (2688x1520), 25fps(1920x1080), 25fps(1280x720)
60Hz: 20fps (2688x1520), 30fps (1920x1080), 30fps(1280x720)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client
software or web browser
Backlight
compensation
Yes, zone optional
ROI Support
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion Detection, Line Crossing detection, Motion detection,
Dynamic analysis, Tampering alarm, Network disconnect , IP address
conflict, Storage exception
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security
One-key reset, Flash-prevention, dual stream, heartbeat, mirror,
password protection, privacy mask, watermark, IP address filtering,
Anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
General
Operating Conditions
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power Supply
12 V DC ± 10%
PoE (802.3af)
Power Consumption Max. 5 W
Ingress Protection
level
IP66
IR Range 20~30 meters
Dimensions 60.4x76.9x139.2 mm (2.4” x 3.0” x 5.5”)
Weight 500g (1.1 lbs)



©2006 – 2014 by HIKVISION. All rights reserved.
3
Order Models
DS-2CD2042WD-I
Dimensions
Unit: mm
