DS-2CD2083G0-I(6mm)

Verfügbarkeit: 0
Preis: 237,95 € 237.95
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 311302113

Beschreibung

DS-2CD2083G0-I  8 MP IR Fixed Bullet Network Camera  * BLC/3D DNR/ROI  * IP67  * Built-in micro SD/SDHC/SDXC card slot,  up to 128 GB    * 1/2.5" Progressive Scan CMOS  * 3840 x 2160 @15 fps  * 2.8/4/6/8 mm fixed lens  * Color: 0.01 lux @(F1.2, AGC ON), 0.028  lux @(F2.0, AGC ON), 0 lux with IR  * H.265+, H.265, H.264+, H.264  * 2 Behavior analyses  * 120dB WDR      Key Features      Specifications  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Lens  Focal Length 2.8/4/6/8 mm  Aperture F2.0  Focus Auto  FOV  2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°  4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°  6 mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59°  8 mm, horizontal FOV: 40°, vertical FOV: 25°, diagonal FOV: 53°  Lens Mount M12  IR  IR Range Up to 30 m  Wa...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

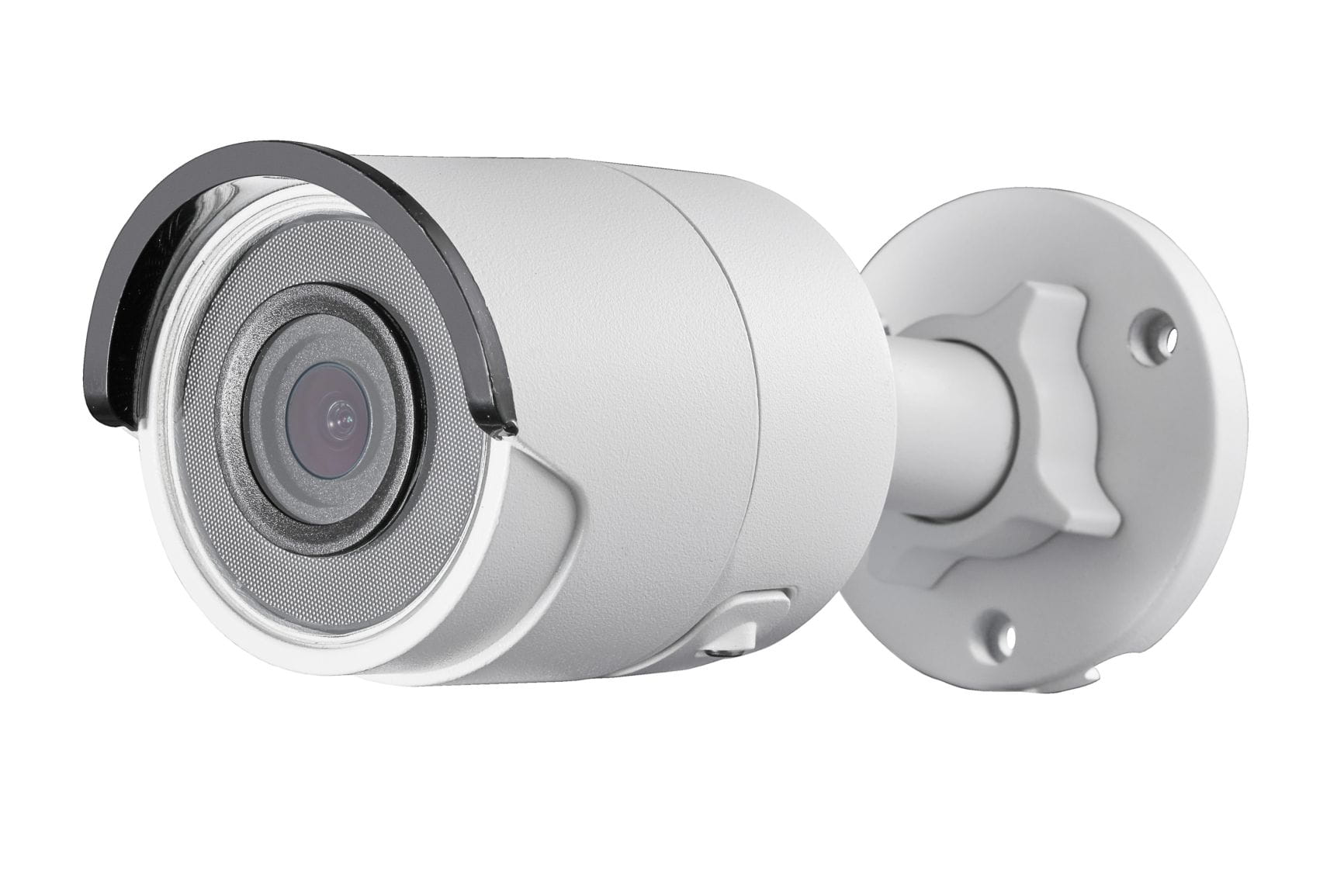

DS-2CD2083G0-I
8 MP IR Fixed Bullet Network Camera
* BLC/3D DNR/ROI
* IP67
* Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB

* 1/2.5" Progressive Scan CMOS
* 3840 x 2160 @15 fps
* 2.8/4/6/8 mm fixed lens
* Color: 0.01 lux @(F1.2, AGC ON), 0.028
lux @(F2.0, AGC ON), 0 lux with IR
* H.265+, H.265, H.264+, H.264
* 2 Behavior analyses
* 120dB WDR


Key Features


Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length 2.8/4/6/8 mm
Aperture F2.0
Focus Auto
FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°
4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°
6 mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59°
8 mm, horizontal FOV: 40°, vertical FOV: 25°, diagonal FOV: 53°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 3840 x 2160
Main Stream
50Hz: 12.5 fps (3840 x 2160), 20fps (3072 x 1728), 25 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 15 fps (3840 x 2160), 20fps (3072 x 1728), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR











Image Settings
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Target Cropping No
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.3
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Video Output No
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding support
Reset Button Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5mm coaxial power plug
PoE(802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.5 A, max. 6 W
PoE: (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7.5W
Protection Level IP67
Material Metal
Dimensions
Camera: Φ 70 mm x 155 mm (Φ 2.8" x 6.1")
Package: 216 x 121 x 118 mm (8.5" x 4.8" x 4.7")
Weight Camera: approx. 410 g (0.9 lb.)
Available Model:
DS-2CD2083G0-I(2.8/4/6/8 mm)



155(6.1" )
81.1(3.2" )
Φ
5
5(
2
.
2
"

)
Φ
7
0(
2
.
8
"

)
3
-
Φ
4
.
5
(
0
.
2
"
)
Unit: mm




DS-1280ZJ-XS
Junction Box




Accessories
Dimensions
05050320171209
