DS-2CD2132F-I(4mm)

Key features  Dimensions  Accessories    DS-2CD2132-I 3MP IR Fixed Focal Dome Camera  • 3 megapixel (2048 x 1536) resolution  • Full HD1080p real-time video  • 3D DNR & DWDR & BLC  • IR LEDs: up to 30m  • IP66  • PoE  • Vandal-proof    DS-2CD2132-I  Camera  Image sensor 1/3” progressive scan CMOS  Min. illumination  0.19 lux@F2.0, AGC on  0 lux with IR  Shutter time 1/30s ~ 1/100,000s  Lens  4mm @F2.0, angle of view: 75.8°  (2.8mm, 6mm, 12mm optional)  Lens mount M12  Angle adjustment Pan: 0° ~ 355°, tilt: 0° ~ 65°  Digital noise reduction 3D DNR  Wide dynamic range Digital WDR  Day & ni...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key features
Dimensions
Accessories

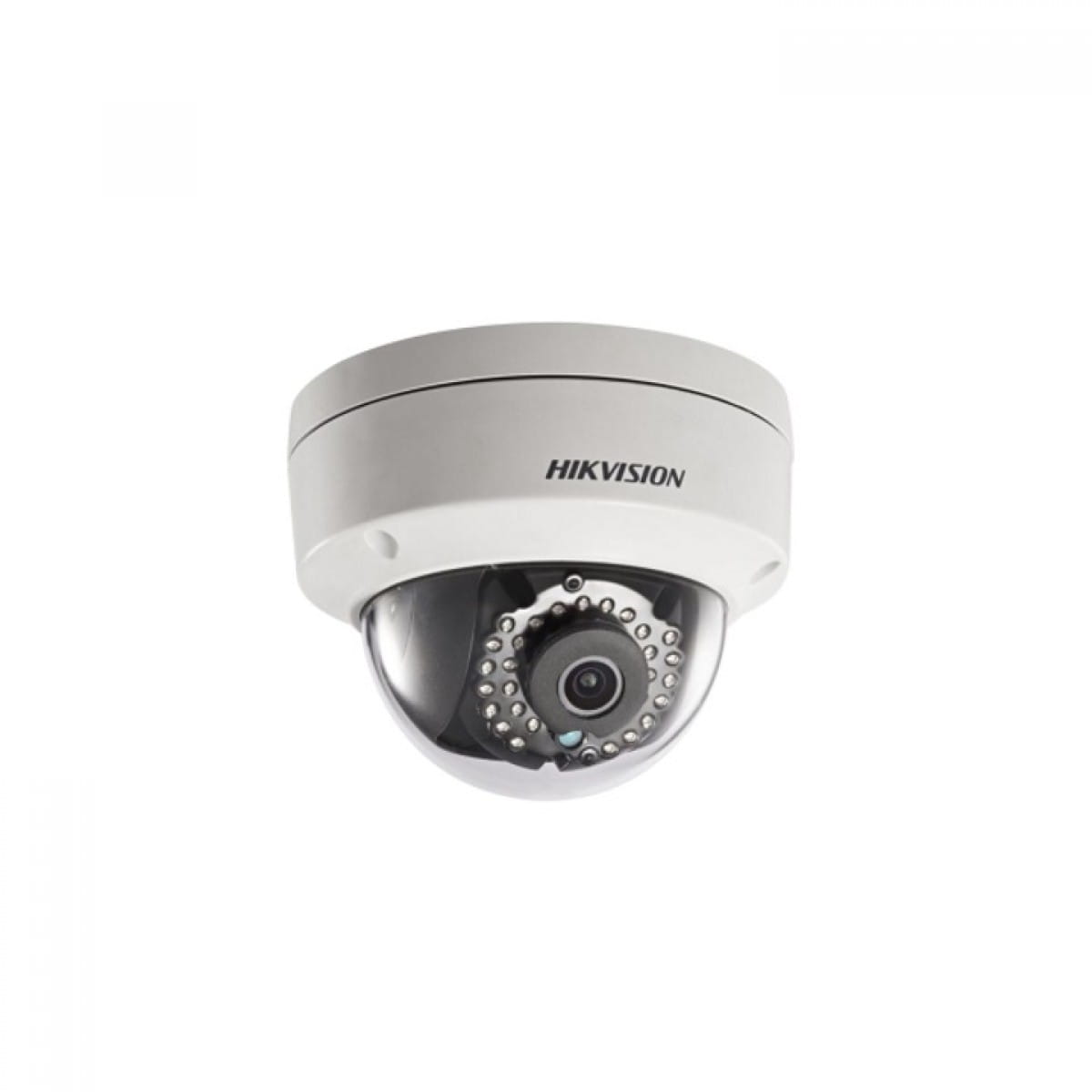

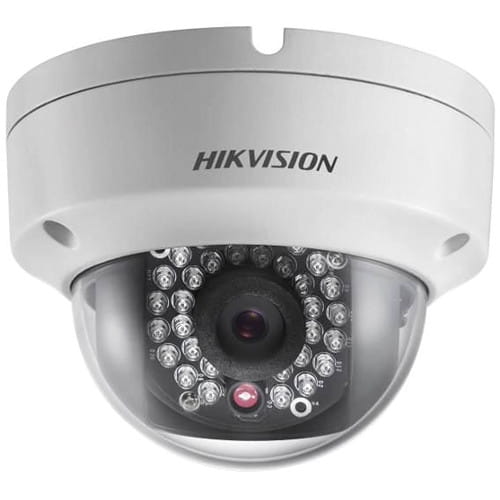

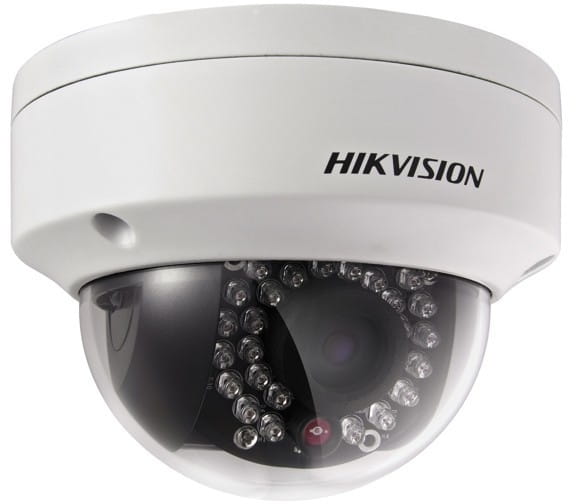

DS-2CD2132-I 3MP IR Fixed Focal Dome Camera
• 3 megapixel (2048 x 1536) resolution
• Full HD1080p real-time video
• 3D DNR & DWDR & BLC
• IR LEDs: up to 30m
• IP66
• PoE
• Vandal-proof

DS-2CD2132-I
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination
0.19 lux@F2.0, AGC on
0 lux with IR
Shutter time 1/30s ~ 1/100,000s
Lens
4mm @F2.0, angle of view: 75.8°
(2.8mm, 6mm, 12mm optional)
Lens mount M12
Angle adjustment Pan: 0° ~ 355°, tilt: 0° ~ 65°
Digital noise reduction 3D DNR
Wide dynamic range Digital WDR
Day & night True
Compression standard
Video compression H.264 / MJPEG
H.264 codec profile Main profile
Bit rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. image resolution 2048 x 1536
Yes, zone configurable
Frame rate 60Hz: 15fps (2048 x 1536), 30fps (1920 x 1080),30fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
BLC
Network
Network storage NAS
Alarm trigger Motion detection, tampering alarm
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos
System compatibility ONVIF, PSIA, CGI
General functionalities User authentication, watermark
Interface
Communication interface1 RJ45 10M / 100M ethernet port
General
Operating conditions -30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10%, PoE (802.3af)
Power consumption Max. 5W (7W with ICR on)
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
Ingress protection IP66 / IK10
IR range approx 10 to 30 meters
DimensionsΦ 111 x 82 mm
Weight 500g (1.1 lbs)
Available models
DS-2CD2132-I

HD Video

CMOS
CMOS
1/3”

IR
IP66

Megapixel
MP Camera
3.0

3D

WDR

DS-1258ZJ
Wall Mount
Plastic Bracket

For more information: www.hikvision.com
908 Canada Court
City of Industry, CA 91748
Tel: 909.895.0400, sales@hikvisionusa.com
Hikvision USA, Inc. Hikvision is constantly developing and improving products.
We reserve the rights to modify product and specifications without notice.
Updated 09/06/13
DS-1280ZJ-DM18
Conduit Base for
21x2 Dome Cameras

DS-1270ZJ-110
Pendant Cap for
21x2 Dome (thread
adapters included)

DS-1272ZJ-110B
Wall mount with
junction box for
21x2 dome
