Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.hikvision.com
Key features
Dimensions
Accessories

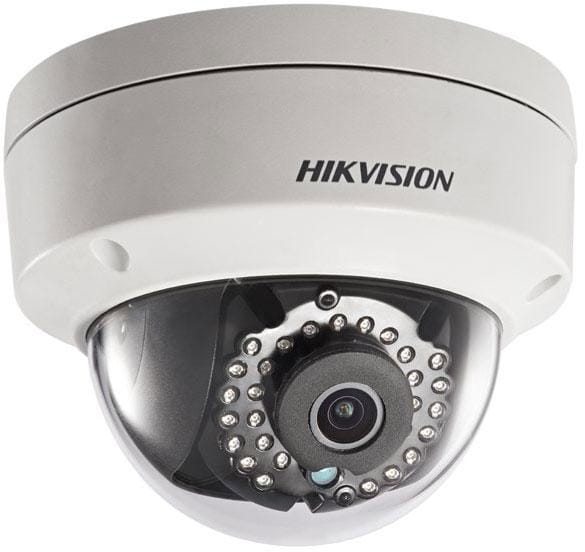

DS-2CD2132-I 3MP IR Fix Dome Camera
t 3 megapixel (2048 x 1536) resolution
t Full HD1080p real-time video
t 3D DNR & DWDR & BLC
t IR LEDs: up to 30m
t IP66
t PoE
t Vandal-proof

DS-2CD2132-I
Camera
Image sensor1/3p progressive scan CMOS
Min. illumination
0.07 lux@F1.2, AGC on
0 lux with IR
Shutter time1/25s (1/30s) ~ 1/100,000s
Lens
4mm @F2.0, angle of view: 79°
(2.8mm, 6mm, 12mm optional)
Lens mountM12
Angle adjustmentPan: 0° ~ 355°, tilt: 0° ~ 65°
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Day & nightICR
Compression standard
Video compression H.264 / MJPEG
H.264 codec proleMain prole
Bit rate32 Kbps ~ 16 Mbps
Dual streamYes
Max. image resolution2048 x 1536
Frame rate
50Hz: 20fps (2048 x 1536), 25fps (1920 x 1080), 25fps (1280 x 720)
60Hz: 20fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
BLCYes, zone congurable
Network
Network storageNAS ( iSCSI optional)
Alarm triggerMotion detection, tampering alarm
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
System compatibilityONVIF, PSIA, CGI
General functionalitiesUser authentication, watermark
Interface
Communication interface1 RJ45 10M / 100M ethernet port
General
Operating conditions-30°C ~ 60°C (-22°zF ~ 140°zF) humidity 95% or less (non-condensing)
Power supply12 VDC ± 10%, PoE (802.3af)
Power consumptionMax. 5W (7W with ICR on)
Impact protectionIEC60068-275Eh, 50J; EN50102, up to IK10
Ingress protectionIP66
IR range-I: approx 20 to 30 meters
Dimensions 111 x 82 mm
Weight500g (1.1 lbs)
Available models
DS-2CD2132-I
* Product picture and technical specs subject to change without previous notice.
For further information, please contact our local sales representatives.

HD Video

CMOS
CMOS
1/3”

IR
IP66

Megapixel
MP Camera
3.0

3D

WDR

DS-1272ZJ-110
Wall Mount
Metallic Bracket
DS-1272ZJ-110B
Wall Mount
Metallic Bracket
