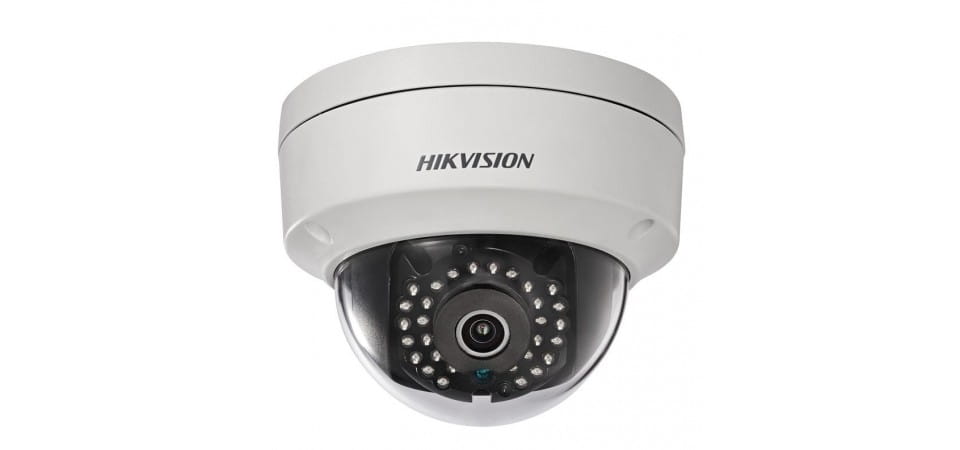

DS-2CD2142FWD-I(8mm)

Verfügbarkeit: 0
Preis: 187,54 € 187.54
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 300808552

Beschreibung

DS-2CD2142FWD-I (S)  4MP WDR Fixed Dome Network Camera     Up to 4 megapixel high resolution   Dual stream   2.8mm/4mm/6mm fixed lens   120dB Wide Dynamic Range   3D Digital Noise Reduction   Language: Portuguese, English and Chinese   Support on-board storage, up to 128GB     DC12V & PoE   Support H.264+   Up to 30m IR range   IP67 weather-proof protection   IK10   -S: Audio/Alarm IO   Bit rate mode: CBR and VBR   Mobile Monitoring via EZVIZ P2P or iVMS-4500      Camera Accessories    Inclined ceiling mount  DS-1259ZJ    Wall mount  DS-1272ZJ-110  Wall mount + Junction Box  DS-1272ZJ-110B  Pendant mount  DS-1271ZJ-110B  Junction Box  DS-1280ZJ-DM18  Corner mount  DS-1276ZJ  Vertical Pole mount  DS-1275ZJ  Rain-proof Cap  DS-1250ZJ            Specification  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination 0.05Lux @ (F1.2, AGC ON) in the color mode and 0.01Lux @ (F1.2, AGC ON) in B/W mode, 0 Lux with IR  0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s  Lens 2.7mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.7mm), 83°(4mm), 55.4°(6mm)...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

DS-2CD2142FWD-I (S)
4MP WDR Fixed Dome Network Camera

 Up to 4 megapixel high resolution
 Dual stream
 2.8mm/4mm/6mm fixed lens
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 Language: Portuguese, English and Chinese
 Support on-board storage, up to 128GB

 DC12V & PoE
 Support H.264+
 Up to 30m IR range
 IP67 weather-proof protection
 IK10
 -S: Audio/Alarm IO
 Bit rate mode: CBR and VBR
 Mobile Monitoring via EZVIZ P2P or iVMS-4500


Camera Accessories

Inclined ceiling mount
DS-1259ZJ

Wall mount
DS-1272ZJ-110
Wall mount + Junction Box
DS-1272ZJ-110B
Pendant mount
DS-1271ZJ-110B
Junction Box
DS-1280ZJ-DM18
Corner mount
DS-1276ZJ
Vertical Pole mount
DS-1275ZJ
Rain-proof Cap
DS-1250ZJ





Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.05Lux @ (F1.2, AGC ON) in the color mode and 0.01Lux @ (F1.2, AGC ON) in B/W mode, 0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s
Lens 2.7mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.7mm), 83°(4mm), 55.4°(6mm)
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
White Balance Automatic/Manual
Wide Dynamic Range 120dB
P&T rotation Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°
Compression Standard
Video Compression H.264 / MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual streams Support
Max. Resolution 2688x1520
Max Frame Rate
60Hz: Main stream:20fps(2688x1520), 25fps (2048x1536), 30fps(1920x1080), 30fps (1280x960), 30fps(1280x720),Sub
stream: 30fps(352x240),30fps(704x480)
Image Setting
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
and AGC
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Detection Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis
Alarm Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
IPV4 and IPV6, TCP/IP, UDP, ICMP, HTTP, HTTPS, SSL, DHCP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,
NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, ARP
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering,
Anonymous access, log access of the user, 10 simultaneous connection.
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port, Base T
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Alarm interface 1x alarm I/O *only for –S models
Audio interface 1x audio I/O *only for –S models
Reset Yes


DS-2CD2142FWD-I (W)(S)
4MP WDR Fixed Dome
Network Camera




Wi-Fi * only for –W models
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters *The performance varies based on actual environment.
General
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%, PoE (802.3af Class3)
Power Consumption Max. 4W with the IR in ON
Max. 9W with pan and tilt
Warranty The device has 36 months of the warranty
IR Range Approx. 30 meters
Material
DS-2CD2142FWD-I, DS-2CD2142FWD-IS : Base&Top Cover: Metal
DS-2CD2142FWD-IW, DS-2CD2142FWD-IWS: Base: Metal; Front Cover: Plastic
Ingress Protection IP67
Impact Protection IK10
Dimensions Φ111 x 82 (4.4” x 3.2”)
Weight 500g (1.1lbs)
Order Models
DS-2CD2142FWD-I, DS-2CD2142FWD-IS, DS-2CD2142FWD-IW, DS-2CD2142FWD-IWS
-S: Audio/Alarm IO, -W: Built-in Wi-Fi

DS-2CD2142FWD-I (W)(S)
4MP WDR Fixed Dome
Network Camera

Dimensions
