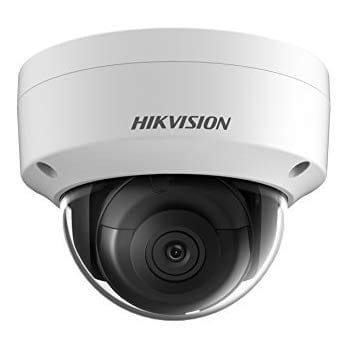

DS-2CD2146G1-IS(4mm)

Verfügbarkeit: 0
Preis: 259,45 € 259.45
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 311306572

Beschreibung

DS-2CD2146G1-I(S)  4 MP IR Fixed Dome Network Camera  Key Features   Max. 2688 x 1520 @ 30fps   2.8 mm/4 mm/6 mm fixed lens   H.265, H.264   120dB WDR   False alarm filter by target classification     12 VDC & PoE (802.3af, class 3)   IR range: Up to 30 m   Support on-board storage, up to 128 GB   IP67, IK10   BLC/3D DNR/ROI   Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @  (F1.6, AGC ON)        Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Focal length 2.8/4/6 mm  Focus Fixed  Aperture F1.6  FOV  2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°  4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°  6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°  Lens Mount M12  Auto-Iris No  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  IR  IR Range Up to 30 m  Wavelength 850 nm  Compression Standard  Video Compression  Main ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CD2146G2-ISU(4mm)(????)

Ersatzproduktcode: 311311613

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

DS-2CD2146G1-I(S)
4 MP IR Fixed Dome Network Camera
Key Features
 Max. 2688 x 1520 @ 30fps
 2.8 mm/4 mm/6 mm fixed lens
 H.265, H.264
 120dB WDR
 False alarm filter by target classification

 12 VDC & PoE (802.3af, class 3)
 IR range: Up to 30 m
 Support on-board storage, up to 128 GB
 IP67, IK10
 BLC/3D DNR/ROI
 Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @
(F1.6, AGC ON)



Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Focal length 2.8/4/6 mm
Focus Fixed
Aperture F1.6
FOV
2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°
4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°
Lens Mount M12
Auto-Iris No
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Main Profile/High Profile
H.264+ No
H.265 Type Main Profile
H.265+ No
Video Bit Rate 32 Kbps to 16 Mbps
SVC H.265 encoding and H.264 encoding support
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In(-S)
Audio (-S)
Environment Noise Filtering Yes
Sampling Rate 8kHz/16kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM







Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-filter
Firmware Version V5.5.61
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Audio (-S) 1 audio input (line in/mic in), 1 audio output, mono sound
Alarm (-S) 1 alarm input, 1 alarm output
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, region entrance detection, region exit detection,
false alarm filter by target classification
General
Operating Conditions -30 °C to +50 °C (-22 °F to +122 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption
12 VDC, 0.7 A, max: 8.5 W
PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max: 10 W
Protection Level IP67, IK10
Material Front cover: metal, back cover: metal
Dimensions Camera: Φ 121.4 x 92.2 mm (Φ 4.8" x 3.6")
Weight
Camera: 600 g (1.3 lb.)
With package: 760 g (1.7 lb.)
Available Model
DS-2CD2146G1-I (2.8/4/6 mm), DS-2CD2146G1-IS (2.8/4/6 mm)





Φ121.4(4.8")
92
.2
(3
.6
")
53
.4
(2
.1
")
51
.1
(2
")
35
.4
(1
.4
")
11.3(0.4")
38.6(1.5")49.9(2")
3-Φ4.2(0.2")
15.7(0.6")
Unit: mm(inch)





DS-1272ZJ-120
Wall Mount
DS-1272ZJ-120B
Wall Mount
DS-1276ZJ-SUS
Corner mount
DS-1271ZJ-120
Pendant Mount


05056120180830
Accessory

Dimensions
