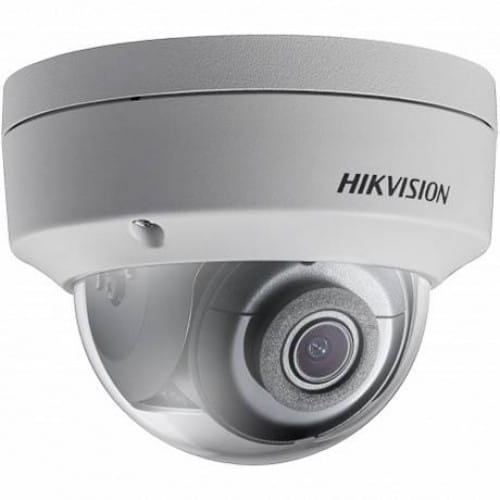

DS-2CD2155FWD-I(2.8mm)

Verfügbarkeit: 0
Preis: 220,37 € 220.37
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 300820334

Beschreibung

DS-2CD2155FWD-I(S)  5 MP Network Dome Camera  Key Features   Up to 5 megapixel high resolution   Max. 2944 x 1656 @20fps   2.8 mm/4 mm/6 mm/8 mm/12 mm fixed  lens, optional   H.265, H.265+, H.264+, H.264   120dB Wide Dynamic Range   3D Digital Noise Reduction   12 VDC & PoE (802.3af)   IR range: up to 30 m   Support on-board storage, up to 128 GB   Audio I/O, Alarm I/O, optional   IP67, IK10   3-axis adjustment          Specification  Camera  Image Sensor 1/2.9" Progressive Scan CMOS  Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Support  Lens  2.8 mm, horizontal field of view: 80°  4 mm, horizontal field of view: 63.5°  6 mm, horizontal field of view: 50°  8 mm, horizontal field of view: 39°  12 mm, horizontal field of view: 16°  Lens Mount M12  Iris F2.0  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°  Compression Standard  Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  Third stream: H.265/H.264  H.264 Type Main ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CD2165FWD-I(2.8mm)

Ersatzproduktcode: 311306730

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

DS-2CD2155FWD-I(S)
5 MP Network Dome Camera
Key Features
 Up to 5 megapixel high resolution
 Max. 2944 x 1656 @20fps
 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed
lens, optional
 H.265, H.265+, H.264+, H.264
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 12 VDC & PoE (802.3af)
 IR range: up to 30 m
 Support on-board storage, up to 128 GB
 Audio I/O, Alarm I/O, optional
 IP67, IK10
 3-axis adjustment




Specification
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
Lens
2.8 mm, horizontal field of view: 80°
4 mm, horizontal field of view: 63.5°
6 mm, horizontal field of view: 50°
8 mm, horizontal field of view: 39°
12 mm, horizontal field of view: 16°
Lens Mount M12
Iris F2.0
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile
H.265+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression (-S) G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate (-S) 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Max. Resolution 2944 x 1656
Main Stream
50Hz: 20 fps (2944 x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 20 fps (2944 x 1656), 30fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 360, 352 x 288)
60Hz: 30fps (640 x 360, 352 x 240)
Third Stream
50Hz: 25fps (1280 x720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web
browser and client software
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Auto/Scheduled/Alarm Triggered (-S)
Audio (-S)
Environment Noise Filtering Support
Audio I/O Support, mono soundtrack
Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz








Network
Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,
HDD full, HDD error
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), ISAPI
General Function
One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark,
IP Address Filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio (-S) 1 audio input (line in), 1 audio output interface
Alarm (-S) 1 alarm input, 1 alarm output
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Line Crossing Detection Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported
Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal Detection Objects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage Detection Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Face Detection Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 6.2 W
PoE(802.3af, class 3), 9 W
IR Range Up to 30 m
Protection Level IP67, IK10
Dimensions
Camera: Φ 111 x 82.4 mm (Φ 4.4″ x 3.2″)
Package: 134 x 134 x 108 mm (5.27″ x 5.27″ x 4.25″)
Weight Camera: 500 g (1.1 lb.)
Available Models
DS-2CD2155FWD-I, DS-2CD2155FWD-IS
With –S model: supports 1 audio input, 1 audio output, 1 alarm input, 1 alarm output.





Unit: mm



Inclined ceiling mount
DS-1259ZJ
Wall mount
DS-1272ZJ-110
Wall mount + junction box
DS-1272ZJ-110B
Pendant mount
DS-1271ZJ-110


Junction box
DS-1280ZJ-DM18
Corner mount
DS-1276ZJ
Vertical pole mount
DS-1275ZJ
Rain-proof cap
DS-1250ZJ





Dimensions
Accessories
