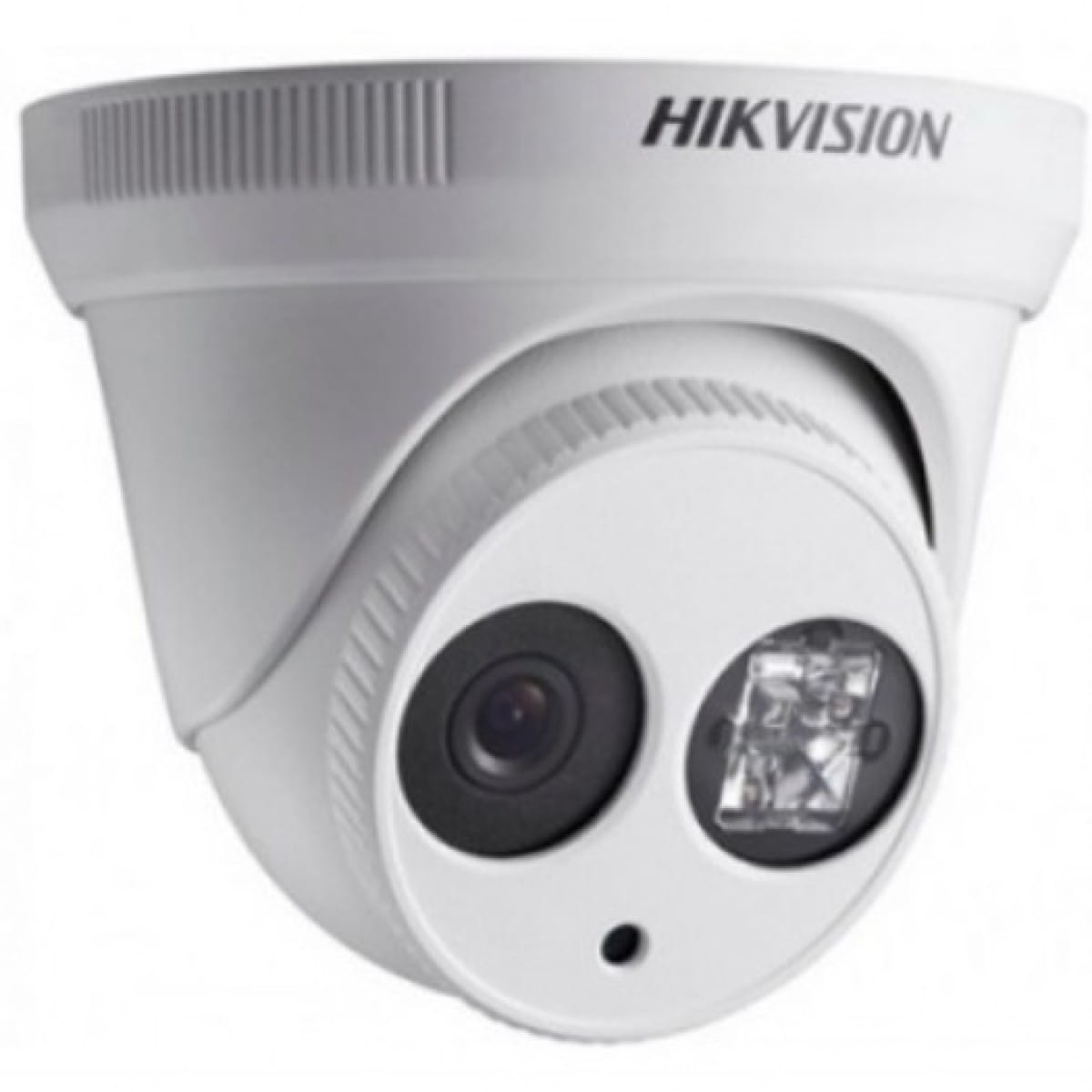

DS-2CD2322WD-I(2.8mm)
product unavailable
zur Wunschliste hinzufügenBeschreibung
DS-2CD2322WD-I 2MP WDR EXIR Turret Network Camera Up to 2 megapixel high resolution Full HD1080p video Dual stream 2.8mm/4mm/6mm fixed lens 120dB Wide Dynamic Range 3D Digital Noise Reduction Backlight Compensation Support on-board storage, up to 64GB DC12V & PoE Support H.264+ High performance EXIR LED Up to 30m IR range IP67 weather-proof protection 3-axis adjustment Dual stream Mobile Monitoring via EZVIZ P2P or iVMS-4500 Camera Accessories Wall Mount DS-1273ZJ-130-TRL Junction Box DS-1280ZJ-M Inclined Ceiling Mount DS-1281ZJ-M Corner mount DS-1276ZJ Vertical Pole mount DS-1275ZJ Specification Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR 0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s Lens 2.8mm, 4mm, 6mm @ F2.0 angle of view: 109.4°(2.8mm), 90°(4mm), 53.9°(6mm) Lens Mount M12 Day &Night IR cut filter with auto switch DNR 3D DNR Wide Dynamic Range 120dB Angle Adjustment Pan:0° ~ 360°, Tilt: 0° ~ 75...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
DS-2CD2322WD-I
2MP WDR EXIR Turret Network Camera
Up to 2 megapixel high resolution
Full HD1080p video
Dual stream
2.8mm/4mm/6mm fixed lens
120dB Wide Dynamic Range
3D Digital Noise Reduction
Backlight Compensation
Support on-board storage, up to 64GB
DC12V & PoE
Support H.264+
High performance EXIR LED
Up to 30m IR range
IP67 weather-proof protection
3-axis adjustment
Dual stream
Mobile Monitoring via EZVIZ P2P or iVMS-4500
Camera Accessories
Wall Mount
DS-1273ZJ-130-TRL
Junction Box
DS-1280ZJ-M
Inclined Ceiling Mount
DS-1281ZJ-M
Corner mount
DS-1276ZJ
Vertical Pole mount
DS-1275ZJ
Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, 4mm, 6mm @ F2.0 angle of view: 109.4°(2.8mm), 90°(4mm), 53.9°(6mm)
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB
Angle Adjustment Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression H.264 / MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual streams Support
Max. Resolution 1920 x 1080
Max Frame Rate
50Hz:Main stream:25fps(1920x1080),25fps(1280x960),25fps(1280x720)Sub stream:25fps(352x288),25fps(640x360)
60Hz: Main stream:30fps (1920x1080), 30fps(1280x960), 30fps(1280x720) Sub stream: 30fps(352x240),30fps(640x360)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Detection Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis
Alarm Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering,
Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
DS-2CD2322WD-I
2MP WDR EXIR Turret
Network Camera
General
Operating Conditions -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%, PoE (802.3af)
Power Consumption Max. 5.5W (Max. 7.5W with ICR on)
Max. 9W with pan and tilt
Material Housing: Plastic; Body & Dome Cover: Metal
IR Range Approx. 30 meters
Ingress Protection IP67
Dimensions Φ127x97.5 (5.0” x 3.8”)
Weight 670g (1.5 lbs)
Order Models
DS-2CD2322WD-I
DS-2CD2322WD-I
2MP WDR EXIR Turret
Network Camera
Dimensions
Unit: mm
