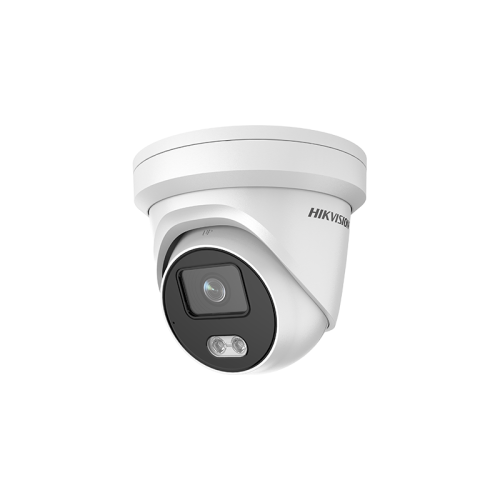

DS-2CD2347G1-L(2.8mm)

Key Features   Max. 2688 x 1520 @30fps   2.8 mm/4 mm/6 mm fixed lens   H.265+, H.264+   120dB WDR       0.0014 @ (F1.0, AGC ON), 0 Lux with Light   Built-in micro SD/SDHC/SDXC slot, up to 128G   Built-in mic (Optional)   24/7 full time color    DS-2CD2347G1-L(U)  4 MP ColorVu Fixed Turret Network Camera    ColorVu  Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high  performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter  images. Advanced sensor technology can vastly improve the utilization of available light. In zero-light  scenarios, built-in, warm supplemental lighting works to guarantee colorful images.        Specification  Camera  Image Sensor 1/1.8" Progressive Scan CMOS  Min. Illumination 0.0014 @ (F1.0, AGC ON), 0 Lux with Light  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  DNR 3D DNR  Wide Dynamic Range 120 dB  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Focal length 2.8/4/6 mm  Aperture F1.0  Focus Fixed  FOV  2.8 mm, horizontal FOV: 109°, vertical FOV: 55°, diagonal FOV: 138° <...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 Max. 2688 x 1520 @30fps
 2.8 mm/4 mm/6 mm fixed lens
 H.265+, H.264+
 120dB WDR


 0.0014 @ (F1.0, AGC ON), 0 Lux with Light
 Built-in micro SD/SDHC/SDXC slot, up to 128G
 Built-in mic (Optional)
 24/7 full time color

DS-2CD2347G1-L(U)
4 MP ColorVu Fixed Turret Network Camera

ColorVu
Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high
performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter
images. Advanced sensor technology can vastly improve the utilization of available light. In zero-light
scenarios, built-in, warm supplemental lighting works to guarantee colorful images.



Specification
Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination 0.0014 @ (F1.0, AGC ON), 0 Lux with Light
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
DNR 3D DNR
Wide Dynamic Range 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal length 2.8/4/6 mm
Aperture F1.0
Focus Fixed
FOV
2.8 mm, horizontal FOV: 109°, vertical FOV: 55°, diagonal FOV: 138°
4 mm, horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115°
6 mm, horizontal FOV: 57°, vertical FOV: 31°, diagonal FOV: 67°
Lens Mount M16
Illuminator
White Light Range Warm white LEDs (3000K), up to 30m
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, object removal detection, unattended baggage
detection
Exception Detection Scene change detection
Face Detection Yes
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 30fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fp s(1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by
client software or web browser
Day/Night Switch Day/Night
ROI (Region of Interest) Support 1 fixed region for main stream and sub-stream separately
Audio (-U)
Environment Noise Filtering Yes







Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering detection, network disconnected, IP address conflict, illegal
login, HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.82
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
Web Browser
Plug-in required live view:
IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view:
Chrome 45.0+, Firefox 52.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Audio (-U) 1 audio input (built-in mic ), mono sound
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption
12 VDC, 0.5 A, max. 6 W
PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 7.5 W
Protection Level
-L model: IP67
-LU model: IP66
Material Camera: Metal, trim ring: Plastic
Dimension
Camera: Φ 138.3 x 125.2 mm (Φ 5.4" x 4.9")
With package: 170 x 170 x 150 mm (7" x 7" x 5.9")
Weight
Camera: 575 g (1.3 lb.)
With package: 833 g (1.8 lb.)
Available Model
DS-2CD2347G1-L (2.8/4/6 mm), DS-2CD2347G1-LU (2.8/4/6 mm)





Ø 138.3(5.4") 125.2(4.9")
98(3.9")
Ø 128(5")
3-Ø 4.6(0.2")
Unit: mm(inch)






DS-1273ZJ-140
Wall Mount

DS-1271ZJ-140
Pendant Mount

DS-1280ZJ-DM21
Junction Box



Dimension

Accessory

05058220190926
