DS-2CD2347G2-LSU/SL(2.8mm)(C)

Verfügbarkeit: 1-5

Preis: 356,20 € 356.20

bez 23.00% VAT i kosztów dostawy

quantity szt.

product unavailable

zur Wunschliste hinzufügen

Anbieter:

Produkt-Code/SKU: 311316092

Stellen Sie Fragen zum Artikel oder ein Angebot

Beschreibung

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

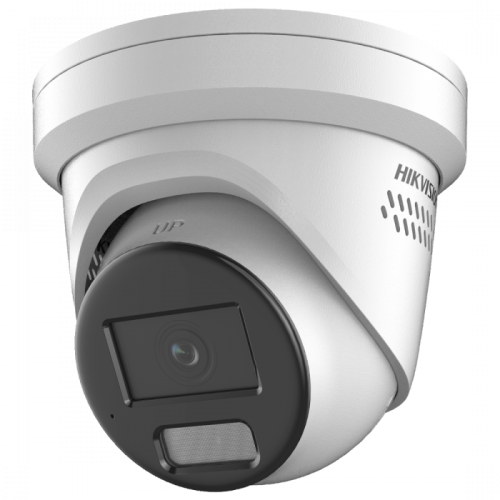

DS-2CD2347G2-LSU/SL
4 MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera

Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance
sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly
improve the utilization of available light.
 High quality imaging with 4 MP resolution
 Efficient H.265+ compression technology
 Clear imaging against strong backlight due to 130 dB WDR technology
 Focus on human and vehicle targets classification based on deep learning
 24/7 colorful imaging
 Active strobe light and audio alarm to warn intruders off
 Provide real-time security via built-in two-way audio
 Audio and alarm interface available
 Water and dust resistant (IP67)

 Specification
Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 x 1520
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°
4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°
Lens Mount M16
Iris Type Fixed
Aperture F1.0
Depth of Field
2.8 mm: 3.1 m to ∞
4 mm: 5.4 m to ∞
DORI
DORI
2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m
4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
Illuminator
Supplement Light Type White light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream
50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.265 and H.264 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR), MicroSD/SDHC/SDXC card
(256 GB) local storage
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Day/Night Switch Auto, Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC slot, up to 256 GB
Built-in Microphone Yes
Built-in Speaker 1.2 W, 10 cm: 95 dB
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 Ω, interface type: non-equilibrium
Alarm
Visual alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key Yes
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm,
exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection (support alarm triggering by specified target types (human and vehicle))
Scene change detection

Linkage
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger
capture, send email, strobe light, audible warning, trigger alarm output
Deep Learning Function
Face Capture Yes
General
Power
12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
Dimension Ø138.3 mm x 115.4 mm (Ø5.4" x 4.5")
Package Dimension 170 mm x 170 mm x 150 mm (6.7" x 6.7" x 5.9")
Weight Approx. 760 g (1.7 lb.)
With Package Weight Approx. 1040 g (2.3 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
counter
Approval
EMC
FCC SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC VoC: ICES-003: Issue 6, 2016;
KC: KN 32: 2015, KN 35: 2015
Safety
UL: UL 60950-1;
CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

 Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.

 Available Model
DS-2CD2347G2-LSU/SL (2.8/4 mm)
DS-2CD2347G2-LSU/SL (2.8 mm) (Black)

This model has NO SPECIFIC PROTECTION.

Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.

 Dimension

 Accessory
 Optional
DS-1273ZJ-140
Wall Mount
DS-1276ZJ-SUS
Corner Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1271ZJ-140
Pendant Mount
DS-1273ZJ-140B
Wall Mount

DS-1280ZJ-PT6
Junction Box

050511420220114
