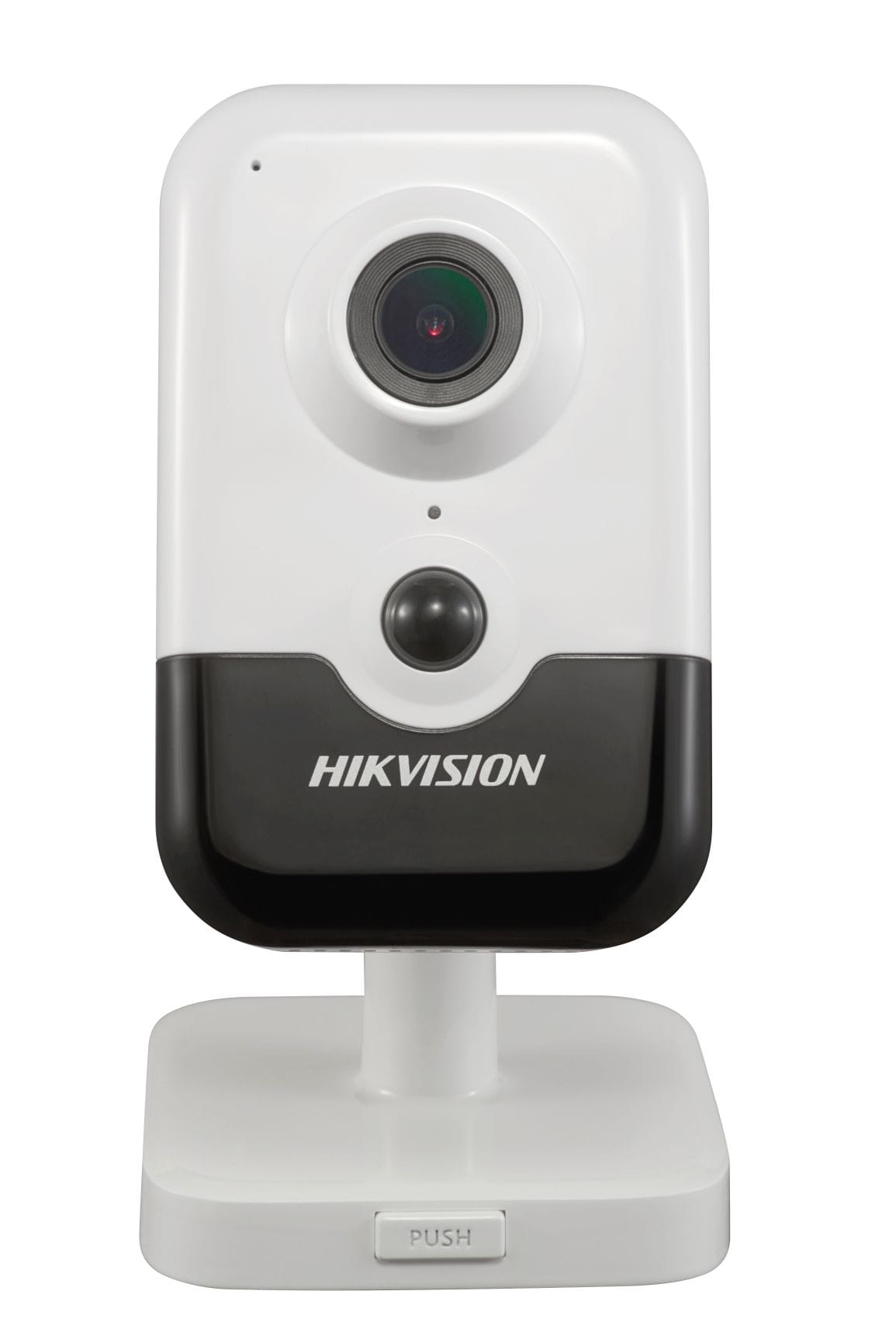

DS-2CD2425FWD-I(W)
2 MP EXIR Fixed Cube Network Camera
* 1920 x 1080@30fps
* IR: 10 m
* PIR: 10 m
* H.265+, H.265
* 120dB WDR
* Built-in Micro SD/SDHC/SDXC slot, up to 128G
* PoE
* EXIR
* Wi-Fi (Optional)


Key Features




Specifications
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR; Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal length 2.8 mm
Aperture F1.6
FOV Horizontal field of view: 108°, Vertical field of view: 59°, Diagonal field of view: 129°
Lens Mount M12
IR
IR Range 10 m
Wavelength 850nm
PIR
Angle Horizontal: 90°, Vertical: 80°
PIR Range 10 m
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Yes
H.265 Type Main Profile
H.265+ Yes
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream separately
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream 50Hz: 25fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 288)



60Hz: 30fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 240)
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Image Enhancement BLC/3D DNR
Day/Night Switch Auto/Schedule
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error,
PIR, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™











Interface
Audio 1 built-in mic, 1 built-in speaker, mono sound
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
SVC Support H.264 and H.265 encoding
Reset Button Yes
Wi-Fi (-W)
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.412 GHz to 2.4835 GHz
Channel Bandwidth 20M/40M
Protocols
802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
Security WPA, WPA2
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 m
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 16 kHz
General
Operating Conditions -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 20%, PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.38A, max. 7W
PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W
Interface Protection TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material Plastic
Dimensions 102.8 mm x 65.2 mm x 32.6 mm (4.05" x 2.57" x 1.28")
Weight Camera: Approx. 128 g (0.28 lb.)








32.99 mm
(1.30")
1
0
2
.
8
1

m
m

(
4
.
0
5"
)
1
3
4
.
5
1

m
m

(
5
.
3
0"
)
8
8.
1
4

m
m

(
3
.
4
7"
)
65.2 mm
(2.57")
75.5 mm (2.97")75.5 mm (2.97")


Dimensions
Available Model:
DS-2CD2425FWD-I, DS-2CD2425FWD-IW
