DS-2CD2455FWD-I(2.8mm)

Verfügbarkeit: 0
Preis: 224,30 € 224.30
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 311301788

Beschreibung

DS-2CD2455FWD-I(W)  6 MP EXIR Fixed Cube Network Camera  * 3072 x 2048@20fps  * IR: 10 m  * PIR: 10 m  * H.265+. H.265  * 120dB WDR  * Built-in Micro SD/SDHC/SDXC slot, up to 128G  * PoE  * EXIR  * Wi-Fi (Optional)      Key Features          Specifications  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR; Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Lens  Focal length 2.8 mm  Aperture F2.0  FOV Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113°  Lens Mount M12  IR  IR Range 10 m  Wavelength 850nm  PIR  Angle Horizontal: 90°, Vertical: 80°  PIR Range 10 m  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub-stream: H.265/H.264/MJPEG  Third stream: H.265/H.264  H.264 Type Main Profile/High Profile  H.264+ Yes  H.265 Type Main Profile  H.265+ Yes  Video Bit Rate 32 Kbp...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

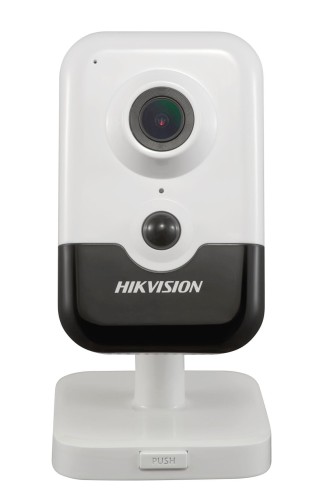

DS-2CD2455FWD-I(W)
6 MP EXIR Fixed Cube Network Camera
* 3072 x 2048@20fps
* IR: 10 m
* PIR: 10 m
* H.265+. H.265
* 120dB WDR
* Built-in Micro SD/SDHC/SDXC slot, up to 128G
* PoE
* EXIR
* Wi-Fi (Optional)


Key Features




Specifications
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR; Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal length 2.8 mm
Aperture F2.0
FOV Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113°
Lens Mount M12
IR
IR Range 10 m
Wavelength 850nm
PIR
Angle Horizontal: 90°, Vertical: 80°
PIR Range 10 m
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Yes
H.265 Type Main Profile
H.265+ Yes
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream separately
Max. Resolution 3072 x 2048
Main Stream
50Hz: 20fps (3072 x 2048,3072 x 1728,2944 x 1656),
25fps (2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 20fps (3072 x 2048,3072 x 1728,2944 x 1656),
25fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)



Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 320 x 240)
60Hz: 30fps (1280 x 720, 640 x 360, 320 x 240)
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Image Enhancement BLC/3D DNR
Day/Night Switch Auto/Schedule
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error,
PIR, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, QoS, IPv6
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 built-in mic, 1 built-in speaker, mono sound
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
SVC Support H.264 and H.265 encoding
Reset Button Yes
Wi-Fi (-W)
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.412 GHz to 2.4835 GHz
Channel Bandwidth 20M/40M
Protocols
802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
Security WPA, WPA2
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 m
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 16 kHz
General
Operating Conditions -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 20%, PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.47A, max. 7W
PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W
Interface Protection TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material Plastic
Dimensions 102.8 mm x 65.2 mm x 32.6 mm (4.05" x 2.57" x 1.28")









32.99 mm
(1.30")
1
0
2
.
8
1

m
m

(
4
.
0
5"
)
1
3
4
.
5
1

m
m

(
5
.
3
0"
)
8
8.
1
4

m
m

(
3
.
4
7"
)
65.2 mm
(2.57")
75.5 mm (2.97")75.5 mm (2.97")


























Weight Camera: Approx. 128 g (0.28 lb)
Dimensions
Available Model:
DS-2CD2455FWD-I, DS-2CD2455FWD-IW
