DS-2CD2512F-IS(2.8mm)

Key features    DS-2CD2512F-I(S) 1.3MP Mini Fixed Focal Network Camera  • Up to 1.3 megapixel (1280 x 960) resolution  • HD real-time video  • -I: IR LEDs (up to 10m)  • DWDR & 3D DNR & BLC  • Onboard storage (up to 64 GB)  • -S: Audio I/O, Alarm I/O  • IP66 protection  • Vandal-proof housing    DS-2CD2512F-I(S)  Camera  Image sensor 1/3” progressive scan CMOS  Min. illumination  0.19 lux@F2.0, AGC on  0 lux with IR  Shutter time 1/30s ~ 1/100,000s  Lens  4mm@F2.0, angle of view: 75.8°  (2.8mm, 6mm optional)  Lens mount M12  Day & night ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key features

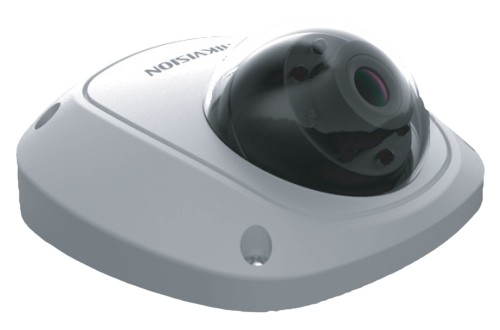

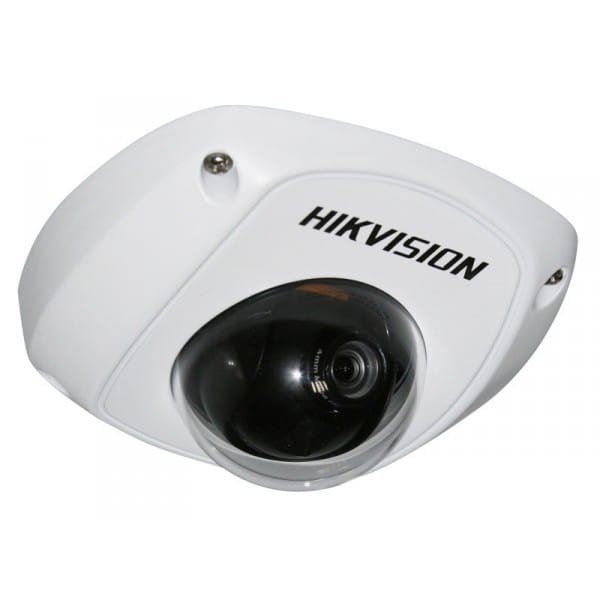

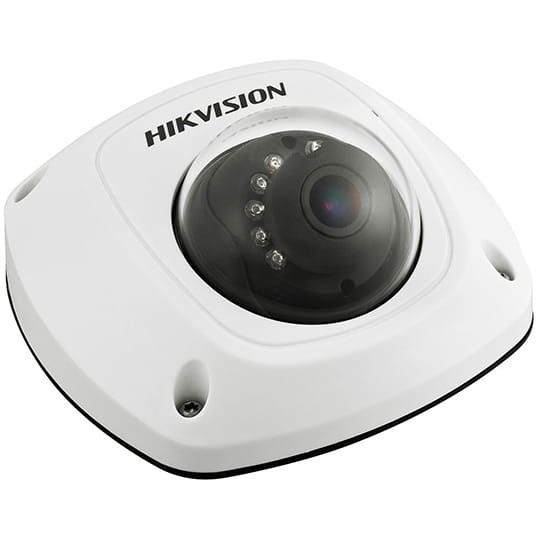

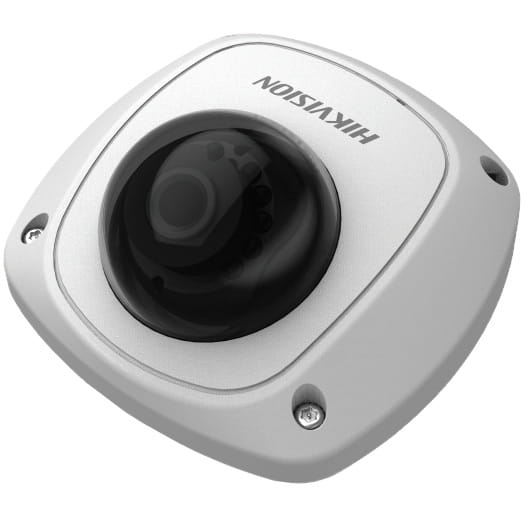

DS-2CD2512F-I(S) 1.3MP Mini Fixed Focal Network Camera
• Up to 1.3 megapixel (1280 x 960) resolution
• HD real-time video
• -I: IR LEDs (up to 10m)
• DWDR & 3D DNR & BLC
• Onboard storage (up to 64 GB)
• -S: Audio I/O, Alarm I/O
• IP66 protection
• Vandal-proof housing

DS-2CD2512F-I(S)
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination
0.19 lux@F2.0, AGC on
0 lux with IR
Shutter time 1/30s ~ 1/100,000s
Lens
4mm@F2.0, angle of view: 75.8°
(2.8mm, 6mm optional)
Lens mount M12
Day & night ICR
Digital noise reduc t ion 3D DNR
Wide dynamic ran g e Digital WDR
Backlight compensationYes, zone configurable
Compression standard
Video compression H.264 / MJPEG

Bit rate 32 Kbps ~ 16 Mbps
Max. image resolution1280 x 960
Frame rate 60Hz: 30fps (1280 x 960), 30fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable through client soft ware or web browser
Network
Network storage NAS
Motion detection, tampering alarm, network disconnect, IP addre ss conflict, storage exception
Alarm trigger
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNM P, HTTPS, FTP,
802.1x, Qos
System compatibility ONVIF, PSIA, CGI
General functionalitiesFlickerless, dual stream, heartbeat, mirror, user authenticatio n, video mask, watermark
Interface
Communication i n terface 1 RJ45 10M / 100M ethernet port
On-board storage Built-in Micro SD card slot, up to 64 GB
General
Operating conditio n s -30 °C ~ 60 °C (-22 °F ~ 140 °F), humidity 95% or less (non-condensing)
Power supply DC12V ± 10%, PoE (802.3af)
Power consumptionMax. 7W
Impact protection IEC60068-2-75Eh, 50J; EN50102, up to IK10
Ingress protection levelIP66
IR range Up to 10m
Dimensions 99.9 x 97.5 x 46.5 mm (3.93” x 3.84” x 1.83”)
Weight 250g (0.55 lbs)
Available models
DS-2CD2512F-I, DS-2CD2512F-IS
* -S (special order): Audio I/O interface and Alarm I/O interface.
* -I: IR LEDs, up to 10m.
* Includes Single Gang Box adapter plate.

HD Video

CMOS
CMOS
1/3”

IR

Megapixel
MP Camer a
1.3

3D

WDR
DIGITA L

IP66

For more information: ww w .hikvision.com
908 Canada Court
City of Industry, CA 91748
Tel: 909.895.0400, sales@hikvisionusa.com
Hikvision USA, Inc. Hikvision is constantly developing and improving products.
We reserve the rights to modify product and specifications without notice.
Updated 09/06/13
DS-1272ZJ-120B
Wall mount
DS-1270ZJ-120
Pendant cap for 25x2
mini dome (thread
adapters included)
Accessories
