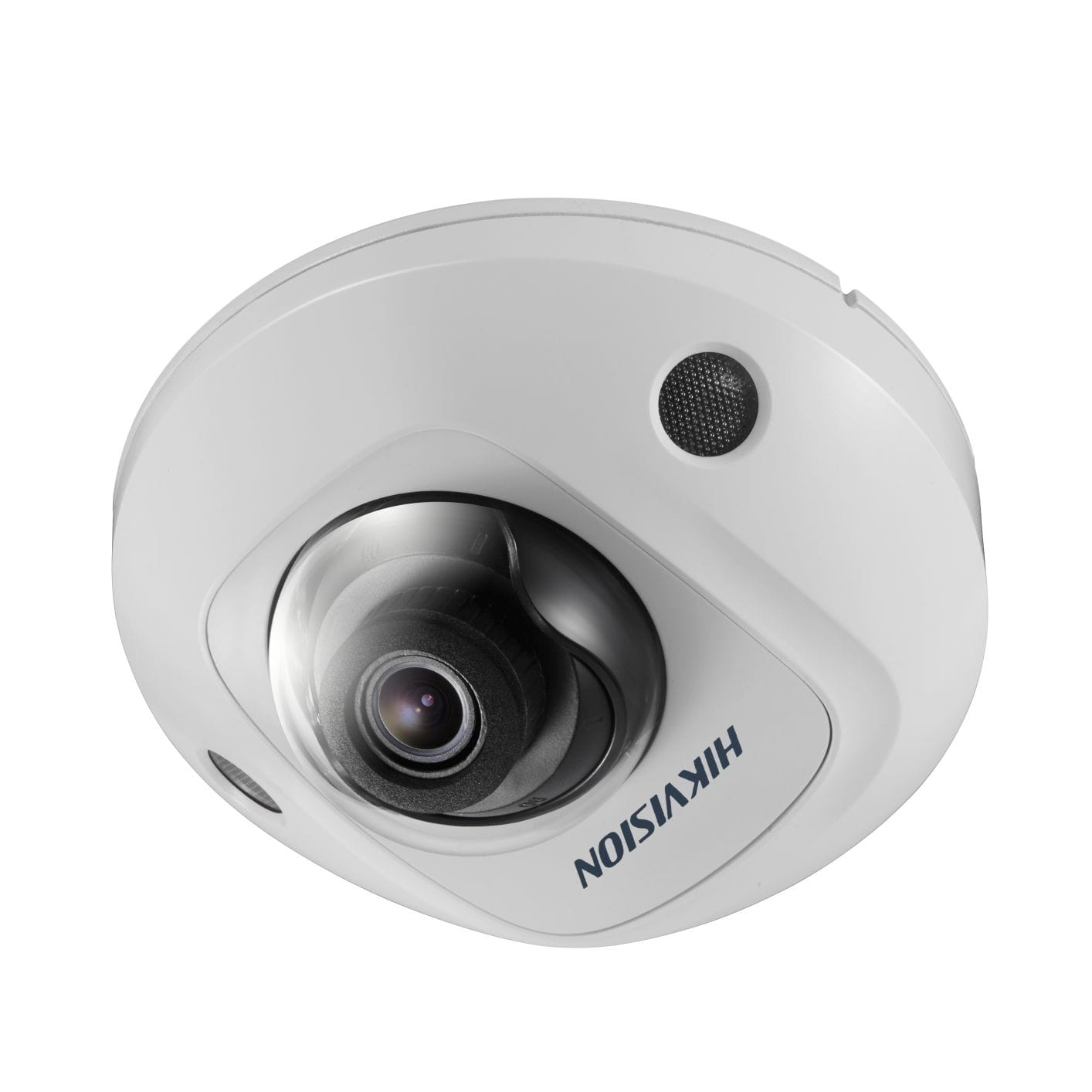

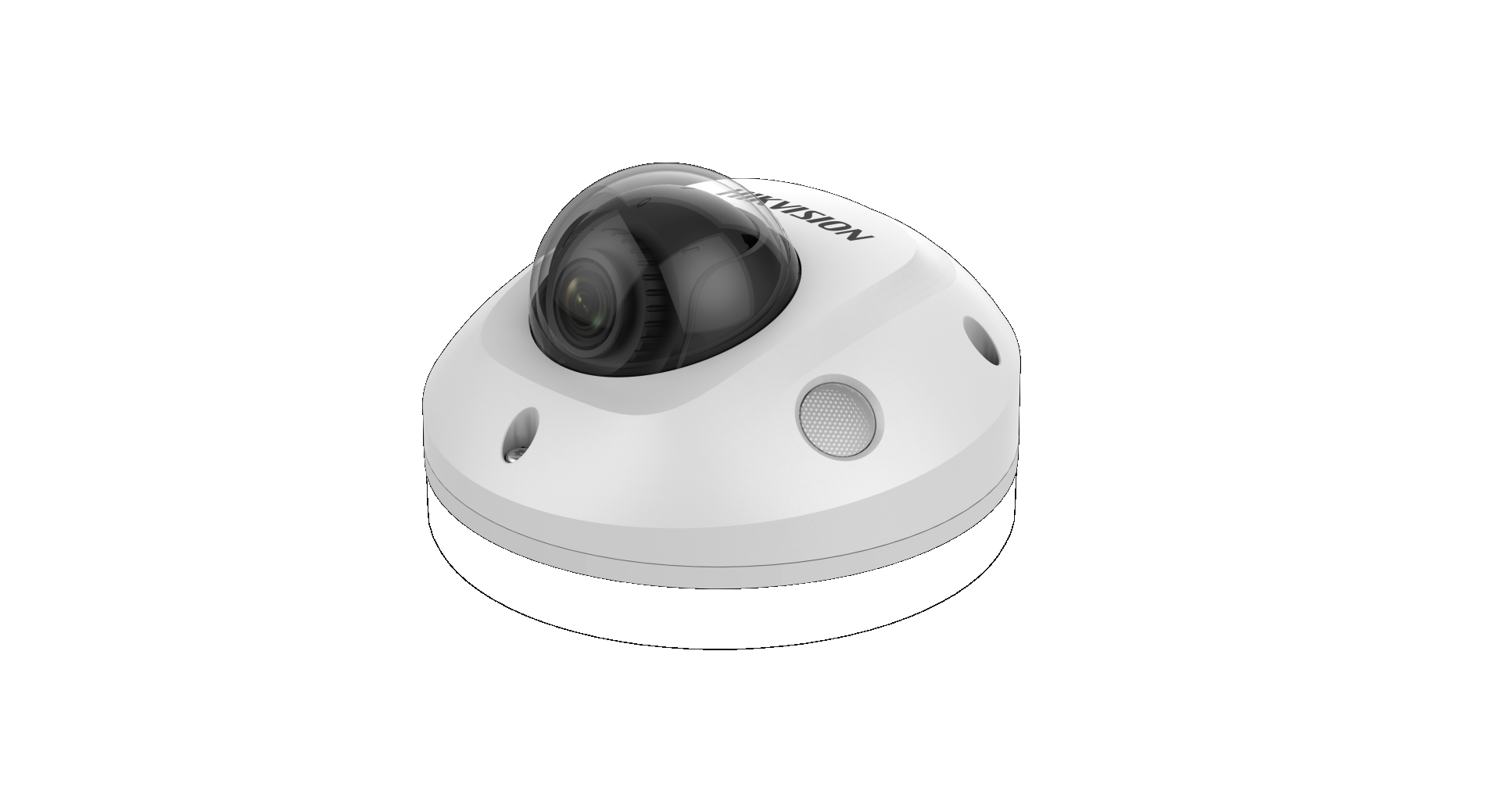

DS-2CD2543G0-IW(2.8mm)

Verfügbarkeit: 0
Preis: 241,18 € 241.18
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 311303263

Beschreibung

DS-2CD2543G0-I(W)(S)  4 MP EXIR Fixed Mini Dome Network Camera  * 2688 x 1520 @30fps  * IR: Up to 10 m  * H.265+. H.265  * 120dB WDR  * Built-in MicroSD/SDHC/SDXC slot, up to 128G  * PoE  * EXIR  * Wi-Fi (Optional)      Key Features          Specifications  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Focal Length 2.8, 4, 6 mm  Aperture F1.6  FOV  2.8 mm: Horizontal field of view: 98°, Vertical field of view: 55°, Diagonal field of view: 114°  4 mm: Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 93°  6 mm: Horizontal field of view: 48°, Vertical field of view: 27°, Diagonal field of view: 54°  Lens Mount M12  IR  IR Range Up to 10 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  Third stream: H.265/H.264

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

DS-2CD2543G0-I(W)(S)
4 MP EXIR Fixed Mini Dome Network Camera
* 2688 x 1520 @30fps
* IR: Up to 10 m
* H.265+. H.265
* 120dB WDR
* Built-in MicroSD/SDHC/SDXC slot, up to 128G
* PoE
* EXIR
* Wi-Fi (Optional)


Key Features




Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length 2.8, 4, 6 mm
Aperture F1.6
FOV
2.8 mm: Horizontal field of view: 98°, Vertical field of view: 55°, Diagonal field of view: 114°
4 mm: Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 93°
6 mm: Horizontal field of view: 48°, Vertical field of view: 27°, Diagonal field of view: 54°
Lens Mount M12
IR
IR Range Up to 10 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Yes
H.265 Type Main Profile
H.265+ Yes
Video Bit Rate 256 Kbps to 16 Mbps
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream separately
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
60Hz: 30fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser






Image Enhancement BLC/3D DNR
Day/Night Switch Auto/Schedule/Day/Night/Triggered by Alarm In (-S model)
Network
Network Storage Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error,
illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, QoS, IPv6
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio (-S model) 2 Inputs: line in (3.5 mm) or mic in (built-in microphone), 1 Output: line out (3.5 mm), mono sound
Alarm (-S model) 1 Input: Alarm in (3.5mm), 1 Output: Alarm out (3.5mm)
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
SVC Support H.264 and H.265 encoding
Wi-Fi (-W model)
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.412 GHz to 2.4835 GHz
Channel Bandwidth 20M/40M
Protocols
802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK
Security WPA, WPA2
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 m
Audio (-S model)
Environment Noise Filtering Yes
Audio Sampling Rate 16 kHz, 32kHz, 44.1kHz, 48kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.7A, max. 8.5W, Φ 5.5mm coaxial plug power
PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W
Protection Level IK08, IP66
Material Front cover: plastic, Bottom base: metal
Dimensions Φ110 mm x 56.4 mm (Φ4.3" x 2.2")
Weight Camera: Approx. 400 g (0.9 lb.)
Available Models:
DS-2CD2543G0-I(2.8/4/6 mm), DS-2CD2543G0-IS(2.8/4/6 mm), DS-2CD2543G0-IW(2.8/4/6 mm),
DS-2CD2543G0-IWS(2.8/4/6 mm)






56
.4
(2
.2
")
41
.7
(1
.6
")




DS-1280ZJ-DM22
Junction Box


Accessories
Dimensions
