Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CD2642FWD-I(Z)(S)
4MP WDR Vari-focal Bullet Network Camera



Unit: mm






* 1/3” Progressive Scan CMOS
* Up to 4 megapixel resolution
* 120dB WDR
* 3D DNR
* Motorized lens 2.8-12mm (-Z)
* Up to 30 meters IR range
* Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
* Audio/alarm I/O (-S)
* Mobile Monitoring via Hik-Connect
* 12V DC±25% & PoE(802.3af Class3)
* Support H.264+
* IP67



Accessories
DS-1275ZJ
Vertical pole mount

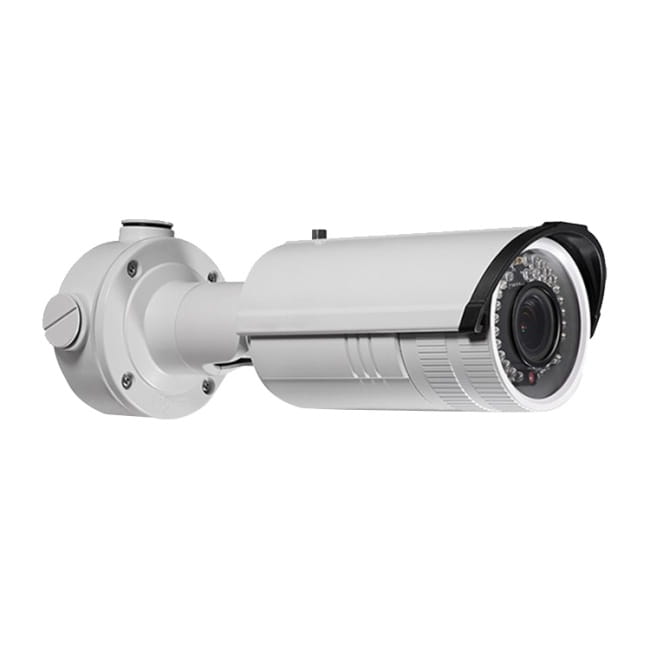

DS-1260ZJ
Junction box





Specification
Camera
Image Sensor 1/3’’ Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s ~ 1/100,000 s
Slow Shutter Support
Lens 2.8 - 12 mm @ F1.4, motorized lens (-Z), angle of view: 112°~33.8°
Lens Mount Φ14
Day & Night IR cut filter with auto switch
WDR 120dB
Compression Standard

Video Compression H.264/MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps – 16 Mbps
Audio (-S)
G.711/G.722.1/G.726/MP2L2
64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution 2688x1520
Max Frame Rate
50Hz:Main stream:20fps(2688x1520),25fps(1920x1080), 25fps(1280x720), Sub stream:25fps(352x288),25fps(640x360)
60Hz: Main stream:20fps(2688x1520),30fps(1920x1080),30fps(1280x720),Sub stream: 30fps(352x240),30fps(640x360)
Image Enhancement BLC/3D DNR/ROI
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Day/Night Switch Auto/Schedule/Triggered by Alarm In
Network
Network Storage NAS (Support NFS,SMB/CIFS); ANR, Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Detection Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis
Face Detection Detects the face appears in the surveillance scene and triggers linkage methods such as alarm info and email info
Alarm Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X,
QoS, IPv6, Bonjour
General Function
One-key reset, Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering,
anonymous access
Standard ONVIF (PROFILE S, PROFILE G), ISAPI
General
Interface 1 RJ45 10M/100M Ethernet interface, 1Vp-p composite output (75 Ω/BNC)
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power 12V DC±25%, PoE (802.3af Class3) , Max. 5.5 W (Max. 7.5 W with IR cut filter on)
Material Front Cover & Body & Sun shield & Bracket: Metal
Ingress Protection IP67
IR Range 20~30 meters
Dimensions 95x105x258.6 mm (3.74” x 4.13” x 10.18”)
Weight 1200g (2.65 lbs)
Order Model
DS-2CD2642FWD-I, DS-2CD2642FWD-IS, DS-2CD2642FWD-IZ, DS-2CD2642FWD-IZS


DS-2CD2642FWD-I(Z)(S)
4MP WDR Vari-focal Bullet
Network Camera
