DS-2CD2646G2-IZSU/SL

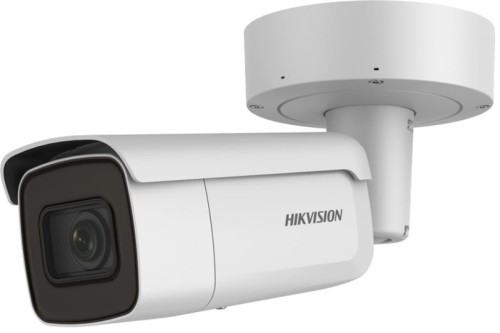

AcuSense 4 MP IR Varifocal Bullet Network Camera

















 High quality imaging with 4 MP resolution
 Excellent low-light performance with
powered-by-DarkFighter technology

 Clear imaging against strong back light due to 120 dB true
WDR technology

 Efficient H.265+ compression technology
 False alarm reduction through human and vehicle target
classification based on deep learning

 Active strobe light and audio alarm to warn intruders off
 Provides real-time security via built-in two-way audio
 Water and dust resistant (IP66) and vandal resistant (IK10)

AcuSense
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms
to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or
vehicles, vastly improving alarm efficiency and effectiveness.







 Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Power-off Memory Yes
Lens
Focus Auto
Lens Type & FOV
2.8 to 12mm, horizontal FOV 107.7° to 30.3°, vertical FOV 56° to 17.1°, diagonal FOV
131° to 34.8°
Aperture F1.4
Lens Mount Ø14
Illuminator
IR Range Up to 60 m
Wavelength 850 nm
Smart Supplement Light Yes
Visual Alarm Yes
Video
Max. Resolution 2592 x 1944
Main Stream
50Hz: 20fps (2592 x 1944)
25fps (2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 20fps (2592 x 1944)
30fps (2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 480, 640 x 360, 360 x 240)
60Hz: 30fps (1280 x 720, 640 x 480, 640 x 360, 360 x 240)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for each stream



Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate
64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/
8-320Kbps(MP3)
Network
Simultaneous Live View Up to 6 channels
API ONVIF(PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth Streaming Yes
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and
digest authentication for ONVIF
Network Storage
microSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto
network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interface
Alarm 1 input, 1 output (max. 12 VDC or 24 VAC, 1 A)
Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance:
4.7 KΩ, interface type: non-equilibrium
1 output (line out), 3.5 mm terminal block, output amplitude: 3.3 Vpp, output
impedance: 100 Ω, interface type: non-equilibrium
1 built-in speaker, 1 built-in microphone
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Intelligent (Traditional Algorithm)
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error), scene change detection
Intelligent (Deep Learning Algorithm)
Face Capture Yes
Premier Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection



General
Linkage Method
Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture,
strobe light, audible warning
*Note: External device is required.
Web Client Language
33 languages:
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel
counter
Software Reset Yes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE: 802.3at, Class4
Power Consumption and
Current
12 VDC, 1.25 A, max. 15 W
PoE: (802.3at, 42.5 V to 57 V), 0.5 A to 0.3 A, max. 18 W
Power Interface Two-core terminal block
Material Aluminum alloy body
Camera Dimension Ø144 x 342.6 mm (Ø5.7" x 13.5")
Package Dimension 385 x 190 x 180 mm (15.2" x 7.5" x 7.1")
Camera Weight Approx. 1470 g (3.2 lb.)
With Package Weight Approx. 2599 g (5.7 lb.)
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 );
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); BIS (IS
13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection Ingression protection: IP66 (IEC 60529-2013), IK 10 (IEC 60529-2013)







 Available Model
DS-2CD2646G2-IZSU/SL(2.8 to 12 mm)



 Dimension



 Accessory

DS-1275ZJ-S-SUS DS-2251ZJ DS-1476ZJ-SUS
Vertical Pole Mount Pendant Mount Corner Mount
