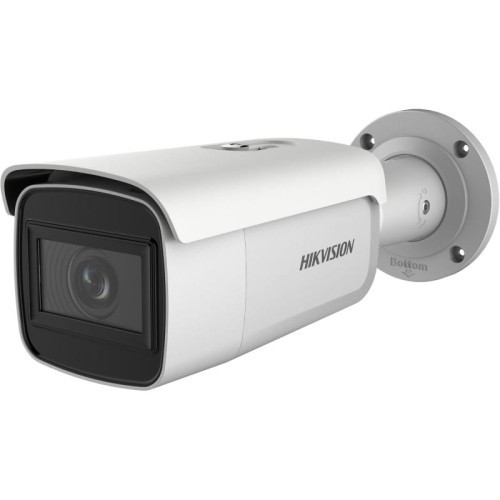

DS-2CD2683G1-IZS(2.8-12mm)

* BLC/3D DNR/ROI/HLC  * IP67  * Built-in micro SD/SDHC/SDXC card slot,  up to 128 GB    DS-2CD2683G1-IZ(S)  8 MP IR Varifocal Bullet Network Camera    * 1/2.5" Progressive Scan CMOS  * 3840 x 2160 @15 fps  * 2.8 to 12 mm varifocal lens  * Color: 0.01 Lux @ (F1.2, AGC ON), 0.018  Lux @ (F1.6, AGC ON), 0 Lux with IR  * H.265+, H.265, H.264+, H.264  * 2 Behavior analyses  * 120dB WDR    Key Features          Specifications  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°  Lens  Focal Length 2.8 to 12 mm  Lens Type Motorized  Aperture F1.6  Focus Auto  FOV  Horizontal field of view: 105° to 34.5°  Vertical field of view: 55° to 19°  Diagonal field of view: 125° to 40°  Lens Mount Φ14  IR  IR Range Up to 50 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub-stream...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CD2683G2-IZS(2.8-12mm)

Ersatzproduktcode: 311316091

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

* BLC/3D DNR/ROI/HLC
* IP67
* Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB

DS-2CD2683G1-IZ(S)
8 MP IR Varifocal Bullet Network Camera

* 1/2.5" Progressive Scan CMOS
* 3840 x 2160 @15 fps
* 2.8 to 12 mm varifocal lens
* Color: 0.01 Lux @ (F1.2, AGC ON), 0.018
Lux @ (F1.6, AGC ON), 0 Lux with IR
* H.265+, H.265, H.264+, H.264
* 2 Behavior analyses
* 120dB WDR

Key Features




Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°
Lens
Focal Length 2.8 to 12 mm
Lens Type Motorized
Aperture F1.6
Focus Auto
FOV
Horizontal field of view: 105° to 34.5°
Vertical field of view: 55° to 19°
Diagonal field of view: 125° to 40°
Lens Mount Φ14
IR
IR Range Up to 50 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 3840 x 2160
Main Stream
50Hz: 12.5 fps (3840 x 2160), 20fps (3072 x 1728), 25 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 15 fps (3840 x 2160), 20fps (3072 x 1728), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR/HLC
Image Settings Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web






browser
Target Cropping No
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
* Note: When the main stream resolution is 3840 x 2160, max frame rate is 12.5(50Hz)/15 fps(60Hz) for all streams. When the main
stream resolution is 3072 x 1728, max frame rate is 20 fps for all streams.
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.80
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Interface
Audio (-S) 1 input (line in), 1 output (line out), mono sound, terminal block
Alarm (-S) 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Output 1Vp-p composite output (75 Ω) (For adjustment only)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding support
Reset Button Yes
Audio (-S)
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial power plug
PoE (802.3at, class 4)
Power Consumption and
Current
12 VDC, 1.2A, max. 14.5W
PoE (802.3at, 42.5V to 57V), 0.5A to 0.3A, max. 18W
Protection Level IP67
Material Metal
Dimensions Φ 105.1 x 297.5 mm (Φ 4.1" x 11.7")
Weight
Camera: Approx. 1335 g (2.9 lb.)
With Package: 2004g (4.4lb.)
Available Model:
DS-2CD2683G1-IZ(2.8 to 12 mm), DS-2CD2683G1-IZS(2.8 to 12 mm)








297.5 mm (11.7")
288.2 mm (11.2")Φ105.1 (4.1")62.6 (2.5")
62
.6
(2
.5
")
93
(3
.7
")
4-Φ4.2(0.2")









DS-1276ZJ-SUS
Corner Mount
DS-1260ZJ
Junction Box
DS-1280ZJ-S
Junction Box
DS-1275ZJ-S-SUS
Vertical Pole Mount



Dimensions
Accessories
