DS-2CD2722FWD-IS(2.8-12mm)
product unavailable
zur Wunschliste hinzufügenBeschreibung
DS-2CD2722FWD-I(Z)(S) 2MP WDR Vari-focal Dome Network Camera Unit: mm 1/2.8” Progressive Scan CMOS Up to 2 megapixel resolution 120dB WDR 3D DNR Motorized lens 2.8-12mm (-Z) Up to 30 meters IR range Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB Audio/alarm I/O (-S) Mobile Monitoring via EZVIZ P2P or iVMS-4500 12V DC±10% & PoE(802.3af) Support H.264+ IP66 IK10 Accessories DS-1227ZJ In-ceiling mount DS-1280ZJ-DM21 Junction box DS-1273ZJ-135 Wall mount DS-1273ZJ-135B Wall mount with Junction box Specification Camera Image Sensor 1/2.8’’ Progressive Scan CMOS Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR Shutter Speed 1/3 s ~ 1/10,000 s Slow Shutter Support Lens 2.8 - 12 mm @ F1.4, motorized lens (-Z) Angle Adjustment Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355° Lens Mount Φ14 Day & Night IR cut filter with auto switch WDR 120dB Compress...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:

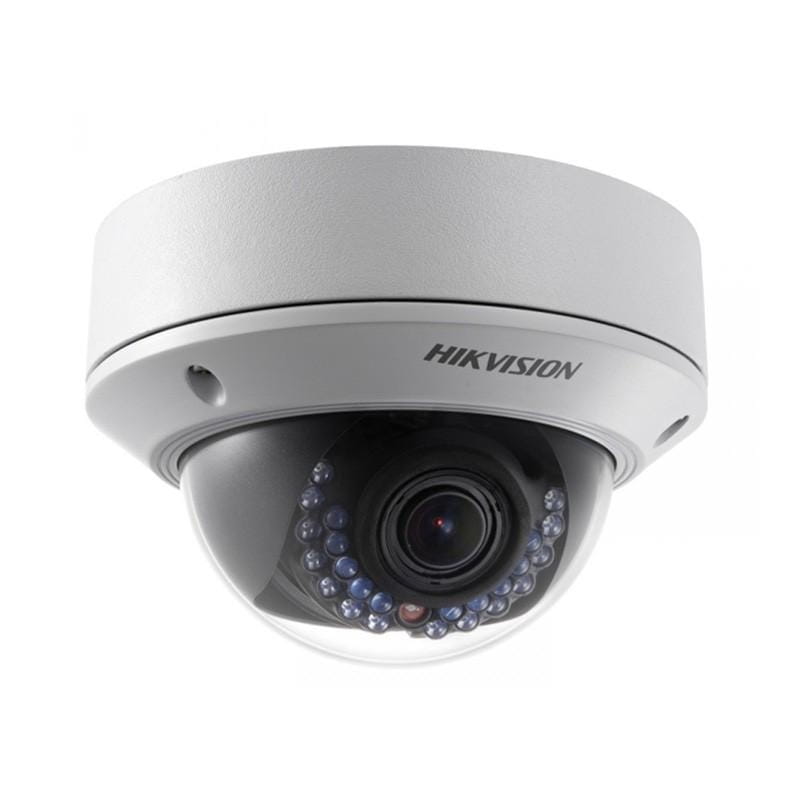

DS-2CD2722FWD-I(Z)(S)
2MP WDR Vari-focal Dome Network Camera
Unit: mm
1/2.8” Progressive Scan CMOS
Up to 2 megapixel resolution
120dB WDR
3D DNR
Motorized lens 2.8-12mm (-Z)
Up to 30 meters IR range
Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Audio/alarm I/O (-S)
Mobile Monitoring via EZVIZ P2P or iVMS-4500
12V DC±10% & PoE(802.3af)
Support H.264+
IP66
IK10
Accessories
DS-1227ZJ
In-ceiling mount
DS-1280ZJ-DM21
Junction box
DS-1273ZJ-135
Wall mount
DS-1273ZJ-135B
Wall mount with Junction box
Specification
Camera
Image Sensor 1/2.8’’ Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s ~ 1/10,000 s
Slow Shutter Support
Lens 2.8 - 12 mm @ F1.4, motorized lens (-Z)
Angle Adjustment Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Lens Mount Φ14
Day & Night IR cut filter with auto switch
WDR 120dB
Compression
Standard
Video Compression H.264/MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps – 16 Mbps
Audio (-S) G.711/G.722.1/G.726/MP2L2, 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution 1920 x 1080
Frame Rate
50Hz: 25fps(1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Enhancement BLC/3D DNR/ROI
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Day/Night Switch Auto/Schedule/Triggered by Alarm In
Network
Network Storage NAS (Support NFS,SMB/CIFS); ANR, Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Alarm Trigger
Intrusion Detection, Line Crossing detection, Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP
address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X,
QoS, IPv6, Bonjour
Security
One-key reset, flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address
filtering, anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General
Interface 1 RJ45 10M/100M Ethernet interface
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply 12V DC±10%, PoE (802.3af)
Power Consumption Max. 5.5 W
Ingress Protection IP66
Impact Protection IEC60068-275Eh, 20J; EN50102, up to IK10
IR Range 20~30 meters
Dimensions Φ 140 x 99.9 mm (Φ 5.51” x 3.94”)
Weight 1000g (2.20lbs)
Order Model
DS-2CD2722FWD-I, DS-2CD2722FWD-IS, DS-2CD2722FWD-IZ, DS-2CD2722FWD-IZS
DS-2CD2722WD-I(Z)(S)
2MP WDR Vari-focal Dome
Network Camera
