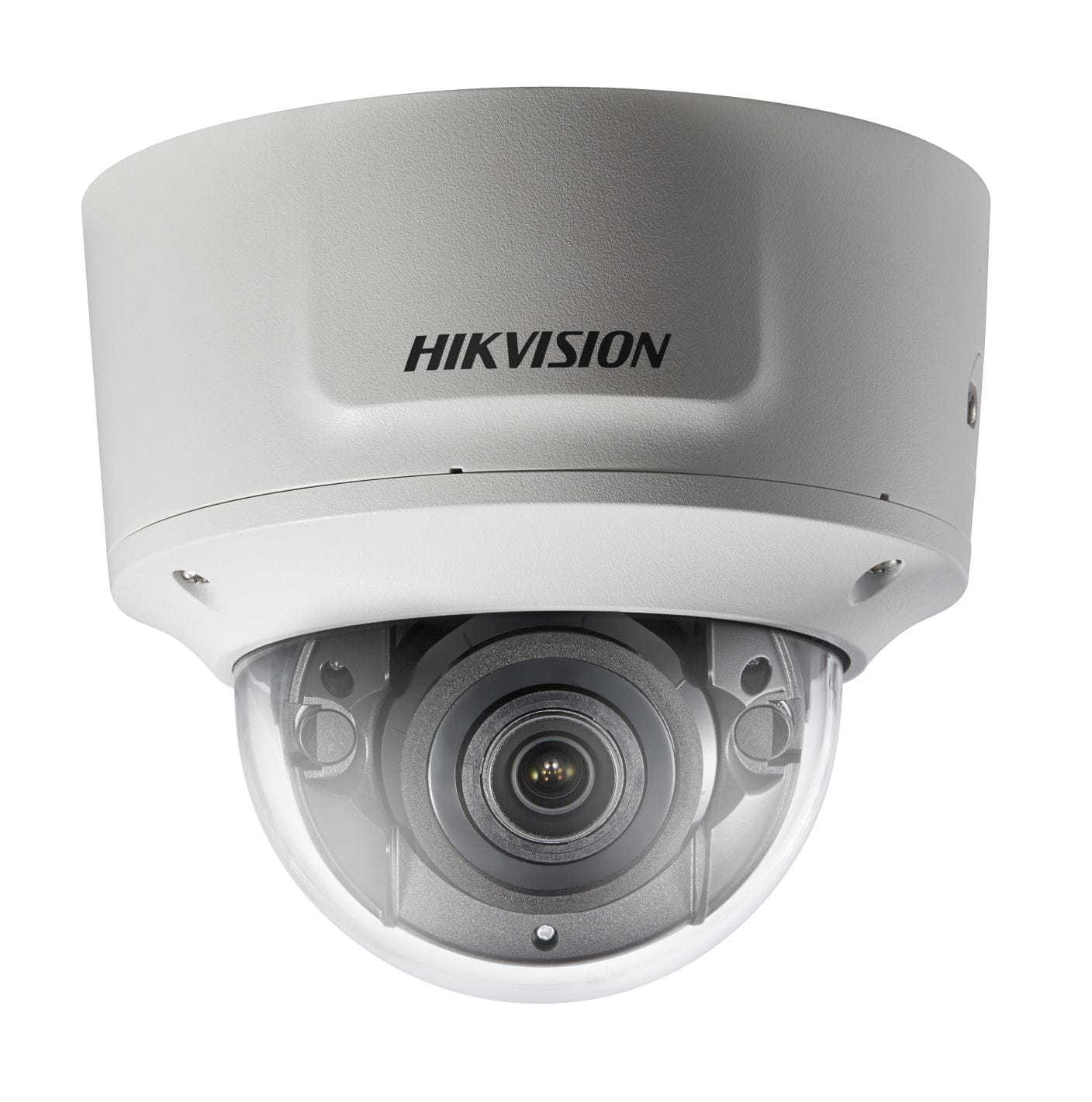

DS-2CD2742FWD-IS(2.8-12mm)

©2006 – 2014 by HIKVISION. All rights reserved.  1  DS-2CD2742FWD-I(S)(Z)      Key Features   Up to 4 megapixel 2688x1520 @ 20fps resolution   Standard video compression with high compression ratio, ROI (region of interest) encoding   Progressive scan CMOS, capture motion video without incised margin   Support dual stream, and the sub-stream for mobile surveillance   High-performance and long service life Infrared LED, Approx. 10 to 20 meters IR range   Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB   Support 120dB wide dynamic range   IR cut filter with auto switch   Vari-focus   Motorized lens (-Z)   Alarm & audio I/O (-S)   PoE (Power over Ethernet)   Ingress Protection level: IP66   Electronic shutter for different surveillance environments   Impact Protection: IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10   Other functions: reset, heartbeat, mirror, etc   3-axis adjustment   Support VCA, which is compatible with NVR for the second time of video searching and analysing  Specification   Model  Parameter  DS-2CD2742FWD-I(S)(Z)  4 Megapixel Vandal-proof Network Dome Camera     ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CD2742FWD-I(S)(Z)


Key Features
 Up to 4 megapixel 2688x1520 @ 20fps resolution
 Standard video compression with high compression ratio, ROI (region of interest) encoding
 Progressive scan CMOS, capture motion video without incised margin
 Support dual stream, and the sub-stream for mobile surveillance
 High-performance and long service life Infrared LED, Approx. 10 to 20 meters IR range
 Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
 Support 120dB wide dynamic range
 IR cut filter with auto switch
 Vari-focus
 Motorized lens (-Z)
 Alarm & audio I/O (-S)
 PoE (Power over Ethernet)
 Ingress Protection level: IP66
 Electronic shutter for different surveillance environments
 Impact Protection: IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10
 Other functions: reset, heartbeat, mirror, etc
 3-axis adjustment
 Support VCA, which is compatible with NVR for the second time of video searching and analysing
Specification
Model
Parameter
DS-2CD2742FWD-I(S)(Z)
4 Megapixel Vandal-proof Network Dome Camera



©2006 – 2014 by HIKVISION. All rights reserved.
2
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination
0.01Lux @(F1.2,AGC ON), 0 Lux with IR
0.014Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens
2.8 - 12 mm @ F1.4
-Z: motorized lens
Angle Adjustment Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Lens Mount Φ14
Day &Night IR cut filter with auto switch
Digital Noise
Reduction
3D DNR
Wide Dynamic Range 120dB
Compression Standard
Video Compression H.264/ MJPEG
H.264 Compression
Type
Main Profile
Video Bit Rate 256 Kbps – 16 Mbps
Audio
Compression(-S)
G.711/G.722.1/G.726/MP2L2
Audio Bit Rate(-S) 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) /
32-128Kbps(MP2L2)
Dual Stream Yes
Max. Resolution 2688x1520
Frame Rate
50Hz: 20fps (2688x1520), 25fps(1920x1080), 25fps(1280x720)
60Hz: 20fps (2688x1520), 30fps (1920x1080), 30fps(1280x720)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client
software or web browser
Backlight
compensation
Yes, zone optional
ROI Support
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion Detection, Line Crossing detection, Motion detection,
Dynamic analysis, Tampering alarm, Network disconnect , IP address
conflict, Storage exception
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security
One-key reset, Flash-prevention, dual stream, heartbeat, mirror,
password protection, privacy mask, watermark, IP address filtering,



©2006 – 2014 by HIKVISION. All rights reserved.
3
Anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet interface
Alarm interface 1 alarm I/O (-S)
Audio interface 1 audio I/O (-S)
On-board storage Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Reset Button Yes
General
Operating Conditions
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power Supply
12 V DC ± 10%
PoE (802.3af)
Power Consumption Max. 5.5 W
Ingress Protection
level
IP66
Impact Protection IEC60068-275Eh, 20J; EN50102, up to IK10
IR Range 10~20 meters
Dimensions Φ 140 x 99.9 mm (Φ 5.51” x 3.94”)
Weight 1000g
Order Models
DS-2CD2742FWD-I, DS-2CD2742FWD-IS, DS-2CD2742FWD-IZ, DS-2CD2742FWD-ISZ
Dimensions
Unit: mm





©2006 – 2014 by HIKVISION. All rights reserved.
4
Accessories


In-ceiling mount Wall mount Junction box
DS-1227ZJ DS-1273ZJ-135 DS-1280ZJ-DM21
