DS-2CD2745FWD-IZS(2.8-12mm)

Verfügbarkeit: 0
Preis: 377,38 € 377.38
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 311303021

Beschreibung

DS-2CD2745FWD-IZS  4 MP IR VF Dome Network Camera  * BLC/3D DNR/ROI  * IP67, IK10  * Built-in microSD/SDHC/SDXC card slot, up  to 128 GB    * 1/2.5" Progressive Scan CMOS  * 2560 x 1440@30 fps  * 2.8 to 12 mm motorized varifocal lens  * Color: 0.009 lux @(F1.2, AGC ON), 0.016  lux @(F1.6, AGC ON), 0 lux with IR  * H.265+, H.265, H.264+, H.264  * 4 Behavior analyses  * 120dB WDR      Key Features          Specifications  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination Color: 0.009 lux @(F1.2, AGC ON), 0.016 lux @(F1.6, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Focal Length 2.8 to 12 mm  Aperture F1.2  Focus Auto  FOV 2.8 mm to 12 mm, horizontal FOV: 114° to 32°, vertical FOV: 59° to 18°, diagonal FOV: 141° to 36.5°  Lens Mount Φ14  IR  IR Range Up to 30 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub-stream: H.265/H.264/MJPEG  Third str...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

DS-2CD2745FWD-IZS

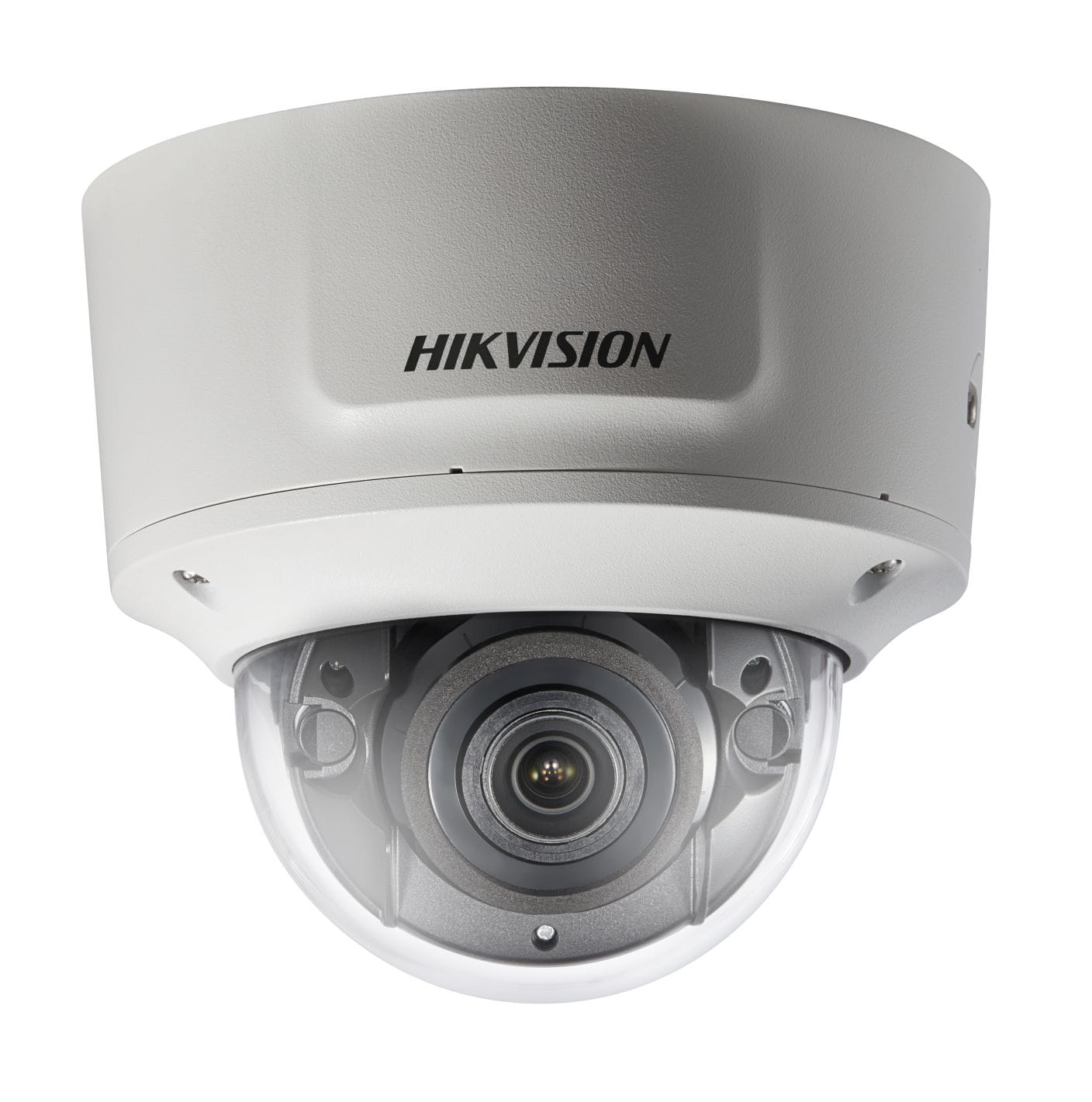

4 MP IR VF Dome Network Camera
* BLC/3D DNR/ROI
* IP67, IK10
* Built-in microSD/SDHC/SDXC card slot, up
to 128 GB

* 1/2.5" Progressive Scan CMOS
* 2560 x 1440@30 fps
* 2.8 to 12 mm motorized varifocal lens
* Color: 0.009 lux @(F1.2, AGC ON), 0.016
lux @(F1.6, AGC ON), 0 lux with IR
* H.265+, H.265, H.264+, H.264
* 4 Behavior analyses
* 120dB WDR


Key Features




Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.009 lux @(F1.2, AGC ON), 0.016 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focal Length 2.8 to 12 mm
Aperture F1.2
Focus Auto
FOV 2.8 mm to 12 mm, horizontal FOV: 114° to 32°, vertical FOV: 59° to 18°, diagonal FOV: 141° to 36.5°
Lens Mount Φ14
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Yes
H.265 Type Main Profile
H.265+ Yes
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, object removal detection, unattended baggage
detection
Exception Detection Scene change detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 2560 x 1440
Main Stream
50Hz: 25 fps (2560 x 1440, 2304 x 1296, 1920 x 1080)
60Hz:30 fps (2560 x 1440, 2304 x 1296, 1920 x 1080)
Sub-Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25 fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30 fps (1280 x 720, 640 x 360, 352 x 240)









Image Enhancement BLC/3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client
software or web browser
Target Cropping No
SVC H.264 and H.265 encoding support
Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in
Network
Network Storage Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.5
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 Levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarm 1 input, 1 output
Video Output 1Vp-p Composite Output(75Ω) (For adjustment only)
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, terminal block for DC input
PoE(802.3af, class 3)
Power Consumption and
Current
12 VDC, 1 A, max. 11 W
PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.5 W
Protection Level IP67, IK10
Material Metal
Dimensions Φ153.4 x 133.1 mm (Φ6" x 5.2")
Weight Camera: 1287 g (2.8 lb.)
Available Model:
DS-2CD2745FWD-IZS(2.8 to 12 mm)




133
.1
mm
(5.2")
82.5 mm (3.3")
118
.8
mm
(4.7")
83
.5
mm
(3.3")
31.5 mm (1.2")
46 mm (1.8")






DS-1471ZJ-155
Pendant Mount
DS-1473ZJ-155
Wall Mount
DS-1475ZJ-SUS
Vertical Pole Mount
DS-1476ZJ-SUS
Corner Mount




Accessories
Dimensions
