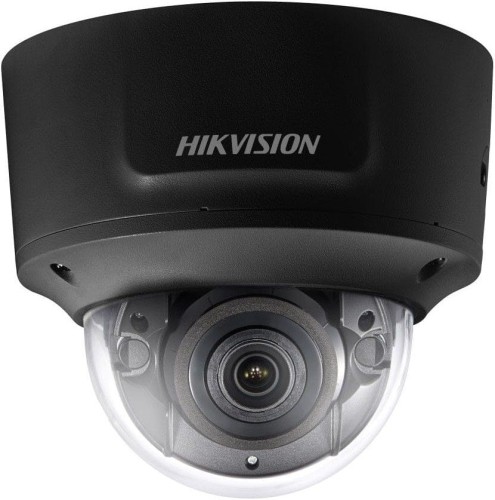

DS-2CD2785FWD-IZS(2.8-12mm)(B)(Black)

DS-2CD2785FWD-IZS  8 MP WDR Vari-focal Network Dome Camera  * BLC/3D DNR/ROI  * Smart encoding: Support low bit rate, low  latency  * 4 behavior analyses and face detection    * 1/2.5" Progressive Scan CMOS  * 3840 x 2160 resolution  * H.265, H.265+  * 120dB WDR  * IP67, IK10    Key Features          Specifications  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination  Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Support  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Focal length 2.8 to 12 mm  Aperture F1.4  FOV  Horizontal field of view: 120° to 36°  Vertical field of view: 62° to 20.5°  Diagonal field of view: 149° to 42°  Lens Mount Φ  IR  IR Range Up to 30 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265+/H.265/H.264+/H.264  Sub stream: H.265+/H.265/H.264+/H.264/MJPEG  Third stream: H.265+/H.265/H.264+/H.264  H.264 Type Main Profile/High Pro...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CD2785FWD-IZS
8 MP WDR Vari-focal Network Dome Camera
* BLC/3D DNR/ROI
* Smart encoding: Support low bit rate, low
latency
* 4 behavior analyses and face detection

* 1/2.5" Progressive Scan CMOS
* 3840 x 2160 resolution
* H.265, H.265+
* 120dB WDR
* IP67, IK10

Key Features




Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focal length 2.8 to 12 mm
Aperture F1.4
FOV
Horizontal field of view: 120° to 36°
Vertical field of view: 62° to 20.5°
Diagonal field of view: 149° to 42°
Lens Mount Φ
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265+/H.265/H.264+/H.264/MJPEG
Third stream: H.265+/H.265/H.264+/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2
Audio Bit Rate 32 to 128kbps
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Face Detection Support
Region of Interest Support 1 fixed region for each stream
Max. Resolution 3840 x 2160
Main Stream
50Hz: 20 fps (3840 x 2160), 25 fps (2944 x 1656, 2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 20 fps (3840 x 2160), 30 fps (2944 x 1656, 2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 360, 352 x 288)
60Hz: 30fps (640 x 360, 352 x 240)
Third Stream
50Hz: 25fps (1280 x720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Setting Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser













Day/Night Switch Auto/Schedule/Triggered by Alarm In
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error, Alarm input, Alarm output
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask,
watermark, IP address filter
API ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, iVMS-4500, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 input (line in, 3.5 mm), 1 output(3.5 mm), single track
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Video Output 1Vp-p composite output (75 Ω/BNC)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 encoding supports
Reset Button Support
Audio
Environment Noise Filtering Support
Audio Sampling Rate 16 kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, PoE (802.3af)
Terminal block for DC input
Power Consumption and
Current
12 VDC, 0.95A, max. 11.5W
PoE (802.3af, 37V to 57V), 0.1A to 0.3A, max. 12.9W
Protection Level IP67, IK10
Material Metal
Dimensions Φ153.4 x 133.1 mm (Φ6.04" x 5.24")
Weight Camera: 1287 g (2.84 lb.)





1
3
3
.
1

m
m

(
5
.
2
4"
)
Φ153.4 mm
(6.04")
82.5 mm (3.25")
1
1
8
.
8

m
m

(
4
.
6
8"
)
8
3.
5

m
m

(
3
.
2
9"
)
31.5 mm (1.24")
Φ
1
4
0

m
m

(
5
.
5
1"
)
46 mm (1.81")
Φ
4
.
5
m
m

(
0
.
1
8"
)
Φ
4
5
m
m

(
1
.
7
7"
)






DS-1271ZJ-155
Pendant Mount
DS-1273ZJ-155
Wall Mount






Accessories
Dimensions
Available Model:
DS-2CD2785FWD-IZS
