DS-2CD2786G2-IZS

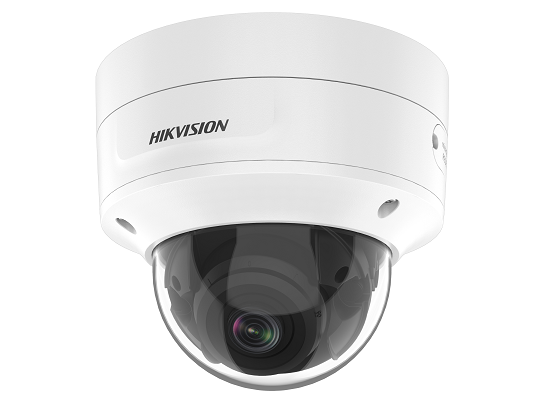

8 MP IR Varifocal Dome Network Camera









● 1/2" Progressive Scan CMOS
● 3840 x 2160 @ 20fps
● 2.8 to 12 mm varifocal lens
● 120dB WDR
● Powered by Darkfighter

● H.265+, H.265, H.264+, H.264
● Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
● IP66, IK10
● Human and vehicle classification alarm based on deep
learning.

AcuSense
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification
alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than
humans or vehicles, vastly improving alarm efficiency and effectiveness.





Specifications

Camera
Image Sensor 1/2" progressive scan CMOS
Min. Illumination Color: 0.011 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed 1/3s to 1/100,000s
Slow Shutter Yes
Wide Dynamic Range 120dB
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Power-off Memory Yes
Lens
Focus Auto
Lens Type & FOV
2.8 to 12 mm, horizontal FOV 112° to 46°, vertical FOV 60°to 26°, diagonal FOV 133°to
53°
Aperture F1.4
Lens Mount Φ14
Illuminator
IR Range up to 30 m
Wavelength 850 nm
Smart Supplement Light Yes
Video
Max. Resolution 3840 x 2160
Main Stream
50Hz: 20fps (3840 x 2160, 3072 x 1728), 25fps (2688 x 1520,1920 x 1080, 1280 x 720)
60Hz: 20fps (3840 x 2160, 3072 x 1728), 30fps (2688 x 1520,1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
Video Compression
Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Stream Type Main stream/Sub-stream/third stream
Simultaneous Live View Up to 6 channels
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for each stream
* When the main stream resolution is 3840 x 2160, max frame rate is 20 fps for all streams.



Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-
320Kbps(MP3)
Sound Type Mono sound
Network
API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth Streaming Yes
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-MD5), watermark, IP address filter, basic and digest authentication for
HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS 1.2
Network Storage MicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
Image Enhancement BLC, HLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by
client software or web browser
Interface
Alarm 1 input, 1 output (max. 24 VDC, 1 A)
Audio 1 input (line in), 3.5 mm three-connector, 1 output (line out), 3.5 mm three-connector
On-board Storage up to 256 GB
Hardware Reset Yes
Communication Interface 10M/100M self-adaptive Ethernet port
Smart Feature-Set
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error), scene change detection
Premier Protection
Intrusion detection, line crossing detection, region entrance detection, region exiting
detection



General
Web Client Language
32 languages:
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
Software Reset Yes
Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, trigger capture, audible warning
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, two-core terminal block; PoE: 802.3af, Class 3
Power Consumption and
Current
12 VDC, 0.9 A, max. 10.8 W PoE: (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W
Power Interface 2-core terminal block
Material Metal
Camera Dimension Φ153.5 x 133.2 mm (Φ6″ x 5.2″)
Package Dimension 244 x 174 x 173 mm (9.6" x 6.9" x 6.8")
Camera Weight 1080 g (2.4 lb.)
With Package Weight 1671 g (3.7 lb.)
Approval
Protection Ingress protection: IP66 (IEC 60529-2013), IK10(IEC 62262:2002)
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32:
2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-
1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA
(IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the
same time.
Available Model
DS-2CD2786G2-IZS (2.8 to 12 mm)



Dimension
Unit: mm (inch)
153.3 [6.02"]
132
.
4
[
5
.
20
"]
46 [1.81"]
83
.
5
[
3
.
28
"]
133
.
1
[
5
.
23
"]


Accessory




DS-1476ZJ-SUS
Corner Mount
DS-1227ZJ-DM37
In-Ceiling Mount
DS-1471ZJ-155
Pendant Mount


DS-1475ZJ-SUS
Vertical pole mount
DS-1473ZJ-155
Wall Mount
DS-1473ZJ-155B
Wall Mount
