DS-2CD2E20F-W(4mm)

DS-2CD2E20F (-W)  2.0MP Recessed Mount Dome    Hikvision understands the importance of workplace aesthetics,  especially in smaller business environments where surveillance  gear can be more conspicuous. The Hikvision 2E Series  Recessed-mount IP Camera features HD resolution, on-board  storage, a Wi-Fi connection, ultra-compact design and a choice  in cover colors to blend in with your business environment,  making this camera the ideal solution for any small business or  office space. The camera is easy to install; prongs adjust to fit  any space and don't require installation tools.    * Up to 1920 x 1080 resolution  * Full HD1080p real-time video  * Efficient encoding capability  * Support SD/SDHC/SDXC card, up to 128GB  * Tool-free installation  * Support DC12V and PoE power supply  * 3D Digital Noise Reduction  * Digital WDR  * Dual-streams  * Backlight Compensation  * Mobile monitoring (IVMS-4500 or Hik-connect)  * Built-in Wi-Fi optional              Specification  Camera  Image Sensor 1/3’’ Progressive Scan CMOS  Min. Illumination 0.01 Lux @ F1.2, AGC ON  Shutter Speed 1/3s ~ 1/100,000s  Lens Type 4mm fixed lens (2.8mm/6mm lens ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

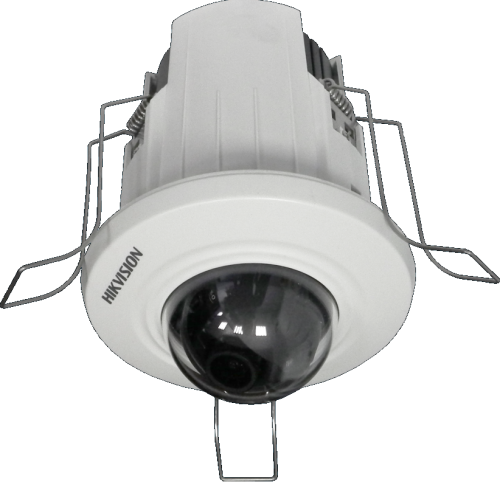

DS-2CD2E20F (-W)
2.0MP Recessed Mount Dome

Hikvision understands the importance of workplace aesthetics,
especially in smaller business environments where surveillance
gear can be more conspicuous. The Hikvision 2E Series
Recessed-mount IP Camera features HD resolution, on-board
storage, a Wi-Fi connection, ultra-compact design and a choice
in cover colors to blend in with your business environment,
making this camera the ideal solution for any small business or
office space. The camera is easy to install; prongs adjust to fit
any space and don't require installation tools.

* Up to 1920 x 1080 resolution
* Full HD1080p real-time video
* Efficient encoding capability
* Support SD/SDHC/SDXC card, up to 128GB
* Tool-free installation
* Support DC12V and PoE power supply
* 3D Digital Noise Reduction
* Digital WDR
* Dual-streams
* Backlight Compensation
* Mobile monitoring (IVMS-4500 or Hik-connect)
* Built-in Wi-Fi optional






Specification
Camera
Image Sensor 1/3’’ Progressive Scan CMOS
Min. Illumination 0.01 Lux @ F1.2, AGC ON
Shutter Speed 1/3s ~ 1/100,000s
Lens Type 4mm fixed lens (2.8mm/6mm lens optional)
Angle of view 4mm: 85°, 2.8mm: 106°, 6mm: 52°
Lens Mount M12
Day & Night Electronic
DNR 3D Digital Noise Reduction
WDR Digital WDR
Compression Standard
Video Compression H.264 / MJPEG
H.264 Type Baseline Profile / Main Profile
Video Bit Rate 32 Kbps – 8 Mbps
Dual streams Support
Max. Resolution 1920 x 1080
Frame Rate
50Hz: 25fps (1920 x 1080, 1280 x 960,1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960,1280 x 720)
Sub stream
50 Hz: 25 fps (320 x 240), 25 fps (352 x 288), 25 fps (640 x 480), 25fps(704 x 576)
60 Hz: 30 fps (320 x 240), 30 fps (352 x 288), 30 fps (640 x 480), 30fps(704 x 576)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Detection Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis
Alarm Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X,
QoS, IPv6, Bonjour
General
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address
filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
D/N Switch Auto/Schedule/Triggered by Alarm In
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

DS-2CD2E20F (-W)
2.0MP Recessed Mount Dome
Network Camera




Wi-Fi * only for –W models
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters *The performance varies based on actual environment.
General
Operating Conditions -10 °C ~ 40 °C (-14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af Class3)
Power Consumption Max. 4.7W
Dimensions Φ93.9x121.6
Weight 200g
Order Models
DS-2CD2E20F, DS-2CD2E20F-W


Accessories

Lens Cover
Golden Color

Lens Cover
Silver Color

Lens Cover
Black Color
Dimensions


DS-2CD2E20F (-W)
2.0MP Recessed Mount Dome
Network Camera
