DS-2CD2T22-I5(4mm)

Key features  Dimensions  • 2MP / 3MP high resolution  • HD real-time video  • DWDR & 3D DNR  • EXIR illuminators: up to 80m  • IP66  • PoE  • Bracket included    DS-2CD2T22-I3/-I5/-I8DS-2CD2T32-I3/-I5/-I8  Camera  Image sensor1/3” Progressive Scan CMOS  Min. illumination  0.01 Lux @(F1.2,AGC ON), 0 Lux with IR  0.014 Lux @(F1.4,AGC ON), 0 Lux with IR  0.07 Lux @(F1.2,AGC ON), 0 Lux with IR  0.1 Lux @(F1.4,AGC ON), 0 Lux with IR  Shutter time1/3 s to 1/100,000 s  Lens  4 mm @ F2.0 (6mm, 16mm optional)  Angle of view: 85°  4 mm @ F2.0 (6mm, 16mm optional)  Angle of view: 70°  Lens mountM12  Day & nightICR  Digital noise reduction3D DNR  Wide dynamic rangeDigital WDR  Compression Standard  Video compression H.264 / MJPEG  H.264 codec profileBaseLine Profile / Main Profile  Bit rate32 Kbps ~ 12 Mbps  Dual StreamYes  Image  Max. Image Resolution1920 X 10802048 x 1536  Frame rate  50 Hz: 25fps(1920 x 1080) 25 fps (1280 x  960) 25 fps (1280 x 720)  60 Hz: 25fps(1920 x 1080) 30 fps (1280 x  960) 30 fps (1280 x 720)  50Hz: 20fps (2048 x 1536) 25fps (1920 x  1080) 25fps (1280 x 720)  60Hz: 20fps (2048 x 1536) 30fps (1920 x  1080) 30fps (1280 x 720)  Ima...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key features
Dimensions
• 2MP / 3MP high resolution
• HD real-time video
• DWDR & 3D DNR
• EXIR illuminators: up to 80m
• IP66
• PoE
• Bracket included

DS-2CD2T22-I3/-I5/-I8DS-2CD2T32-I3/-I5/-I8
Camera
Image sensor1/3” Progressive Scan CMOS
Min. illumination
0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
0.07 Lux @(F1.2,AGC ON), 0 Lux with IR
0.1 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter time1/3 s to 1/100,000 s
Lens
4 mm @ F2.0 (6mm, 16mm optional)
Angle of view: 85°
4 mm @ F2.0 (6mm, 16mm optional)
Angle of view: 70°
Lens mountM12
Day & nightICR
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Compression Standard
Video compression H.264 / MJPEG
H.264 codec profileBaseLine Profile / Main Profile
Bit rate32 Kbps ~ 12 Mbps
Dual StreamYes
Max. Image Resolution1920 X 10802048 x 1536
Frame rate
50 Hz: 25fps(1920 x 1080) 25 fps (1280 x
960) 25 fps (1280 x 720)
60 Hz: 25fps(1920 x 1080) 30 fps (1280 x
960) 30 fps (1280 x 720)
50Hz: 20fps (2048 x 1536) 25fps (1920 x
1080) 25fps (1280 x 720)
60Hz: 20fps (2048 x 1536) 30fps (1920 x
1080) 30fps (1280 x 720)
Image settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web
browser
Backlight compensationYes, zone optional
ROISupport
Network
Network storageNAS
Alarm trigger
Motion detection, tampering alarm, scene change detection, face detection,
intrusion detection, Line crossing detection
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
System compatibilityONVIF, PSIA, CGI, ISAPI
General functionalitiesUser Authentication, Watermark, IP address filtering, Anonymous access
Interface
Communication interface1 RJ45 10M / 100M Ethernet interface
General
Operating conditions-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply12 VDC ± 10% , PoE (802.3af)
Power consumption
-I3: max. 5.5W
-I5: max. 7W
-I8: max 10W
-I3: max. 6W
-I5: max. 7.5W
-I8: max 10.5W
Ingress protection levelIP66
IR range
-I3: 1pcs EXIR LED, up to 30m
-I5: 2pcs EXIR LEDs, up to 50m
-I8: 4pcs EXIR LEDs, up to 80m
DimensionsΦ105mmx300mm
Weight1200g

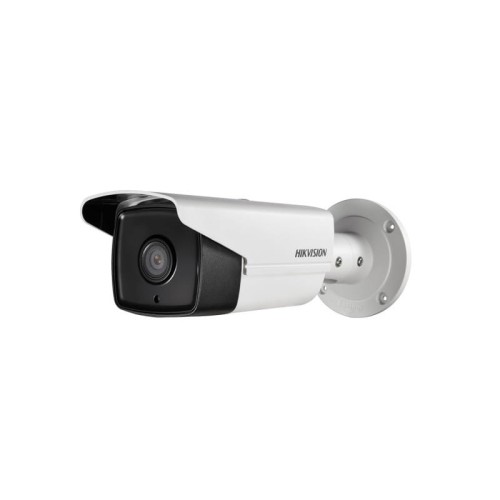

EXIR Bullet Network Camera
Available models
DS-2CD2T22-I3, DS-2CD2T22-I5, DS-2CD2T22-I8
DS-2CD2T32-I3, DS-2CD2T32-I5, DS-2CD2T32-I8
* 1.3MP model is also available -- DS-2CD2T12-I3/I5/I8
DS-2CD2T22-I3/-I5/-I8 (2.0MP)
DS-2CD2T32-I3/-I5/-I8 (3.0MP)
1/3
CMOS

Dual Stream

H.264

PoE

Scan

BLC
