DS-2CD2T26G2-ISU/SL(2.8mm)(C)

DS-2CD2T26G2-ISU/SL  2 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera                            Empowered by deep learning algorithms, Hikvision AcuSense  technology brings human and vehicle targets classification  alarms to front- and back-end devices. The system focuses  on human and vehicle targets, vastly improving alarm  efficiency and effectiveness.     High quality imaging with 2 MP resolution   Excellent low-light performance with  powered-by-DarkFighter technology   Clear imaging against strong back light due to 120 dB WDR  technology   Efficient H.265+ compression technology   Focus on human and vehicle targets classification based on  deep learning   Active strobe light and audio alarm to warn intruders off   Provides real-time security via built-in two-way audio   Water and dust resistant (IP67)               Specification  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  P/N P/N  Wide Dynamic Range 120 dB  Day & Nigh...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CD2T26G2-ISU/SL

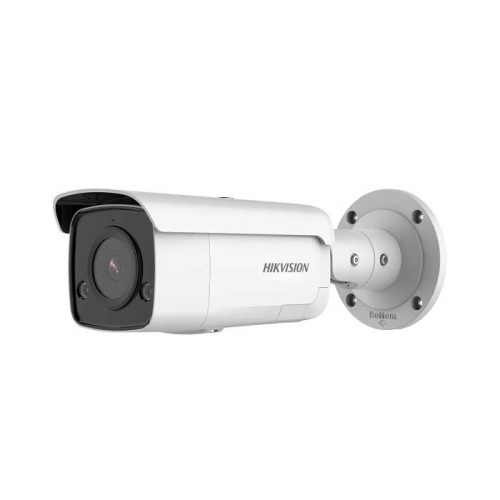

2 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera













Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.

 High quality imaging with 2 MP resolution
 Excellent low-light performance with
powered-by-DarkFighter technology
 Clear imaging against strong back light due to 120 dB WDR
technology
 Efficient H.265+ compression technology
 Focus on human and vehicle targets classification based on
deep learning
 Active strobe light and audio alarm to warn intruders off
 Provides real-time security via built-in two-way audio
 Water and dust resistant (IP67)






 Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type Fixed
Focal Length & FOV
2.8 mm, horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 129°
4 mm, horizontal FOV: 86°, vertical FOV: 47°, diagonal FOV: 102°
6 mm, horizontal FOV: 55°, vertical FOV: 29°, diagonal FOV: 65°
Aperture F1.4
Lens Mount M12
DORI
DORI
2.8 mm: D: 44.3 m, O: 17.6 m, R: 8.9 m, I: 4.4 m
4 mm: D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m
6 mm: D: 86.9 m, O: 34.5 m, R: 17.4 m, I: 8.7 m
Illuminator
IR Range Up to 60 m
IR Wavelength 850 nm
Smart Supplement Light Yes
Visual Alarm Yes
Video
Max. Resolution 1920 x 1080
Main Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 720)
60 Hz: 30 fps (1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports



H.265+ Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3) /16 to 64 Kbps (AAC)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Smooth Streaming Yes
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interface
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 2.2 KΩ, interface type: non-equilibrium
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 Ω, interface type: non-equilibrium
1 built-in speaker, 1 built-in microphone
Built-in Speaker Power: 2 W. Max. sound pressure level: 10 cm: 97 dB.
On-Board Storage Built-in memory card, support microSD/SDHC/SDXC card, up to 256 GB
Hardware Reset Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port



Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm,
exception
Smart Event Scene change detection
Deep Learning Function
Face Capture Yes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection
Supports human and vehicle targets classification
General
Linkage Method
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger
capture, trigger alarm output, strobe light, audible warning, send email
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
counter
Software Reset Yes
Firmware Version V5.5.113
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE: 802.3af, Class3
Power Consumption and Current
12 VDC, 0.88 A, max. 10.5 W
PoE (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W
Power Interface Ø5.5 mm coaxial power plug
Camera Material Front cover: metal, back cover: metal
Camera Dimension Ø105 mm x 287.6 mm (Ø4.1" x 11.3")
Package Dimension 386 mm x 156 mm x 155 mm (15.2" x 7.5" x 7.1")
Camera Weight Approx. 1140 g (2.5 lb.)
With Package Weight Approx. 1644 g (3.6 lb.)
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN
32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 );
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); LOA (IEC/EN
60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)






 Dimension



 Accessory
 Optional
DS-1260ZJ
Junction Box
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-S
Junction Box
DS-1275ZJ-S-SUS
Vertical Pole Mount

















 Available Model
DS-2CD2T26G2-ISU/SL (2.8/4/6 mm)


050511320210331
