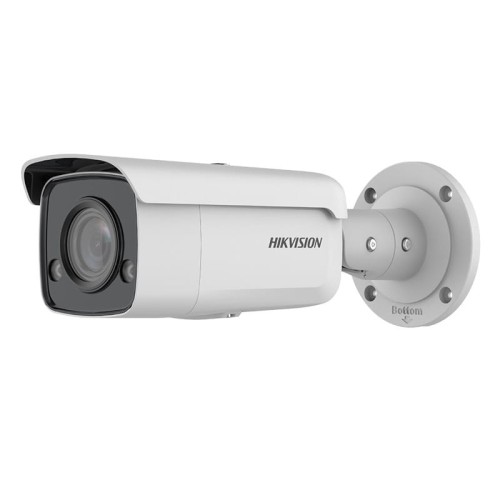

DS-2CD2T47G2-LSU/SL(4mm)(C)

DS-2CD2T47G2-LSU/SL  4 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera                            Hikvision ColorVu technology provides 24/7 vivid colorful  images with F1.0 advanced lenses and high performance  sensors. F1.0 super-aperture collects more light to produce  brighter images. Advanced sensor technology can vastly  improve the utilization of available light.   High quality imaging with 4 MP resolution   Efficient H.265+ compression technology   Clear imaging against strong backlight due to 130 dB  WDR technology   Focus on human and vehicle targets classification based  on deep learning   24/7 colorful imaging   Active strobe light and audio alarm to warn intruders off   Provide real-time security via built-in two-way audio   Audio and alarm interface available   Water and dust resistant (IP67)                     Specification  Camera  Image Sensor 1/1.8" Progressive Scan CMOS  Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Wide Dynamic Range 130 dB

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CD2T47G2H-LISU/SL(4mm)(eF)

Ersatzproduktcode: 311324228

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CD2T47G2-LSU/SL
4 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera













Hikvision ColorVu technology provides 24/7 vivid colorful
images with F1.0 advanced lenses and high performance
sensors. F1.0 super-aperture collects more light to produce
brighter images. Advanced sensor technology can vastly
improve the utilization of available light.
 High quality imaging with 4 MP resolution
 Efficient H.265+ compression technology
 Clear imaging against strong backlight due to 130 dB
WDR technology
 Focus on human and vehicle targets classification based
on deep learning
 24/7 colorful imaging
 Active strobe light and audio alarm to warn intruders off
 Provide real-time security via built-in two-way audio
 Audio and alarm interface available
 Water and dust resistant (IP67)









 Specification
Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 130 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°
4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°
6 mm, horizontal FOV 58.4°, vertical FOV 31°, diagonal FOV 68.7°
Lens Mount M16
Aperture F1.0
Depth of Field
2.8 mm: 3.1 m to ∞
4 mm: 5.4 m to ∞
6 mm: 12.1 m to ∞
DORI
DORI
2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m
4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
6 mm, D: 115.6 m, O: 45.9 m, R: 23.1 m, I: 11.6 m
Illuminator
Smart Supplement Light Yes
White Light Range Up to 60 m
Visual Alarm Yes
Video
Max. Resolution 2688 x 1520
Main Stream
50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Bit Rate Control CBR/VBR



Scalable Video Coding (SVC) H.265 and H.264 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR), MicroSD/SDHC/SDXC card
(256 GB) local storage
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Day/Night Switch Auto, Schedule
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC slot, up to 256 GB
Built-in Microphone Yes
Built-in Speaker 2 W, 10 cm: 97 dB
Audio
1 input (line in), two-core terminal block , max. input amplitude: 3.3 Vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out),two-core terminal block , max. output amplitude: 3.3 Vpp, output
impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Hardware Reset Yes



Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm,
exception
Smart Event Scene change detection
Deep Learning Function
Face Capture Yes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection
Supports human and vehicle targets classification
General
Linkage Method
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger
capture, send email, strobe light, audible warning, trigger alarm output
Camera Material Aluminum alloy body
Camera Dimension 289.5 mm x Ø105 mm (11.4"x Ø4.1")
Package Dimension 386 mm x 156 mm x 155 mm (15.2" x 6.1" x 6.1")
Camera Weight Approx. 1165 g (2.6 lb.)
With Package Weight Approx. 1639 g (3.6 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
counter
Firmware Version V5.5.114
Software Reset Yes
Power Consumption and Current
12 VDC, 0.67 A, max. 8 W
PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9 W
Power Supply
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Interface Ø5.5 mm coaxial power plug
Approval
EMC
FCC SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC VoC: ICES-003: Issue 6, 2016;
KC: KN 32: 2015, KN 35: 2015
Safety
UL: UL 60950-1;
CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
LOA: IEC/EN 60950-1



Environment
CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013


 Dimension



 Accessory
 Optional
DS-1276ZJ-SUS
Corner Mount
DS-1275ZJ-S-SUS
Vertical Pole
Mount
DS-1280ZJ-S
Junction Box
DS-1275ZJ-SUS
Vertical Pole
Mount
DS-1260ZJ
Junction Box















 Available Model
DS-2CD2T47G2-LSU/SL (2.8/4/6 mm)
