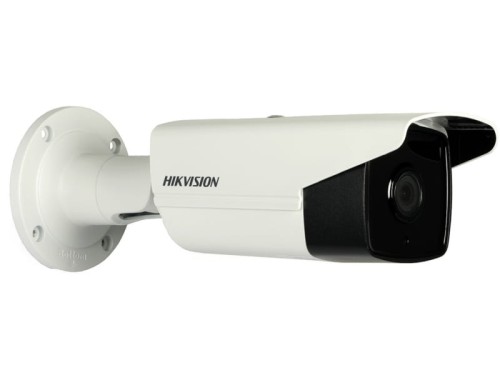

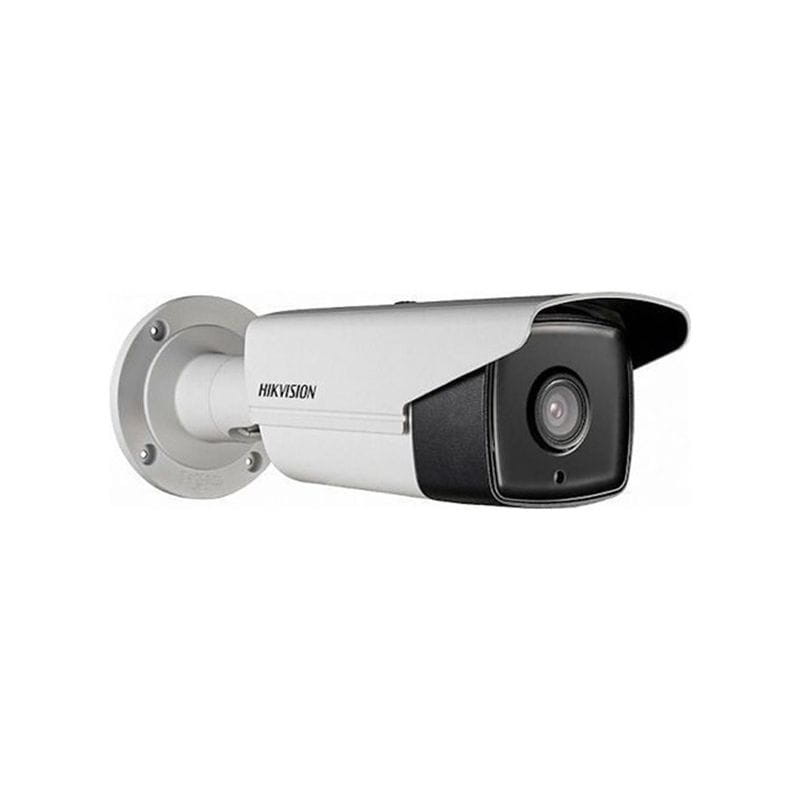

DS-2CD2T52-I5(4mm)

DS -2CD2T52-I3/I5/I8  5MP EXIR Bullet Network Camera  Key Features   Up to 5 megapixel high resolution   Electronic shutter   Dual video streams   Digital Wide Dynamic Range   3D Digital Noise Reduction   3-axis adjustment   DC12V & PoE   IR cut filter with auto switch   Up to 30/50/80m IR range   IP6 6 weather-proof protection   Mobile Monitoring via EZVIZ P2P or iVMS -4500                                                                                                                                            Specifications  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination 0.01Lux @ (F1.2, AGC ON) , 0 Lux with IR, 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/10,000 s  Lens  -I3: (4mm , 6mm option) @ F1.4, -I5: (4mm , 6mm, 12mm option) @ F1.4, -I8: (6mm, 12 mm, 16mm  option) @ F 1.4,  Lens Mount M12  Day &Night IR cut filter with auto switch  DNR 3D DNR ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS -2CD2T52-I3/I5/I8
5MP EXIR Bullet Network Camera
Key Features
 Up to 5 megapixel high resolution
 Electronic shutter
 Dual video streams
 Digital Wide Dynamic Range
 3D Digital Noise Reduction
 3-axis adjustment
 DC12V & PoE
 IR cut filter with auto switch
 Up to 30/50/80m IR range
 IP6 6 weather-proof protection
 Mobile Monitoring via EZVIZ P2P or iVMS -4500





































































Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON) , 0 Lux with IR, 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens
-I3: (4mm , 6mm option) @ F1.4, -I5: (4mm , 6mm, 12mm option) @ F1.4, -I8: (6mm, 12 mm, 16mm
option) @ F 1.4,
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range DWDR
Compression Standard

Video Compression H.264+/H.264 / MJPEG
H.264 Type Main Profile
Video Bit Rate 256 Kbps ~ 16 Mbps
Dual Streams Support
Max. Resolution 2560 x1920
Main Stream
50Hz: 20fps ( 2560 x1920), 25fps (2048x1536), 25fps(1920 x1080 ), 25fps(1280 x720 )
60Hz: 20fps (2560 x1920), 30fps (2048x1536 ), 30fps(1 920 x1080 ), 30fps( 1280 x720 )
Sub Stream
50Hz: 25fps ( 352 x288, 640x480)
60Hz: 30fps ( 352 x240, 640x480)
Others
Saturation, Brightness, Contrast adjustable by client software or web browser , Mirror, BLC, ROI, Dual
Stream, Anti-Flicker, Privacy Mask,
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger
Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error,
Network Disconnected, IP Address Conflicted
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function Password Protection, IP Address Filtering, Anonymous Access, Watermark
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
General
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply DC 12V ± 10%, PoE (802.3af)
Power Consumption I3: Max. 6 W, I5: Max. 7.5 W, I8: Max. 10 .5 W
Max. 9W with pan and tilt
IR Range I3: 30 meters, I5: 50 meters, I8: 80 meters
Protection Level IP66
Dimensions 299.71 x 86.48 x 85.11(11.8’’ x 3.4’’ x 3.35’’)
Weight 1200g ( 2.6 lbs)





















































































Dimension
Order Models
DS -2CD2T52-I3, DS -2CD2T52-I5, DS -2CD2T52-I8

050306151105
