DS-2CD7164-E(8mm)

www.hikvision.com  13  Key features  Dimensions  Accessories    Specications    t 1/3p progressive scan CMOS  t H.264 / MPEG4 / MJPEG video compression  t Up to 1.3 megapixel resolution  t HD 720P real time video  t Day / night auto switch  t Vandal-proof housing  t IP66 rating    DS-2CD7164-E  Camera  Image sensor1/3p Progressive Scan CMOS  Min. illumination0.01 lux @F1.2, AGC ON, 0.02 lux @F1.8, AGC ON  Shutter time1/25s ~ 1/100,000s  Lens4mm @F2.0 (2.8, 6, 8mm optional), angle of view: 73°  Lens mountM12  Angle adjustmentPan: ± 15°, tilt: 0 ~ 90°, rotation: ± 15°  Day & nightElectronic  Compression standard  Video compression H.264 / MPEG4 / MJPEG  Bit rate32 Kbps ~ 16 Mbps  Dual streamYes  Image  Max. image resolution1280 x 960  Frame rate  50Hz: 25fps (1280 x 960), 25fps (1280 x 720)  60Hz: 30fps (1280 x 960), 30fps (1280 x 720)  Image settings Saturation, brightness, contrast adjustable by client software or web browser  Network  Network storageNAS (iSCSI optional)  Alarm triggerMotion detection  Protocols  TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,  802.1x, Qos (SIP, SRTP, IPv6 optional)  SecurityUser Authenticat...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.hikvision.com
13
Key features
Dimensions
Accessories

Specications

t 1/3p progressive scan CMOS
t H.264 / MPEG4 / MJPEG video compression
t Up to 1.3 megapixel resolution
t HD 720P real time video
t Day / night auto switch
t Vandal-proof housing
t IP66 rating

DS-2CD7164-E
Camera
Image sensor1/3p Progressive Scan CMOS
Min. illumination0.01 lux @F1.2, AGC ON, 0.02 lux @F1.8, AGC ON
Shutter time1/25s ~ 1/100,000s
Lens4mm @F2.0 (2.8, 6, 8mm optional), angle of view: 73°
Lens mountM12
Angle adjustmentPan: ± 15°, tilt: 0 ~ 90°, rotation: ± 15°
Day & nightElectronic
Compression standard
Video compression H.264 / MPEG4 / MJPEG
Bit rate32 Kbps ~ 16 Mbps
Dual streamYes
Max. image resolution1280 x 960
Frame rate
50Hz: 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps (1280 x 960), 30fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable by client software or web browser
Network
Network storageNAS (iSCSI optional)
Alarm triggerMotion detection
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional)
SecurityUser Authentication, Watermark
System compatibilityONVIF, PSIA, CGI
Interface
Communication interface1 RJ45 10M / 100M ethernet port
Reset buttonYes
General
Operating conditions-10°C ~ 60°C (14°zF ~ 140°zF) humidity 90% or less (non-condensing)
Power supply12 VDC ± 10%, PoE (802.3af)
Power consumptionmax. 4 W
Impact protectionIEC60068-275Eh, 50J; EN50102, up to IK10
Weather-proof ratingIP66
Dimensions99.9 x 97.5 x 46.5 mm (3.93p x 3.84p x 1.83p)
Weight250g (0.55 lbs)
Available models
DS-2CD7164-E

Unit: mm

1/3”

CMOS
CMOS
IP66

HD Video

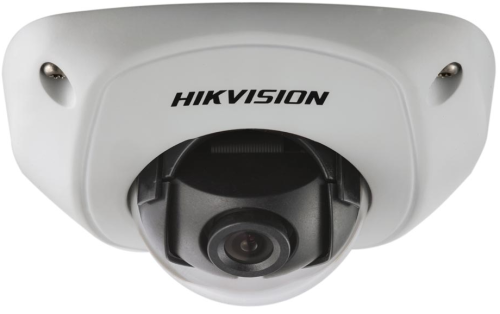

DS-2CD7164-E 1.3MP Network Mini Dome Camera
