DS-2CD764FWD-E(2.7-9mm)

www.hikvision.com    6    Key features  Dimensions  Accessories      Specifications      DS-2CD764FWD-E(I)(Z) 1.3MP WDR Indoor Dome Camera  • 1.3 mega-pixel (1280 x 960) high resolution  • 120dB wide dynamic range  • HD720p real-time recording  • 3D digital noise reduction  • Super low light  • Motorized VF lens (-Z)  • IR LEDs optional (-I: up to 20m)    DS-2CD764FWD-E(I)(Z)  Camera  Image sensor 1/3” progressive scan CMOS  Min. illumination  0.01 Lux @F1.2,AGC ON  -I: 0.01 Lux @F1.2,AGC ON, 0 Lux with IR  Shutter time 1/25s ~ 1/100,000s  Lens  2.7 ~ 9mm @ F1.2, angle of view: 101° ~ 30.4°  -Z: motorized VF lens  Lens mount ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.hikvision.com

6

Key features
Dimensions
Accessories


Specifications

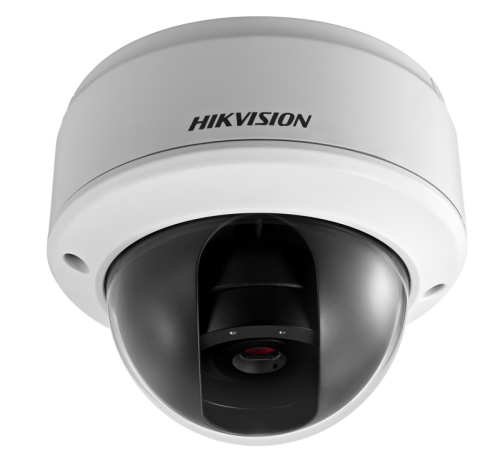

DS-2CD764FWD-E(I)(Z) 1.3MP WDR Indoor Dome Camera
• 1.3 mega-pixel (1280 x 960) high resolution
• 120dB wide dynamic range
• HD720p real-time recording
• 3D digital noise reduction
• Super low light
• Motorized VF lens (-Z)
• IR LEDs optional (-I: up to 20m)

DS-2CD764FWD-E(I)(Z)
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination
0.01 Lux @F1.2,AGC ON
-I: 0.01 Lux @F1.2,AGC ON, 0 Lux with IR
Shutter time 1/25s ~ 1/100,000s
Lens
2.7 ~ 9mm @ F1.2, angle of view: 101° ~ 30.4°
-Z: motorized VF lens
Lens mount Φ 14
Auto iris DC drive
Angle adjustment Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Day & night Electronic (-I: IR cut filter with auto switch)
Wide dynamic range 120 dB
Digital noise reduction 3D DNR
Compression standard
Video compression H.264 / MPEG4 / MJPEG
Bit rate 32 Kbps ~ 16 Mbps
Audio compression G.711 / G.726
Dual stream Yes
Max. image resolution 1280 x 960
Frame rate
50Hz: 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps (1280 x 960), 30fps (1280 x 720)
Image settings Saturation, Brightness, Contrast adjustable through client software or web browser
Network
Network storage NAS (iSCSI optional)
Alarm trigger Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional)
Security User authentication, watermark
System compatibility ONVIF, PSIA, CGI
Interface
Audio input 1-ch 3.5 mm audio interface, MIC IN/LINE IN
Audio output 1-ch 3.5 mm audio interface (line level, 600 Ω)
Communication interface 1 RJ45 10M / 100M ethernet interface, 1 RS-485 interface
Alarm input 2
Alarm output 2
Video output 1 Vp-p composite output (75Ω / RCA)
On-board storage Built-in SD/SDHC slot, up to 32 GB
Reset button Yes
General
Operating conditions -10°C ~ 60°C (14°F ~ 140°F) Humidity 90% or less (non-condensing)
Power supply 12 VDC ± 10%, PoE (802.3af)
Power consumption 5.5 W ~ 10.5 W (IR LEDs: +2W, motorized VF lens: +3W)
Impact Protection IEC60068-275Eh, 50J; EN50102, up to IK10
IR Range -I: approx 10 to 20 meters
Dimensions Φ 140 x 114 mm ( Φ 5.51” x 4.49”)
Weight 1400 g (3.09 lbs)
Available models
DS-2CD764FWD-E, DS-2CD764FWD-EI, DS-2CD764FWD-EZ, DS-2CD764FWD-EIZ
* -I: IR LEDs, up to 20m
* -Z: motorized VF lens

HD Video

WDR

Low Ligh t

CMOS
CMOS
1/3”

Megapixel
MP Camer a
1.3

IR
Va ri-Fo ca l

DS-1227ZJ
(Indoor in-ceiling mount)
DS-1229ZJ
(Vandal-proof wall mount)

Unit: mm
