DS-2CD8464F-EIW(4mm)

www.hikvision.com  Key features  Dimensions  Accessories      • 1.3 megapixel resolution with HD video recording  • Dual IR LEDs (up to 15m)  • Super low-light (0.01lux/F1.2)  • True day / night  • PIR human detection  • Embedded alarm device I/O transceiver  • Built-in Wi-Fi  • PoE power supply  • Mobile remote monitoring  DS-2CD8464F-EIW    1.3 MP Alarm Pro Cube Camera    DS-2CD8464F-EIW  Camera  Image sensor 1/3” progressive scan CMOS  Min. illumination  0.01 lux@F1.2, AGC on  0.028 lux@F2.0, AGC on  -I: 0 lux with IR on  Shutter time 1/25s ~ 1/100,000s  Lens mount M12  Lens 4mm @F2.0, angle of view: 68°  Day & night IR cut filter with auto switch   Digital noise reduction ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.hikvision.com
Key features
Dimensions
Accessories


• 1.3 megapixel resolution with HD video recording
• Dual IR LEDs (up to 15m)
• Super low-light (0.01lux/F1.2)
• True day / night
• PIR human detection
• Embedded alarm device I/O transceiver
• Built-in Wi-Fi
• PoE power supply
• Mobile remote monitoring
DS-2CD8464F-EIW

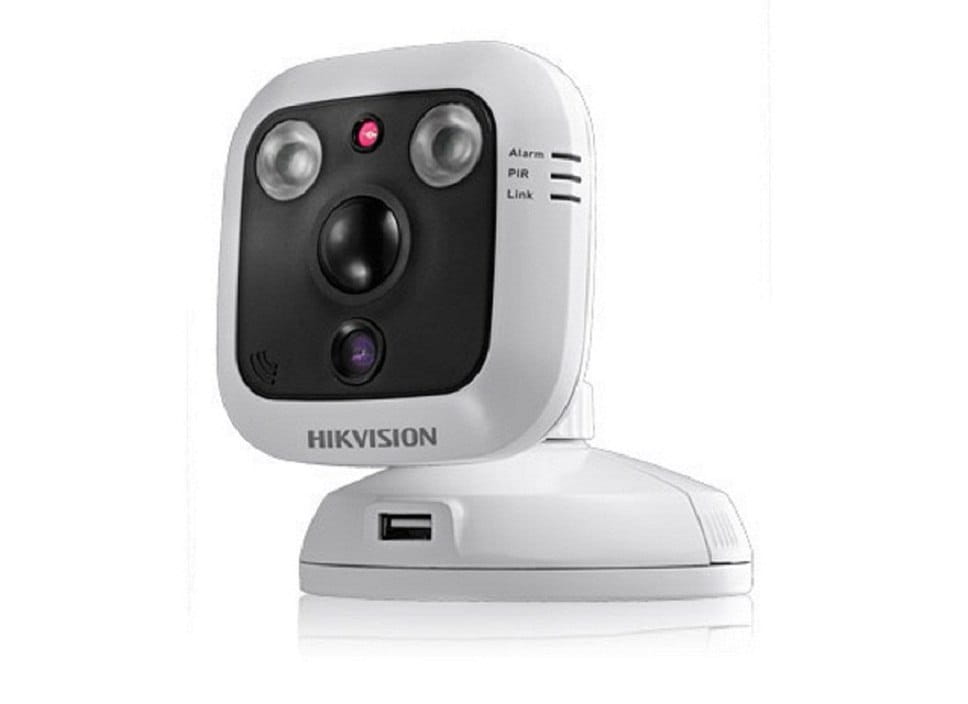

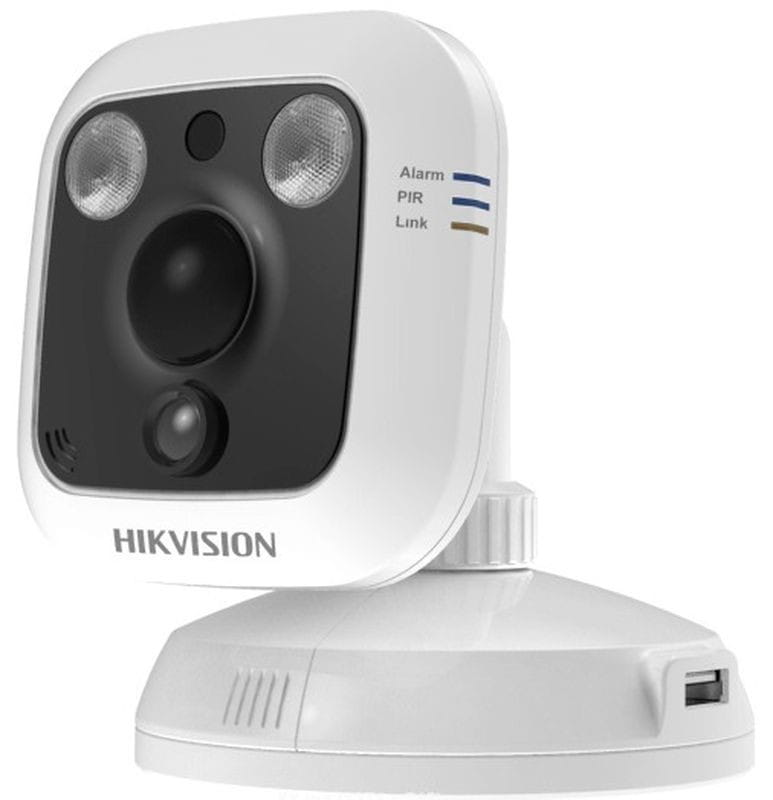

1.3 MP Alarm Pro Cube Camera

DS-2CD8464F-EIW
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination
0.01 lux@F1.2, AGC on
0.028 lux@F2.0, AGC on
-I: 0 lux with IR on
Shutter time 1/25s ~ 1/100,000s
Lens mount M12
Lens 4mm @F2.0, angle of view: 68°
Day & night IR cut filter with auto switch
Digital noise reduction 3D DNR
Compression Standard
Video compression H.264 / MPEG4 / MJPEG
Bit rate 32 Kbps ~ 16 Mbps
Audio compression G.711 / G.726
Audio bit rate 64 Kbps (G.711) / 16 Kbpss (G.726)
Dual stream Yes
Max. image resolution 1280 x 960
Frame rate
50 Hz: 25 fps (1280 x 960), 25fps (1280 x 720), 25fps (640 x 480)
60 Hz: 30 fps (1280 x 960), 30fps (1280 x 720), 30fps (640 x 480)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Backlight compensation Yes, zone configurable
Network
Network storage NAS (iSCSI optional)
Alarm trigger Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos, (SIP, SRTP, IPv6 optional)
Security User authentication, watermark
System compatibility ONVIF, PSIA, CGI
Interface
Communication interface RJ45 10M / 100M ethernet port x1
On-board storage Micro SD card slot x1 (up to 32GB)
Reset button Yes
General
Operating conditions -10°C ~ 60°C (14°F ~ 140°F) humidity 90% or less (non-condensing)
Power supply 5 VDC ± 10%, PoE (802.3af)
Power consumption
max. 3W
-I: max. 4W (max. 4.5W with ICR on)
IR range up to 15m
PIR Detection distance: up to 10m, angle of detection: 80°
Dimensions 90 x 114 x 119.8 mm (3.6” x 4.5” x 4.8”)
Weight 500g (1.1 lbs)
Available Models
DS-2CD8464F-EIW
* Product picture and technical specs subject to change without previous notice.
For further information, please contact our local sales team.
