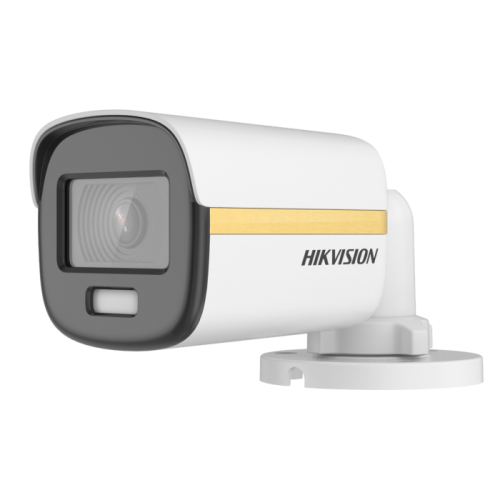

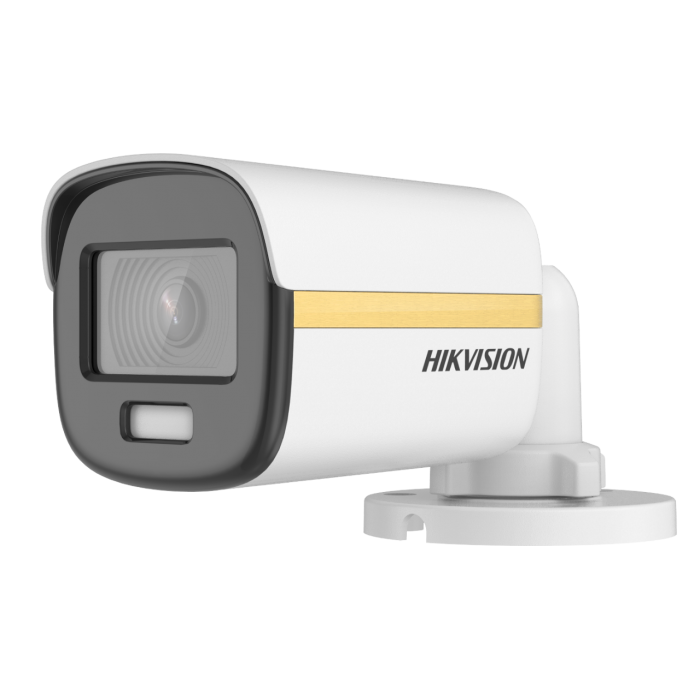

DS-2CE10DF3T-FS(2.8mm)
product unavailable
zur Wunschliste hinzufügenBeschreibung
DS-2CE10DF3T-FS 2 MP ColorVu Audio Fixed Mini Bullet Camera High quality imaging with 2 MP, 1920 x 1080 resolution 24/7 color imaging with F1.0 aperture Clear imaging against strong back light due to 130 dB true WDR technology 3D DNR technology delivers clean and sharp images 2.8 mm, 3.6 mm fixed focal lens Up to 20 m white light distance for bright night imaging High quality audio with audio over coaxial cable, built-in mic One port for four switchable signals (TVI/AHD/CVI/CVBS) Water and dust resistant (IP67) Specification Specification Image Sensor 2 MP CMOS Signal System PAL/NTSC Resolution 1920 (H) x 1080 (V) Frame Rate TVI: 1080p @ 25 fps/30 fps CVI: 1080p @ 25 fps/30 fps AHD: 1080p @ 25 fps/30 fps CVBS: PAL/NTSC Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s Slow Shutter Max. 16 times Lens 2.8 mm, 3.6 mm fixed focal lens Field of View 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116° 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diag...
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
DS-2CE10DF3T-FS
2 MP ColorVu Audio Fixed Mini Bullet Camera
High quality imaging with 2 MP, 1920 x 1080 resolution
24/7 color imaging with F1.0 aperture
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
High quality audio with audio over coaxial cable, built-in mic
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)
Specification
Specification
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Frame Rate
TVI: 1080p @ 25 fps/30 fps
CVI: 1080p @ 25 fps/30 fps
AHD: 1080p @ 25 fps/30 fps
CVBS: PAL/NTSC
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm fixed focal lens
Field of View
2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
Lens Mount M12
Light Alarm Solid Light Alarm (White Light)
Day & Night Color
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Menu
White Light Auto/Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Color
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR, BLC, HLC, Global, HLS
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Noise Reduction 3D DNR/2D DNR
Language English
Function
Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding,
Smart Light
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
Audio In Built-in mic
General
Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%,
*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 4.2 W
Protection Level IP67
Material Metal
White Light Range Up to 20 m
Communication HIKVISION-C
Dimension 161.1 mm x 70 mm x 70 mm (6.34" x 2.76" x 2.76")
Weight Approx. 388 g (0.86 lb.)
Dimension
Accessory
Optional
DS-1280ZJ-XS
Junction box
Available Model
DS-2CE10DF3T-FS
