DS-2CE10HFT-E(3.6mm)

DS-2CE10HFT-E  5 MP ColorVu PoC Fixed Mini Bullet Camera                     High quality imaging with 5 MP, 2560 x 1944 resolution   24/7 color imaging   Clear imaging against strong back light due to 130 dB true  WDR technology     3D DNR technology delivers clean and sharp images   2.8 mm, 3.6 mm fixed focal lens   Smart Light, up to 20 m white light distance   Water and dust resistant (IP67)             Specification  Specification  Image Sensor 5 MP CMOS  Signal System PAL/NTSC  Resolution 2560 (H) x 1944 (V)  Frame Rate 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps  Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light  Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s  Lens 2.8 mm, 3.6 mm fixed focal lens  Field of View  2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°  3.6 mm, horizontal FOV: 80.1°, vertical FOV: 58.6°, diagonal FOV: 106.2°  Lens Mount M16  Light Alarm Solid Light Alarm (White Light)  WDR (Wide Dynamic Range) ≥130 dB  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°  Menu  ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CE10KF3T-LE(3.6mm)

Ersatzproduktcode: 327800610

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE10HFT-E

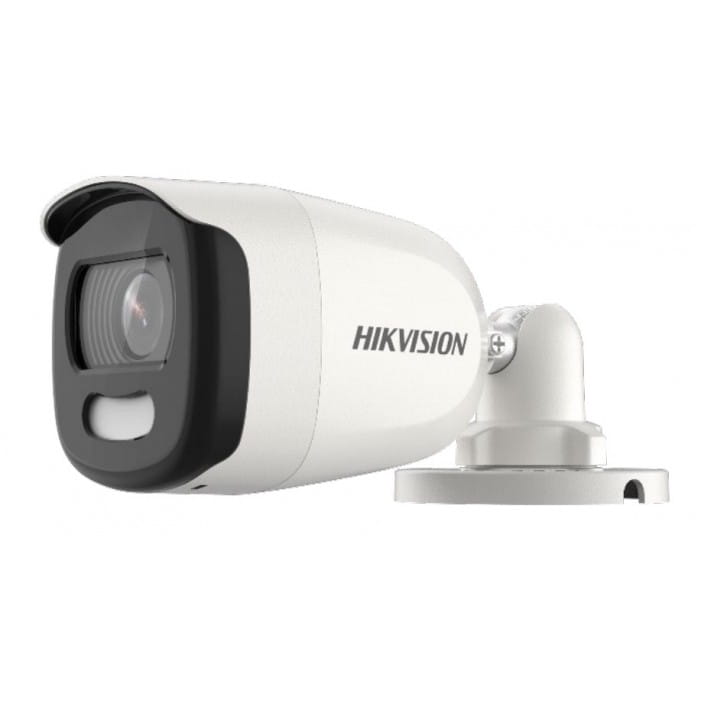

5 MP ColorVu PoC Fixed Mini Bullet Camera









 High quality imaging with 5 MP, 2560 x 1944 resolution
 24/7 color imaging
 Clear imaging against strong back light due to 130 dB true
WDR technology

 3D DNR technology delivers clean and sharp images
 2.8 mm, 3.6 mm fixed focal lens
 Smart Light, up to 20 m white light distance
 Water and dust resistant (IP67)





 Specification
Specification
Image Sensor 5 MP CMOS
Signal System PAL/NTSC
Resolution 2560 (H) x 1944 (V)
Frame Rate 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm fixed focal lens
Field of View
2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
3.6 mm, horizontal FOV: 80.1°, vertical FOV: 58.6°, diagonal FOV: 106.2°
Lens Mount M16
Light Alarm Solid Light Alarm (White Light)
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Menu
White Light Auto/Off
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Color
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR, BLC, HLC, Global, HLS
Noise Reduction 3D DNR/2D DNR
Language English
Function Brightness, Mirror, Sharpness, Anti-Banding, Smart Light
Interface
Video Output 1 HD analog output
General
Operating Conditions -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC±25%/PoC.af
*You are recommended to use one power adapter for one camera, and use 2-pin
power supply for long-distance power supply.
Consumption Max. 4 W
Protection Level IP67
Material Metal
White Light Range Up to 20 m
Communication HIKVISION-C
Dimension 68 mm x 70 mm x 168.2 mm (2.68" x 2.76" x 6.62")
Weight Approx. 398 g (0.88 lb.)

 Dimension




 Accessory
 Optional




DS-1280ZJ-XS
Junction box


















 Available Model
DS-2CE10HFT-E
