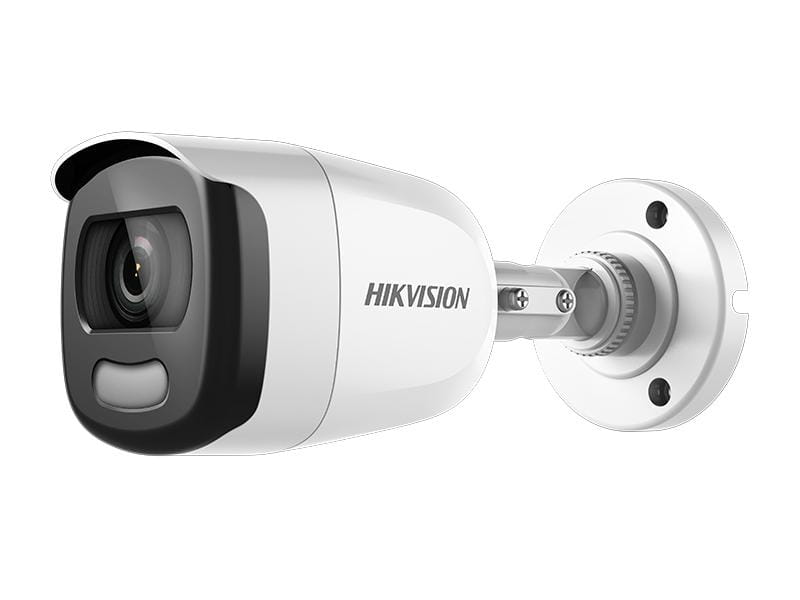

DS-2CE10HFT-F(3.6mm)

DS-2CE10HFT-F  5 MP Full Time Color Camera          • 5 MP, 2560 x 1944 resolution  • 24-hour color image  • 130 dB true WDR, 3D DNR  • 3.6 mm, 6 mm fixed focal lens  • Smart Light, up to 20 m white light distance  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  • IP67        Specification    Camera  Image Sensor5 MP CMOS  Signal SystemPAL/NTSC  Resolution2560 (H) x 1944 (V)    Frame Rate  TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps  CVI: 4MP@30fps, 4MP@25fps  AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps  CVBS: PAL/NTSC    Min. illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Slow ShutterMax. 16 times  Lens3.6 mm, 6 mm fixed lens  Horizontal Field of View80.1° (3.6 mm), 49.3° (6 mm)  Lens MountM16  Strobe Light AlarmYes  Day & NightColor  WDR (Wide Dynamic Range)≥130 dB  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°  Menu  White LightAuto/​Off  Image ModeSTD/HIGH-SAT  AGCYes  Day/Night ModeColor  White BalanceAuto/Manual  AE (Auto Exposure) ModeWDR/​BLC/​HLC/​Global/​HLS/​Anti-banding  Privacy Mask4 pro...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CE10KF0T-LFS(3.6mm)

Ersatzproduktcode: 327800898

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE10HFT-F
5 MP Full Time Color Camera




• 5 MP, 2560 x 1944 resolution
• 24-hour color image
• 130 dB true WDR, 3D DNR
• 3.6 mm, 6 mm fixed focal lens
• Smart Light, up to 20 m white light distance
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67



Specification

Camera
Image Sensor5 MP CMOS
Signal SystemPAL/NTSC
Resolution2560 (H) x 1944 (V)

Frame Rate
TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps
CVI: 4MP@30fps, 4MP@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
CVBS: PAL/NTSC

Min. illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light

Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Slow ShutterMax. 16 times
Lens3.6 mm, 6 mm fixed lens
Horizontal Field of View80.1° (3.6 mm), 49.3° (6 mm)
Lens MountM16
Strobe Light AlarmYes
Day & NightColor
WDR (Wide Dynamic Range)≥130 dB
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Menu
White LightAuto/​Off
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeColor
White BalanceAuto/Manual
AE (Auto Exposure) ModeWDR/​BLC/​HLC/​Global/​HLS/​Anti-banding
Privacy Mask4 programmable privacy masks
Motion Detection4 programmable motion areas
Noise Reduction3D DNR
LanguageEnglish
FunctionBrightness, Sharpness, Mirror, Smart Light
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.


General
Power ConsumptionMax. 3.5 W
Protection LevelIP67
MaterialMetal
White Light RangeUp to 20 m
CommunicationHIKVISION-C
Dimensions68 mm x 70 mm x 168.2 mm (2.68" x 2.76" x 6.62")
WeightApprox. 350 g (0.77 lb.)

Available Model
DS-2CE10HFT-F
Dimension

Accessory



DS-1280ZJ-XS
Junction Box
