DS-2CE11D8T-PIRL(3.6mm)
product unavailable
zur Wunschliste hinzufügenBeschreibung
Key Features 2 MP high performance CMOS Ultra-low light 1920 x 1080 resolution 2.8 mm, 3.6 mm fixed focal lens PIR detection, visual alarm 120 dB true WDR, 3D DNR EXIR 2.0, smart IR, up to 20 m IR distance IP67 Up the coax (HIKVISION-C) DS-2CE11D8T-PIRL 2 MP Ultra-Low Light PIR Bullet Camera Camera Image Sensor 2.0 megapixel progressive scan CMOS Signal System PAL/NTSC Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Resolution 1920 (H) x 1080 (V) Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Slow Shutter Max. 16 times Lens 2.8 mm, 3.6 mm fixed focal lens Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm) Lens Mount M12 Visual Alarm Yes Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° Synchronization Internal synchronization WDR (Wide Dynamic Range) > 120 dB Menu White Light Alarm/Off AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance ATW/MANUAL Privacy Mask ON/OFF, 4 programmable privacy masks ...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
Key Features
2 MP high performance CMOS
Ultra-low light
1920 x 1080 resolution
2.8 mm, 3.6 mm fixed focal lens
PIR detection, visual alarm
120 dB true WDR, 3D DNR
EXIR 2.0, smart IR, up to 20 m IR distance
IP67
Up the coax (HIKVISION-C)

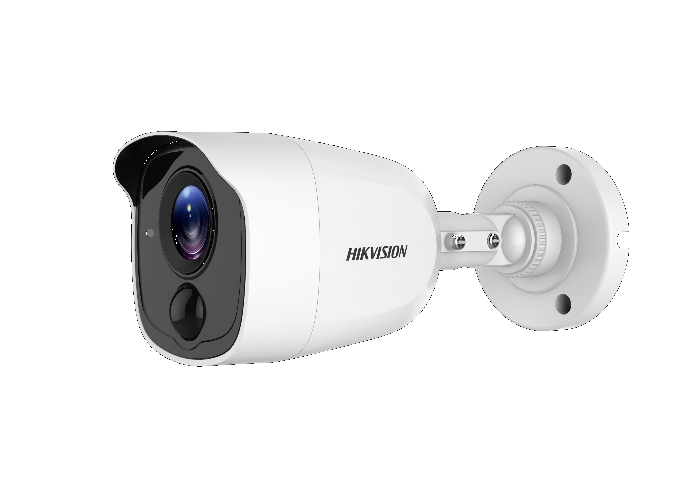

DS-2CE11D8T-PIRL
2 MP Ultra-Low Light PIR Bullet Camera
Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm fixed focal lens
Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm)
Lens Mount M12
Visual Alarm Yes
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
White Light Alarm/Off
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English, Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 4.5 W
Ingress Protection IP67
Material Metal
IR Range Up to 20 m
PIR Range Angle: 110°, Range:11 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 68 mm x 70 mm x 179.8 mm ( 2.68" x 2.76" x 7.08" )
Weight Approx. 345 g (0.76 lb.)
Specification
Order Models
DS-2CE11D8T-PIRL
Dimension
179.8 mm (7.08" )
100.3 mm (3.95" )
68 mm (2.68" )
7
0
m
m
(
2
.
7
6
"
)
3
-
Ø
4
.
2
m
m
(
0
.
1
7
"
)
Ø 55 mm
(2.17" )
Ø
7
0
m
m
(
2
.
7
6
"
)
120°
Accessory
DS-1280ZJ-XS
Junction Box
DS-1H18
Video Balun
