DS-2CE12DF3T-FS(2.8mm)

DS-2CE12DF3T-FS  2 MP ColorVu Audio Fixed Bullet Camera                       High quality imaging with 2 MP, 1920 x 1080 resolution   24/7 color imaging with F1.0 aperture   Clear imaging against strong back light due to 130 dB true WDR technology   3D DNR technology delivers clean and sharp images   2.8 mm, 3.6 mm, 6 mm fixed focal lens   Up to 40 m white light distance for bright night imaging   One port for four switchable signals (TVI/AHD/CVI/CVBS)   Water and dust resistant (IP67)   High quality audio with audio over coaxial cable, built-in mic           Specification  Specification  Image Sensor 2 MP CMOS  Signal System PAL/NTSC  Resolution 1920 (H) x 1080 (V)  Frame Rate  TVI: 1080p @ 25 fps/30 fps  CVI: 1080p @ 25 fps/30 fps  AHD: 1080p @ 25 fps/30 fps  CVBS: PAL/NTSC  Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light  Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s  Slow Shutter Max. 16 times  Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens  Field of View  2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°  3.6 mm, horizontal FOV: 77°, vertical FOV: 42...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE12DF3T-FS

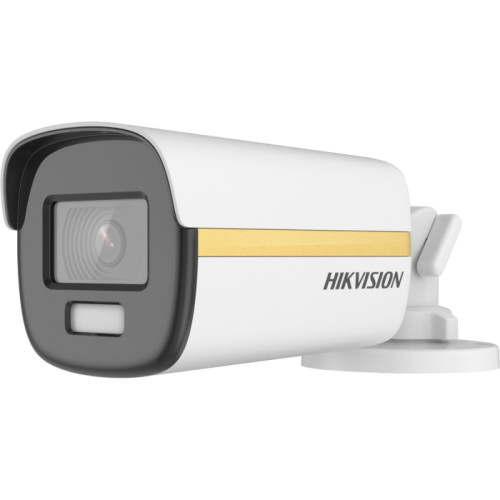

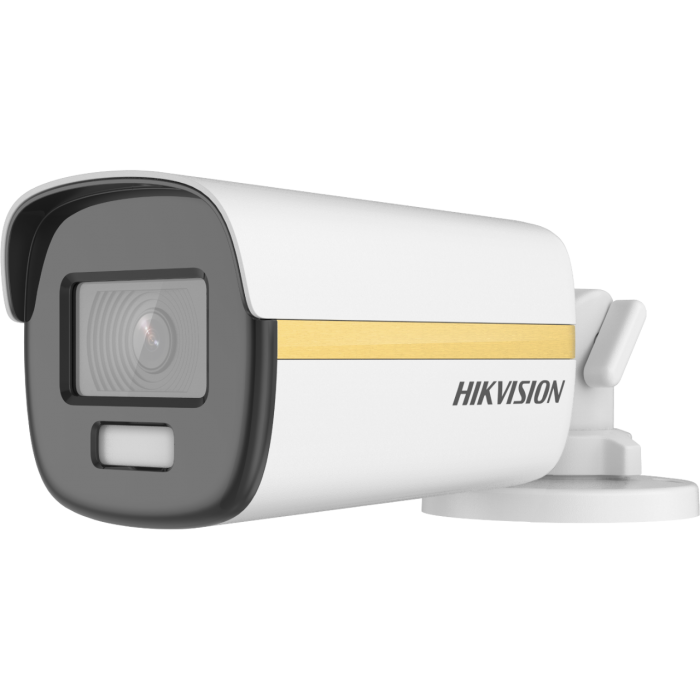

2 MP ColorVu Audio Fixed Bullet Camera










 High quality imaging with 2 MP, 1920 x 1080 resolution
 24/7 color imaging with F1.0 aperture
 Clear imaging against strong back light due to 130 dB true WDR technology
 3D DNR technology delivers clean and sharp images
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 Up to 40 m white light distance for bright night imaging
 One port for four switchable signals (TVI/AHD/CVI/CVBS)
 Water and dust resistant (IP67)
 High quality audio with audio over coaxial cable, built-in mic




 Specification
Specification
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Frame Rate
TVI: 1080p @ 25 fps/30 fps
CVI: 1080p @ 25 fps/30 fps
AHD: 1080p @ 25 fps/30 fps
CVBS: PAL/NTSC
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Field of View
2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°
Lens Mount M12
Light Alarm Solid Light Alarm (White Light)
Day & Night Color
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Menu
White Light Auto/Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Color
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR, BLC, HLC, Global, HLS
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Noise Reduction 3D DNR/2D DNR
Language English
Function
Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding,
Smart Light
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
Audio In Built-in mic
General
Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%,
*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 4.4 W
Protection Level IP67
Material Metal
White Light Range Up to 40 m
Communication HIKVISION-C
Dimension 194.2 mm x 78 mm x 74.5 mm (7.65" x 3.07" x 2.93")
Weight Approx. 515 g (1.13 lb.)
 Dimension






 Accessory
 Optional
DS-1280ZJ-XS
Junction box


















 Available Model
DS-2CE12DF3T-FS
