DS-2CE16C2T-IT5(6mm)

©2006 – 2014 by HIKVISION. All rights reserved.  1  DS-2CE16C2T-IT5      Key Features   1.3 Megapixel high-performance CMOS   Analog HD output, up to 720P resolution   True Day/Night   DNR, Smart IR   EXIR technology, up to 80m IR distance   IP66 weatherproof  Specification   Model  Parameter  DS-2CE16C2T-IT5  Turbo HD720p EXIR Bullet Camera  Camera  Image Sensor 1.3MP CMOS Image Sensor  Effective Pixels 1280(H)*960(V)  Min. Illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR  Shutter Time 1/25(1/30) s to 1/50,000 s  Lens  3.6mm (6mm, 8mm, 12mm, 16mm optional)  Angle of View: 78°(3.6mm), 51.2°(6mm), 36°(8mm), 23°(12mm),  17.9°(16mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°  Synchronization Internal synchronization  Video Frame Rate 720p@25fps/720p@30fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  General  Working  Temperature/Humidity  -40 °C - 60 °C (-40 °F - 140 °F)  Humidity 90% or less (non-condensing)       ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

©2006 – 2014 by HIKVISION. All rights reserved.
1

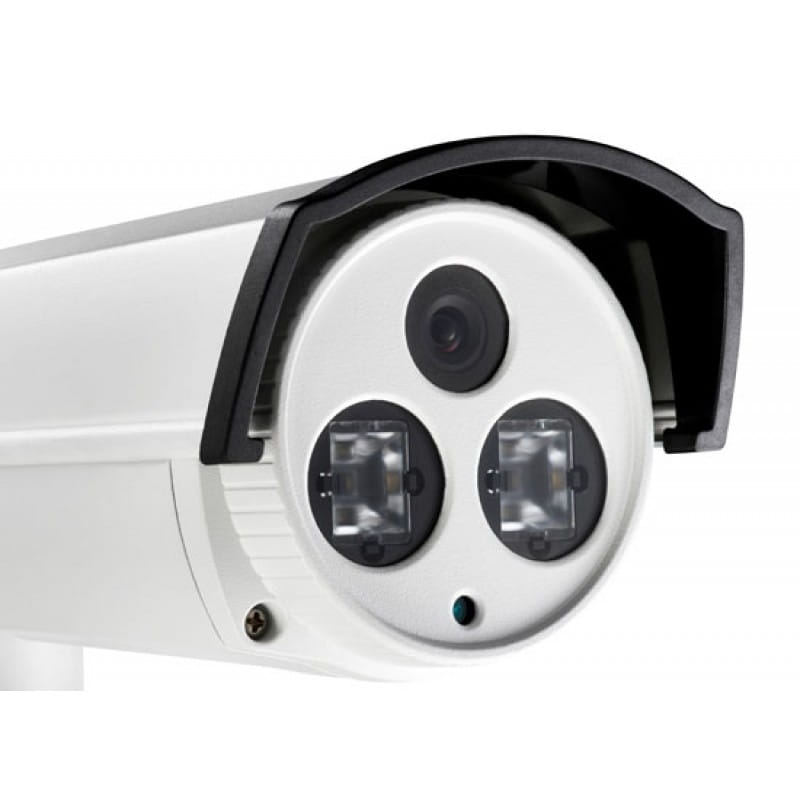

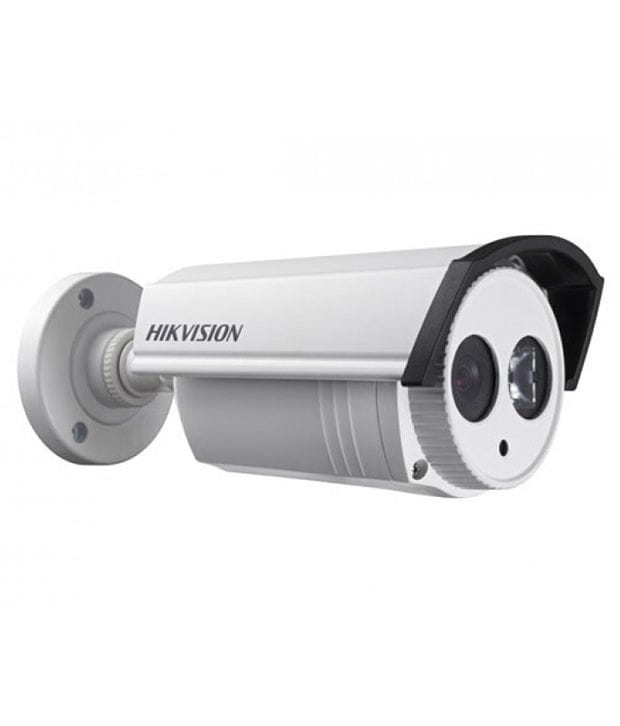

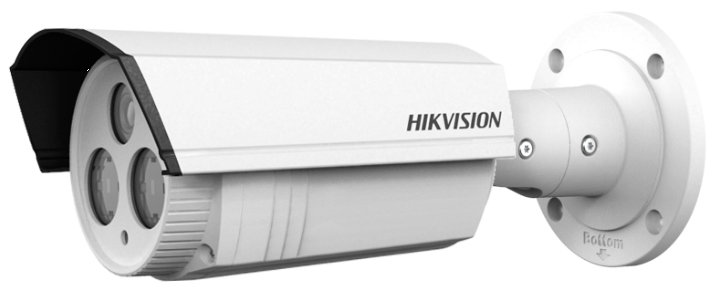

DS-2CE16C2T-IT5


Key Features
 1.3 Megapixel high-performance CMOS
 Analog HD output, up to 720P resolution
 True Day/Night
 DNR, Smart IR
 EXIR technology, up to 80m IR distance
 IP66 weatherproof
Specification
Model
Parameter
DS-2CE16C2T-IT5
Turbo HD720p EXIR Bullet Camera
Camera
Image Sensor 1.3MP CMOS Image Sensor
Effective Pixels 1280(H)*960(V)
Min. Illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30) s to 1/50,000 s
Lens
3.6mm (6mm, 8mm, 12mm, 16mm optional)
Angle of View: 78°(3.6mm), 51.2°(6mm), 36°(8mm), 23°(12mm),
17.9°(16mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
General
Working
Temperature/Humidity
-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)



©2006 – 2014 by HIKVISION. All rights reserved.
2
Power Supply 12V DC±15%
Power Consumption Max. 4W
Weather Proof Ratings IP66
IR Range Up to 80m
Dimensions 105x104.8x263.1mm(4.13” x4.13” x10.36”)
Weight 800 g (1.76 lbs)
Order Model
DS-2CE16C2T-IT5
Dimensions
Unit: mm


Accessories



DS-1275ZJ DS-1260ZJ DS-1280ZJ-S
Vertical Pole Mounting Junction box Junction box




DS-1H18 DS-TT-X41T
Video Balun TVI Tester
