Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

©2006 – 2014 by HIKVISION. All rights reserved.
1

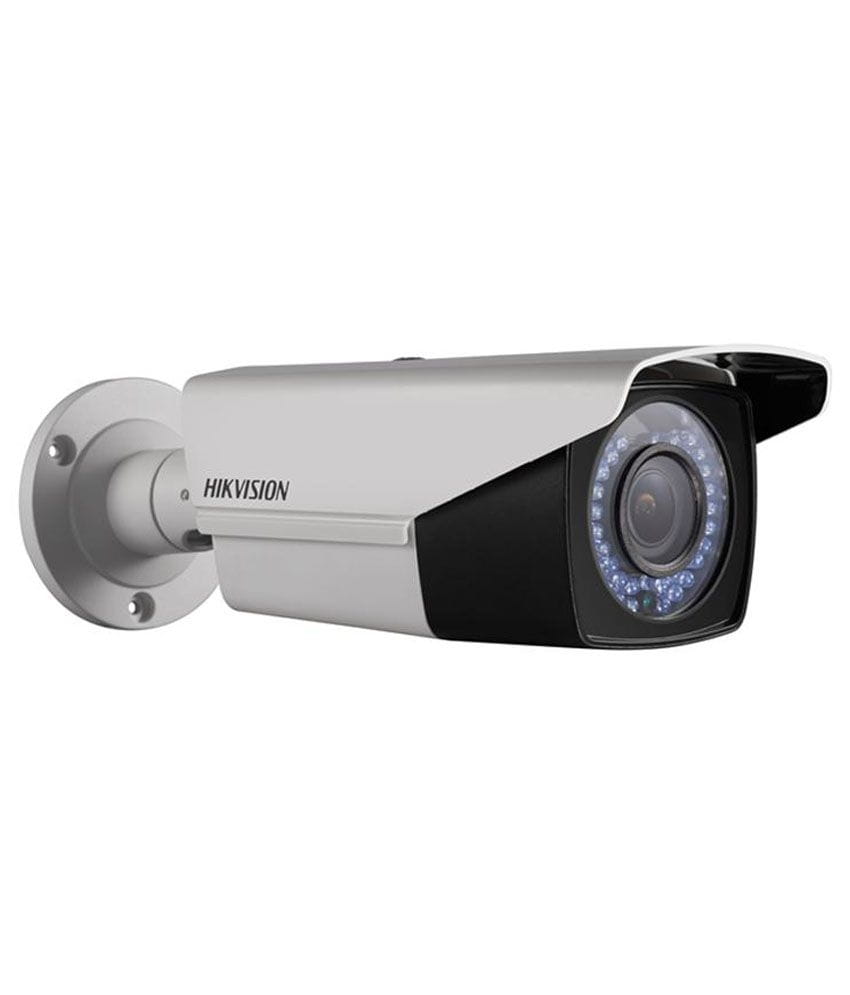

DS-2CE16C2T-VFIR3


Key Features
 1.3 Megapixel high-performance CMOS
 Turbo HD output, up to 720P resolution
 2.8 – 12mm vari-focal lens
 True Day/Night
 DNR, Smart IR
 Up to 40m IR distance
 IP66 weatherproof
Specification
Model
Parameter
DS-2CE16C2T-VFIR3
720p Vari-focal IR Turbo HD Bullet Camera
Camera
Image Sensor 1/3" Progressive Scan CMOS
Effective Pixels 1280(H)*720(V)
Min. Illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30) s to 1/50,000 s
Lens
2.8 - 12 mm @ F1.4
Angle of view: 80° - 27.2°
Lens Mount φ14
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Day & Night ICR
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps



©2006 – 2014 by HIKVISION. All rights reserved.
2
HD Video Output 1 Turbo HD output
S/N Ratio More than 52dB
General
Working
Temperature/Humidity
-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4.5W
Weather Proof Ratings IP66
IR Range Up to 40m
Dimension 92 x 84.8 x 269.6mm(3.62” x 3.34” x 10.6”)
Weight 1010g (2.23 lb)
Order Model
DS-2CE16C2T-VFIR3
Dimension
92(3.6")269.6(10.6")
241.3(9.5")
155.6(6.2")
84.8(3.34")
Unit: mm


120°120°
