Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Hikvision USA Inc.
Rev. 012815
Tel: 909.895.0400, sales.usa@hikvision.comFor more information: www.hikvision.com
908 Canada Court
City of Industry, CA 91748

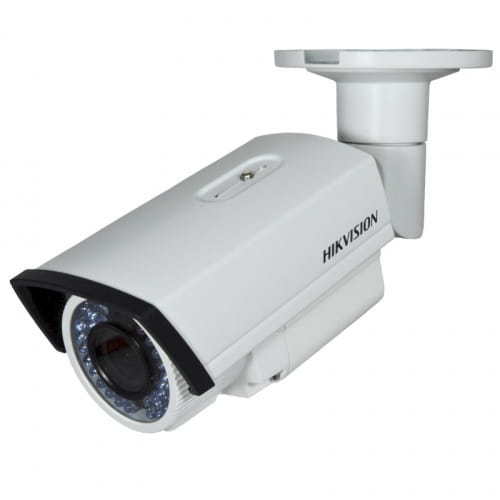

DS-2CE16C5T-VFIR3
HD720p Turbo HD Outdoor Vari-Focal IR Bullet Camera
• HD720P Video Output
• HD-TVI Standard Technology
• True Day/Night
• 2.8–12 mm Vari-Focal Lens
• OSD Menu, 3D DNR, Smart IR
• Up to 40 m IR Distance
• Superior Low Light Performance
• Up-the-Coax (UTC) OSD Menu Control

DS-2CE16C5T-VFIR3
Camera
Image Sensor1/3" progressive scan CMOS
Signal SystemNTSC
Effective Pixels1305 x 1049
Minimum Illumination0.0014 lux @ (f/1.4, AGC on)
Shutter SpeedNTSC: 1/60 sec. to 1/50,000 sec.
Lens2.8–12 mm, f/1.4
Angle of view: 78°–28°
Lens MountΦ14
Angle AdjustmentPan: 0–360°, tilt: 0–90°, rotation: 0–360°
Day/NightIR cut filter
SynchronizationInternal synchronization
Video Frame RateNTSC: 720p @ 60 fps
CVBS Output1 V p-p composite output (75Ω/BNC)
S/N RatioMore than 62 dB
Menu
Automatic ExposureGlobe AE/DWDR
AGCLow/Middle/High/Off
Slow ShutterSupported
White BalanceAuto/Manual
D/N ModeColor/BW/SMART IR
3D DNRLow/Middle/High/Off
Motion DetectionSupported, maximum 4 zones
Privacy Mask8, selectable color or mosaic
UTC FunctionSupported
Language English
FunctionDigital wide dynamic range, 3D digital noise reduction, sharpness, brightness,
digital zoom, mirror
General
Working Temperature/
Humidity
-30° C–60° C (-22° F–140° F)
Humidity 90% or less (non-condensing)
Power Supply12 VDC
Power ConsumptionMaximum 4 W
Weatherproof RatingIP66
IR RangeUp to 40 m IR range
CommunicationUp the Coax
Dimensions105 x 86.9 x 267.2 mm (φ4.13" x 3.42" x 10.52")
Weight1350 g (2.97 lbs.)
Key Features
DS-2CE16C5T-VFIR3
Dimensions
Accessories
Available Models
Indoor/Outdoor
Pole Mount
PM
Junction Box
CB130
Video Balun
DS-1H18

Unit: mm
