DS-2CE16D0T-IT1(6mm)

www.hikvision.com  146      DS-2CE16D0T-IT1/IT3/IT5  HD1080P EXIR Bullet Camera  DS-2CE16D0T-IT1, DS-2CE16D0T-IT3,  DS-2CE16D0T-IT5  Available Models  Dimension  • 2 Megapixel high-performance CMOS  • Analog HD output, up to 1080P resolution  • True Day/Night, Smart IR  • EXIR technology, up to 40m IR distance  • IP66 weatherproof  Key features    DS-2CE16D0T-IT1DS-2CE16D0T-IT3DS-2CE16D0T-IT5  Camera  Image Sensor  2MP CMOS Image Sensor  Signal System  PAL/NTSC  Effective Pixels 1920(H)*1080(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.hikvision.com
146


DS-2CE16D0T-IT1/IT3/IT5

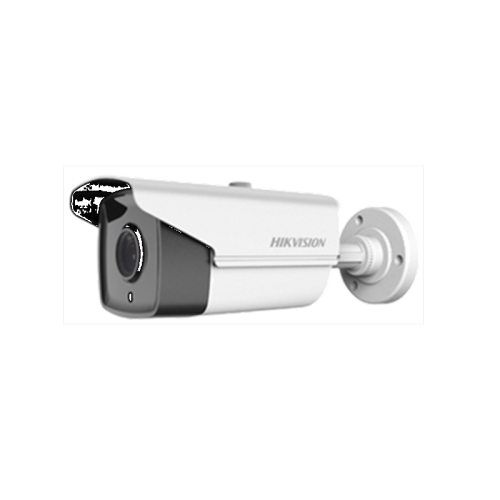

HD1080P EXIR Bullet Camera
DS-2CE16D0T-IT1, DS-2CE16D0T-IT3,
DS-2CE16D0T-IT5
Available Models
Dimension
• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• True Day/Night, Smart IR
• EXIR technology, up to 40m IR distance
• IP66 weatherproof
Key features

DS-2CE16D0T-IT1DS-2CE16D0T-IT3DS-2CE16D0T-IT5
Camera
Image Sensor
2MP CMOS Image Sensor
Signal System
PAL/NTSC
Effective Pixels 1920(H)*1080(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
2.8mm, 3.6mm, 6mm optional
3.6mm (2.8mm, 6mm, 8mm,
12mm, 16mm optional)
3.6mm (6mm, 8mm, 12mm,
16mm optional)
Angle of View: 103°(2.8mm),
82.2°(3.6mm), 54°(6mm)
Angle of View: 103°(2.8mm),
82.2°(3.6mm), 54°(6mm),
37.7°(8mm), 24.2°(3.6mm),
18.8°(6mm)
Angle of View: 82.2°(3.6mm),
54°(6mm), 37.7°(8mm),
24.2°(3.6mm), 18.8°(6mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
SynchronizationInternal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞ 62dB
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply12 VDC±15%
Power Consumption Max. 4W Max. 4W Max. 6W
Protection Level IP66
IR Range Up to 20m Up to 40m Up to 80m
Dimensions 86.22x82.05x220.13mm(3.39”x3.23”x8.67”)
Weight430 g (0.95 lb)
Accessories

X41T Camera
Tester

DS-1H18 Video
Balun
DS-1280ZJ-XS
Junction box
