DS-2CE16D0T-IT3F(3.6mm)

DS-2CE16D0T-IT3F  HD 1080p EXIR Bullet Camera    * 2 megapixel high performance CMOS  * Analog HD output, up to 1080p resolution  * Day/Night switch  * Smart IR  * Up to 40 m IR distance  * Switchable TVI/AHD/CVI/CVBS  * IP66    Key Features                      Specifications          Camera  Image Sensor 2MP CMOS image sensor  Signal System PAL/NTSC  Effective Pixels 1920 (H) x 1080 (V)  Min. illumination 0.01 Lux@(F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25 (1/30) s to 1/50,000 s  Lens  3.6 mm (2.8 mm, 6 mm, 8 mm, 12 mm, 16 mm optional)  Field of view: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm), 37.7° (8 mm), 24.2° (3.6 mm), 18.8° (6 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 analog HD output  S/N Ratio >62 dB  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)  Power Supply 12 V DC±15%  Power Consumption Max. 4 W  Protection Level IP66  IR Range Up to 40 m  Dime...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CE17D0T-IT3F(3.6mm)(????)

Ersatzproduktcode: 300512835

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE16D0T-IT3F

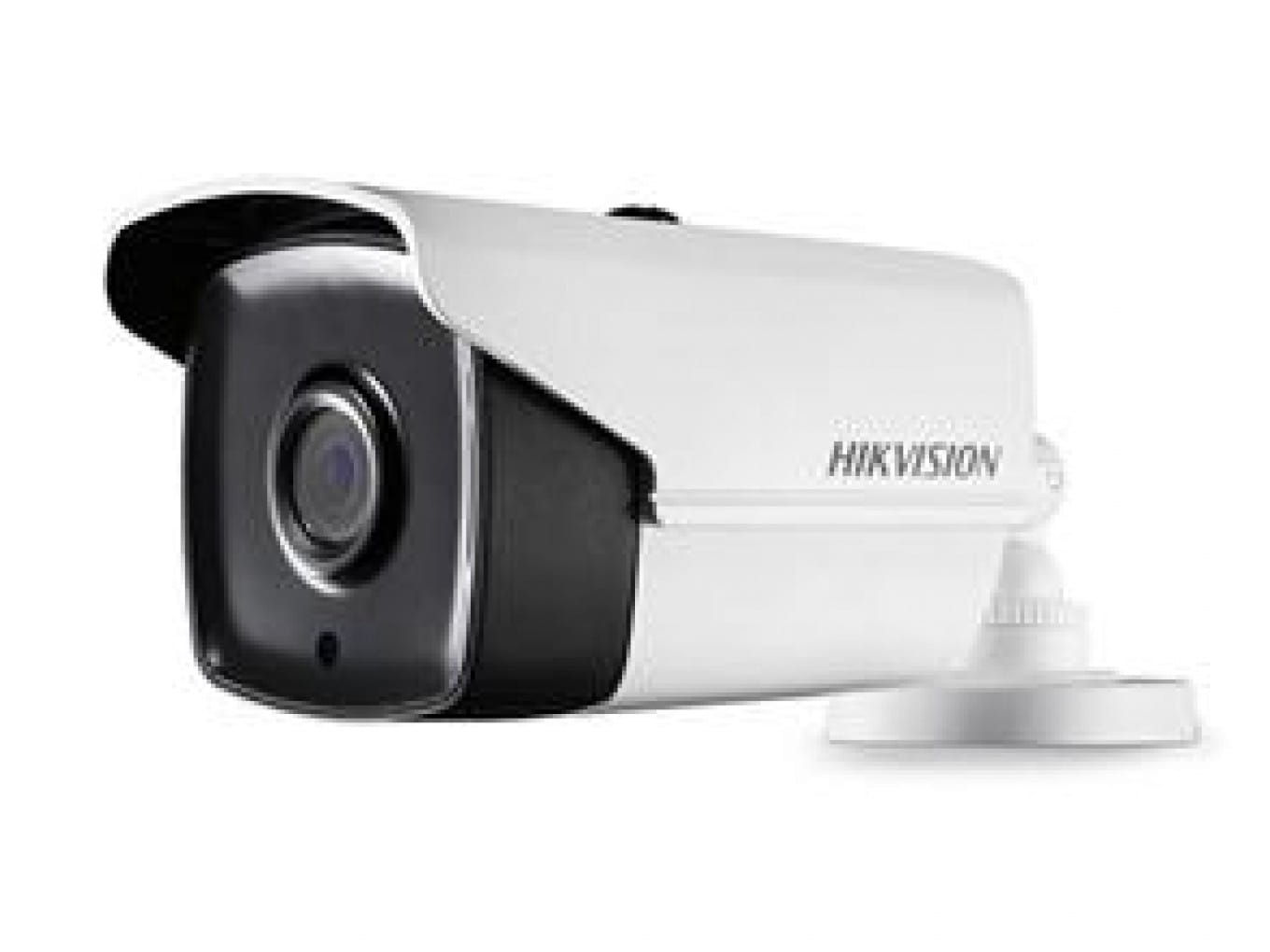

HD 1080p EXIR Bullet Camera

* 2 megapixel high performance CMOS
* Analog HD output, up to 1080p resolution
* Day/Night switch
* Smart IR
* Up to 40 m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66

Key Features










Specifications




Camera
Image Sensor 2MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1920 (H) x 1080 (V)
Min. illumination 0.01 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
3.6 mm (2.8 mm, 6 mm, 8 mm, 12 mm, 16 mm optional)
Field of view: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm), 37.7° (8 mm), 24.2° (3.6 mm), 18.8° (6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62 dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 40 m
Dimensions 86.7 mm x 81.6 mm x 226 mm (3.4" x 3.2" x 8.9")
Weight 430 g (0.95 lb.)

Order Model
DS-2CE16D0T-IT3F







226 mm (8.9")
86.7 mm (3.4")
8
1.
6

m
m

(
3
.
2
"
)
Φ 55 mm
(2.2")
3-Φ 4.2 mm
(0.17")
1
2
0

°

1
2
0

°



Accessories



DS-1280ZJ-XS
Junction Box
DS-1H18
Video Balun
X41T
Camera Tester





Dimensions

0100001061107
