DS-2CE16D0T-IT5E(8mm)

Key Features   2.0 megapixel high -performance CMOS   HD analog output, up to 1080p resolution   3.6 mm, 6 mm, 8 mm, 12 mm, 16 mm fixed focal lens   True Day/Night   EXIR 2.0, up to 8 0 m IR distance   IP 6 6   PoC.at   Up the Coax (HIKVISION - C)    DS-2CE16D0T-IT5E  HD 1080p PoC EXIR Bullet Camera          Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Effective Pixels 1920 (H) x 1080 (V)  Min. illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 3.6 mm, 6 mm, 8 mm, 12 mm, 16 mm ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 2.0 megapixel high -performance CMOS
 HD analog output, up to 1080p resolution
 3.6 mm, 6 mm, 8 mm, 12 mm, 16 mm fixed focal lens
 True Day/Night
 EXIR 2.0, up to 8 0 m IR distance
 IP 6 6
 PoC.at
 Up the Coax (HIKVISION - C)

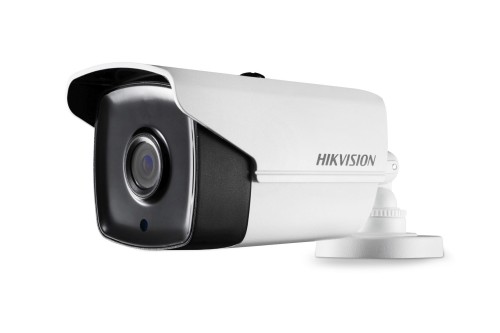

DS-2CE16D0T-IT5E
HD 1080p PoC EXIR Bullet Camera




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Effective Pixels 1920 (H) x 1080 (V)
Min. illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 3.6 mm, 6 mm, 8 mm, 12 mm, 16 mm fixed focal lens
Horizontal Field of View 82.63° (3.6 mm), 54.38° (6 mm), 37.96° (8 mm), 24.36° (12 mm), 18.92° (16 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan : 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Synchronization Internal synchronization
S/N Ratio > 62 dB
Interface
Video Output 1 HD analog output/ 1 Vp -p composite output (75 Ω /BNC)
General
Operating Conditions - 40 °C to 60 °C ( - 40 °F to 140 °F) , humidity : 90% or less (non -condensation )
Power Supply 12 VDC±30%/PoC.at
Power Consumption Max. 5 W
Ingress Protection IP6 6
Material Metal & Plastic
IR Range Up to 80 m
Communication U p the coax, Protocol: HIKVISION - C (TVI output)
Dimensions 86.7 mm x 81.6 mm x 226 mm (3. 4" x 3.2 " x 8. 9" )
Weight Approx. 430 g (0.95 lb)
Specification



Order Models
DS-2CE16D0T-IT5E

Dimension

226 mm (8 .9")
86.7 mm (3.4 ")
81.6 mm (3.2")
Φ 55 mm
(2. 2")
3-Φ 4 .2 mm
(0.17 ")
120 °
120 °

Accessory

DS -1280ZJ - X S
Junction Box

DS -1H18
Video Balun









010000170317
